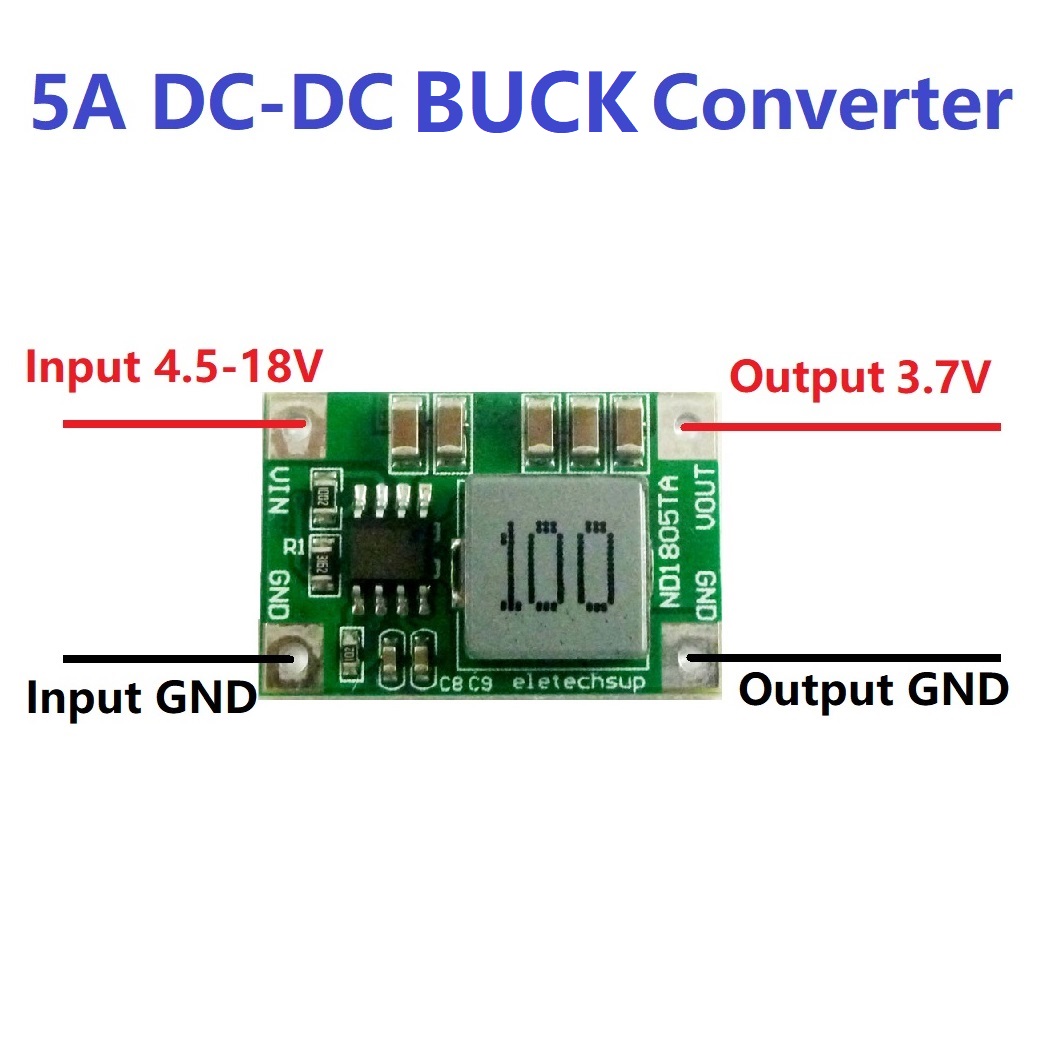

ND1805TA 5A Buck DC-DC Converter Module 4.5V-18V To 3.7V Board For lm2596 lm317 nodemcu raspberry pi 4 led matrix

ND1805TA 5A Buck DC-DC Converter Module 4.5V-18V To 3.7V Board For lm2596 lm317 nodemcu raspberry pi 4 led matrix

  • Model: ND1805TA_3V7
  • Availability: In stock
  • Weight: 0.003Kg
$1.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns

Product Name: 5A Buck DC-DC Converter Module 4.5V-18V To 3V 3.3V 3.7V 4.2V 5V 6V Board For lm2596 lm317 nodemcu raspberry pi 4 led matrix

Packing list:

1 PCSND1805TA 5A DC DC Step-Down Buck Converter Module 4.5V-18V to 3V/3.3V/3.7V/4.2V/5V/6V


Description:


3V :Input voltage 4.5~18V,output 3V

3.3V :Input voltage 4.5~18V,output 3.3V


3.7V :Input voltage 4.5~18V,output 3.7V

4.2V :Input voltage 4.5~18V,output 4.2V

5V :Input voltage 6~18V,output 5V

6V :Input voltage 7~18V,output 6V

Maximum output current 4A,Short time maximum output current 5A

DC-DC Step-Down Converter module working frequency 500KHz. efficiency is 77-93% .

Quiescent current: 16-18mA

External soft start, Thermal shutdown, Under-Voltage Lockout (UVLO), Cycle-by-Cycle Over Current Protection, and short circuit protection.

Operating Temperature :–40°C to +85°C

Size : 27 x 18 x 5mm

Weight : 4g



Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself


Applications:

DC motor power supply
WIFI Router Switch
Network equipment
Multimeter instrumentation
CCTVcamera
Electric toys
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
FM radio
Battery powered equipment
Audio amplifier
