N46IB02 4-20MA To RS485 2 CH DC 12V 0-25MA Analog Acquisition Module 12Bit ADC Board Modbus RTU PLC

N46IB02 4-20MA To RS485 2 CH DC 12V 0-25MA Analog Acquisition Module 12Bit ADC Board Modbus RTU PLC

  • Model: N46IB02_B
  • Availability: In stock
  • Weight: 0.005Kg
$3.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns

Product Name: 4-20MA To RS485 2 CH DC 12V 0-25MA Analog Acquisition Module 12Bit ADC Board Modbus RTU PLC



Package inlcuded:
  1 x N46IB02 8-25V 2 CH 0-25MA Current analog acquisition RS485 module

Description:

1: Operating Voltage : DC 8-25V(DC 9V 12V 15V 24V)
2: Operating Current : 9-13MA

3: MODBUS RTU Command support 03 06 function code
4: IN1/IN2 channel current measurement range is 0-25MA(for 0-20MA/4-20MA)
5: Current resolution is 0.1MA, measurement accuracy is 1%; if the error is greater than 1%, it can be calibrated
6 :MODBUS commands can be made serial HyperTerminal (serial assistant) OR PLC Enter;
7 :Under the MODBUS command mode, it can support up to 247 devices in parallel

8 :Size: 30 * 15 * 4.3mm(no PIN)

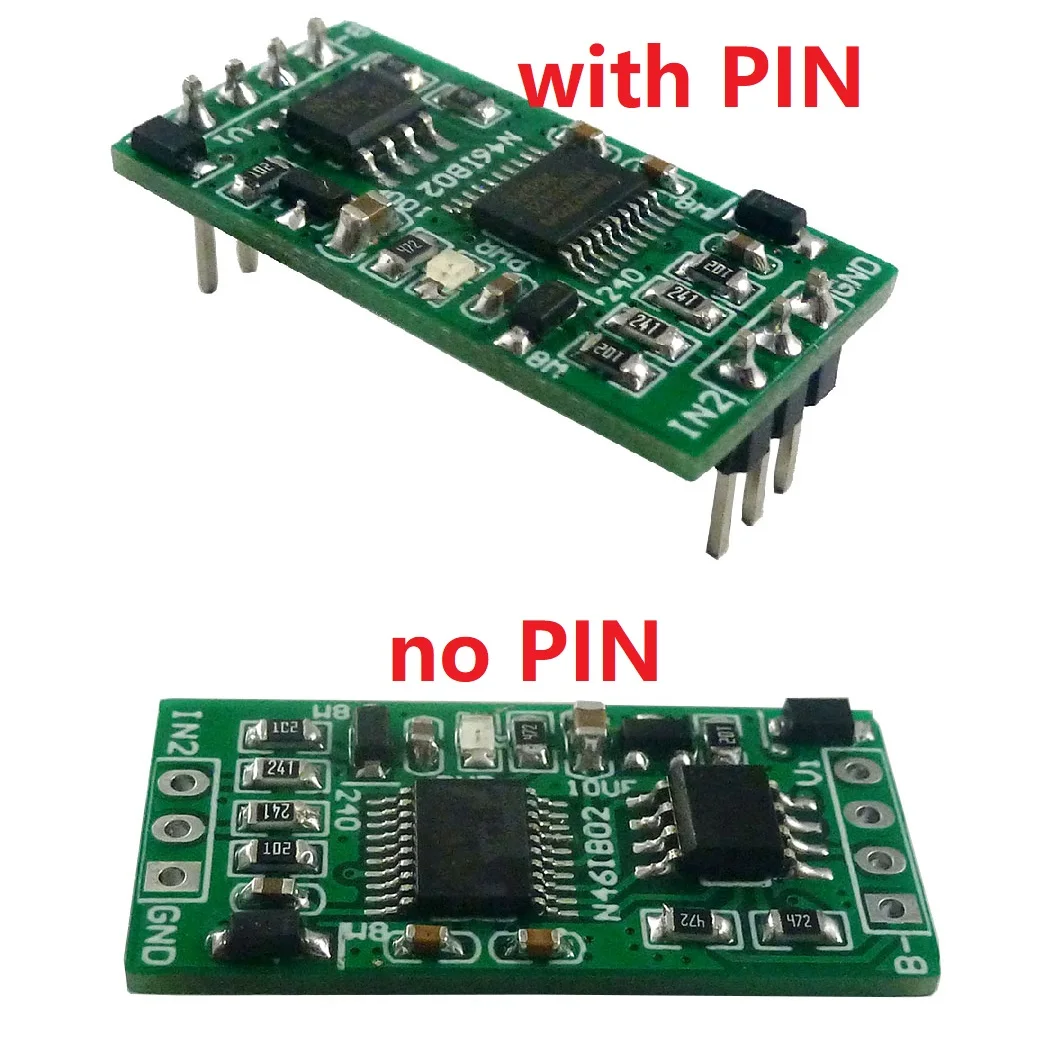

9 :Weight: 1.7g(no PIN),2.2g(with PIN)

Instruction manual Please ask us after the purchase

Application
4-20MA/0-20MA Sensor
0-25MA Current analog acquisition
Automated industry PLC
Smart Home,Home Automation ;
Identification system;
RS485 Remote monitoring;
Multimeter voltmeter

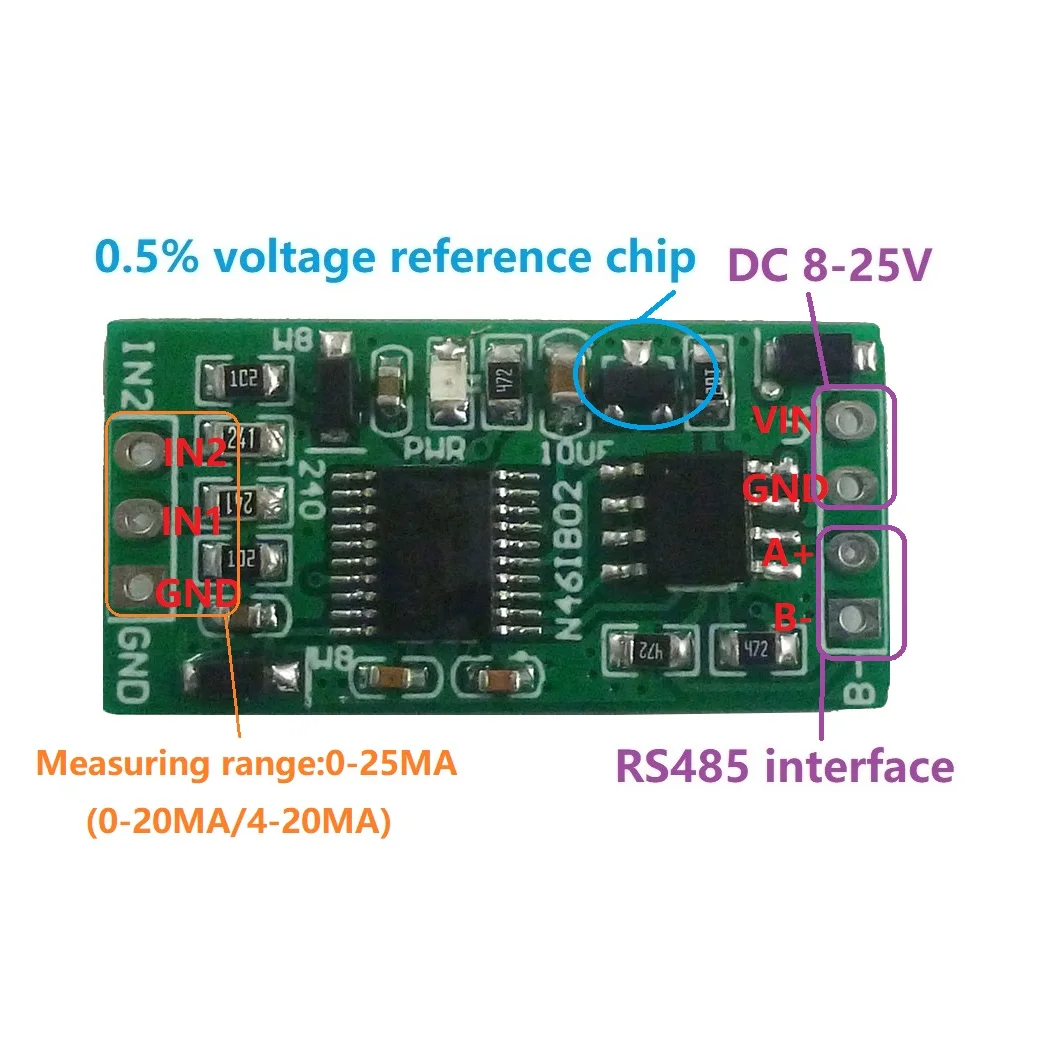

Interface introduction




Wiring diagram


Slave ID: Different ''Sliver ID'' can be set by command, the maximum number is 247
Under the MODBUS command mode,the slave ID must be correct
Command Description, Please refer to '' N4AIA04 modbus rtu protocol ''
