1 Pcs DNESP82 DIN PinBoard for ESP8266 NodeMcu Lua WIFI (only board or with shell)
(does not include the NodeMcu Lua module)
Illustrate:
Terminal spacing: 3.96mm.
Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.
Size: 60*72 * 8mm(only Board);63*85 *37mm(with Rail Box)
Weight: 30g(only Board),84g(with Rail Box)
Use:

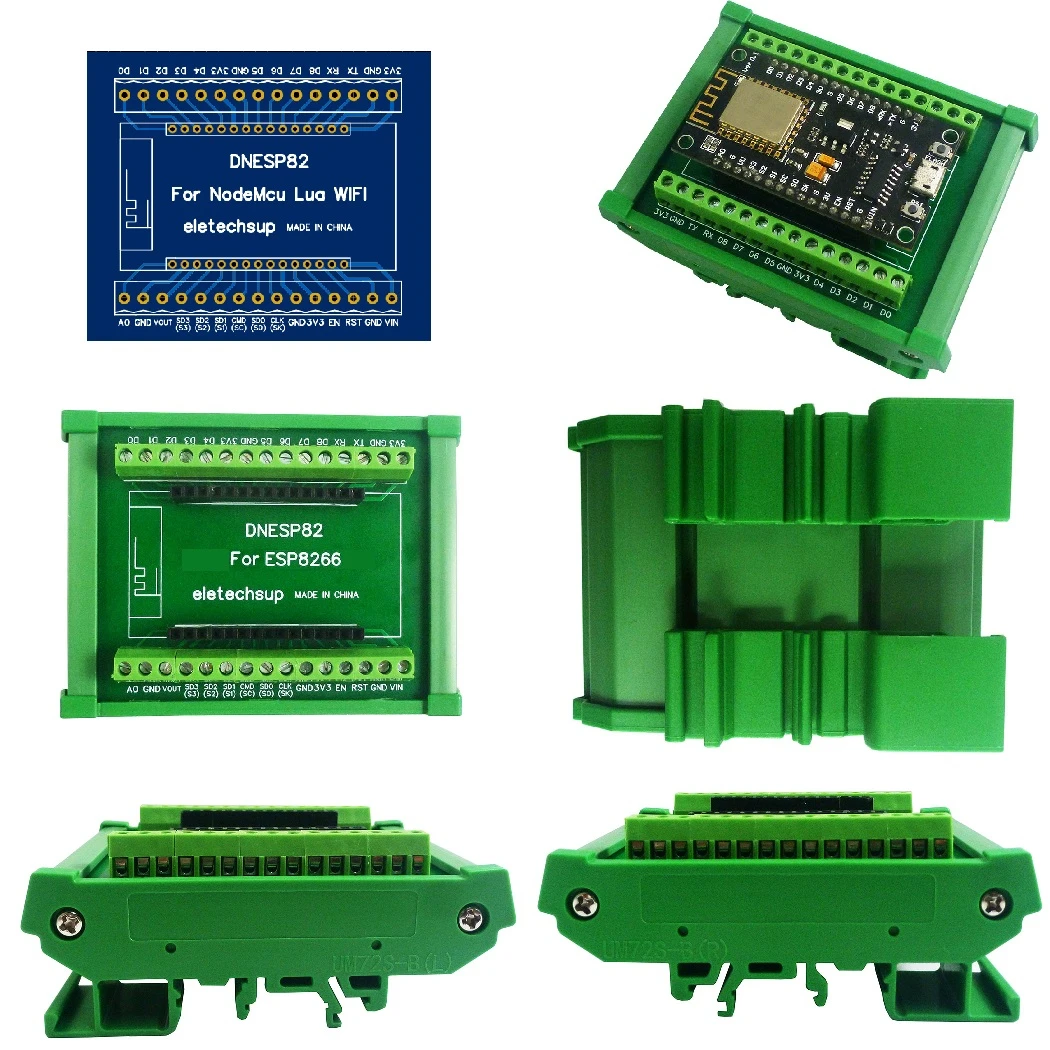

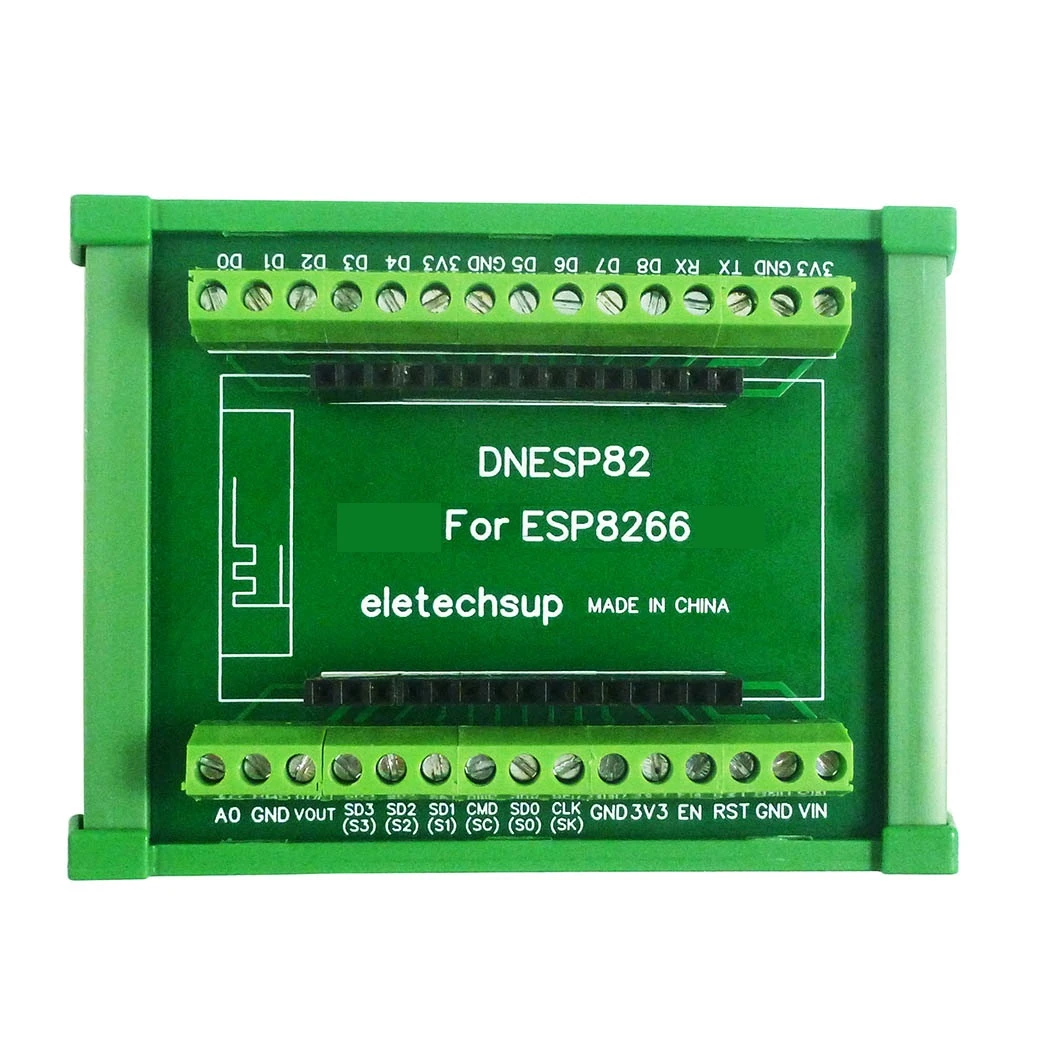

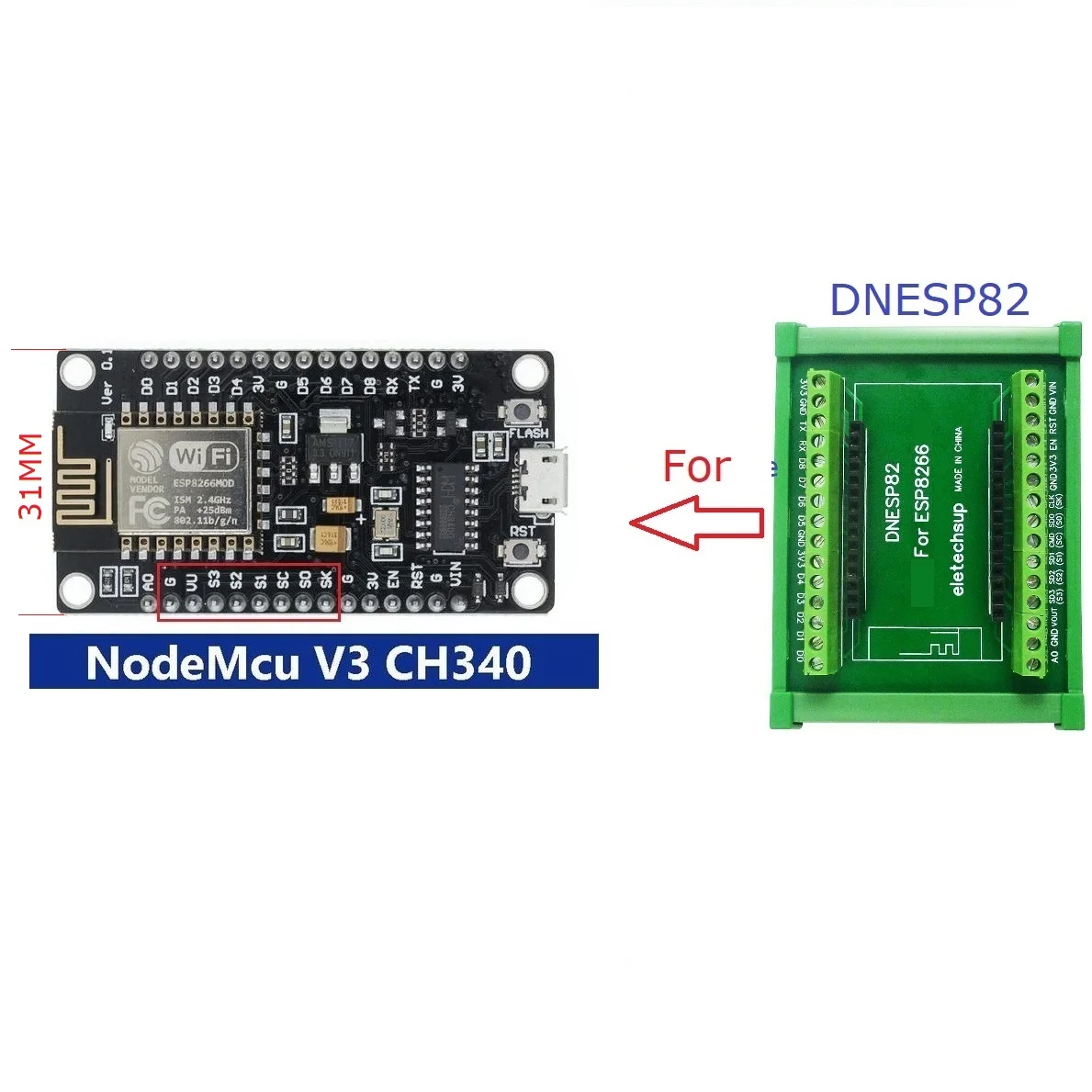

DIN Rail Mount Screw Terminal Adapter Module for ESP8266 NodeMcu Lua WIFI Internet V3 CH340 Development Board.
With this adapter modules, you can easily extend your NodeMcu V3 CH340 projects to industrial control applications.
Notice:
This product does not include the NodeMcu ESP8266 Board

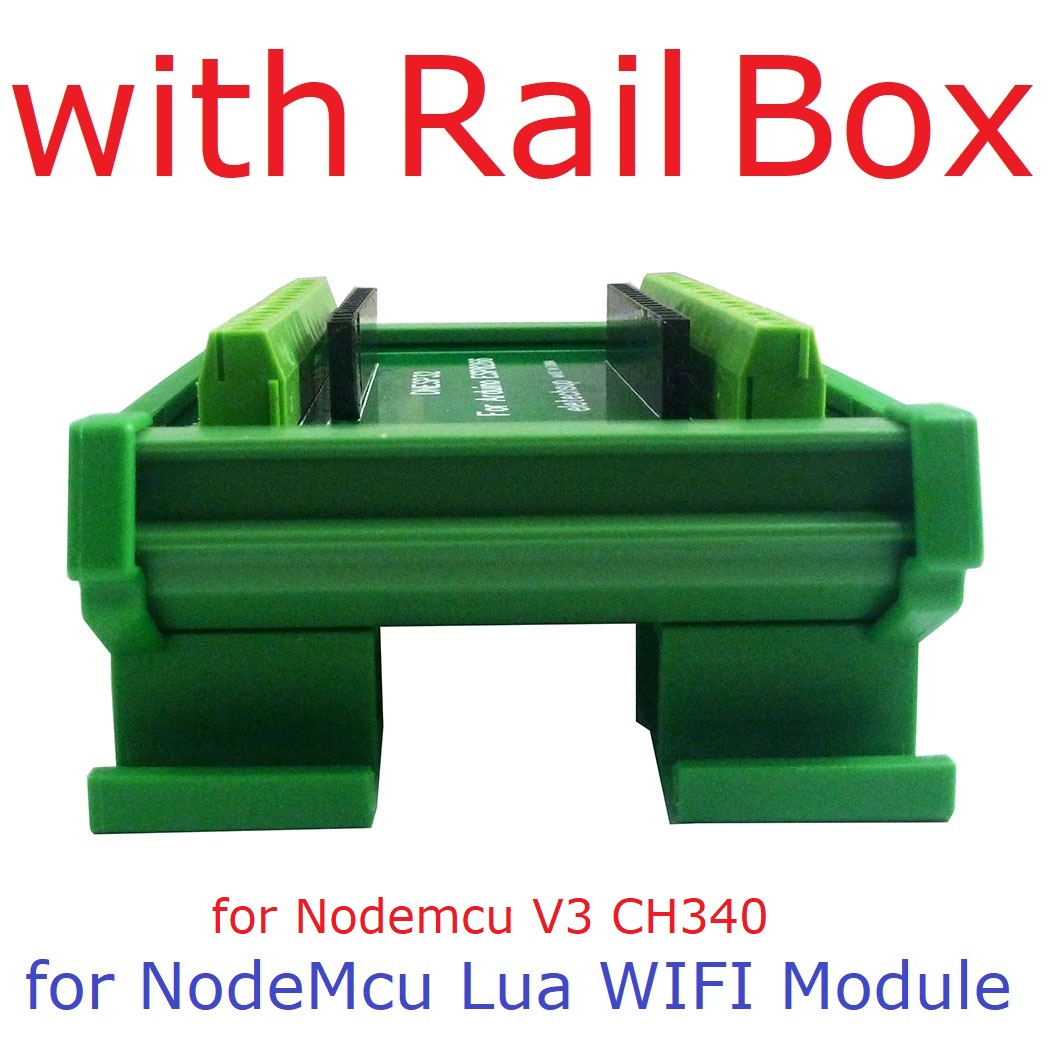

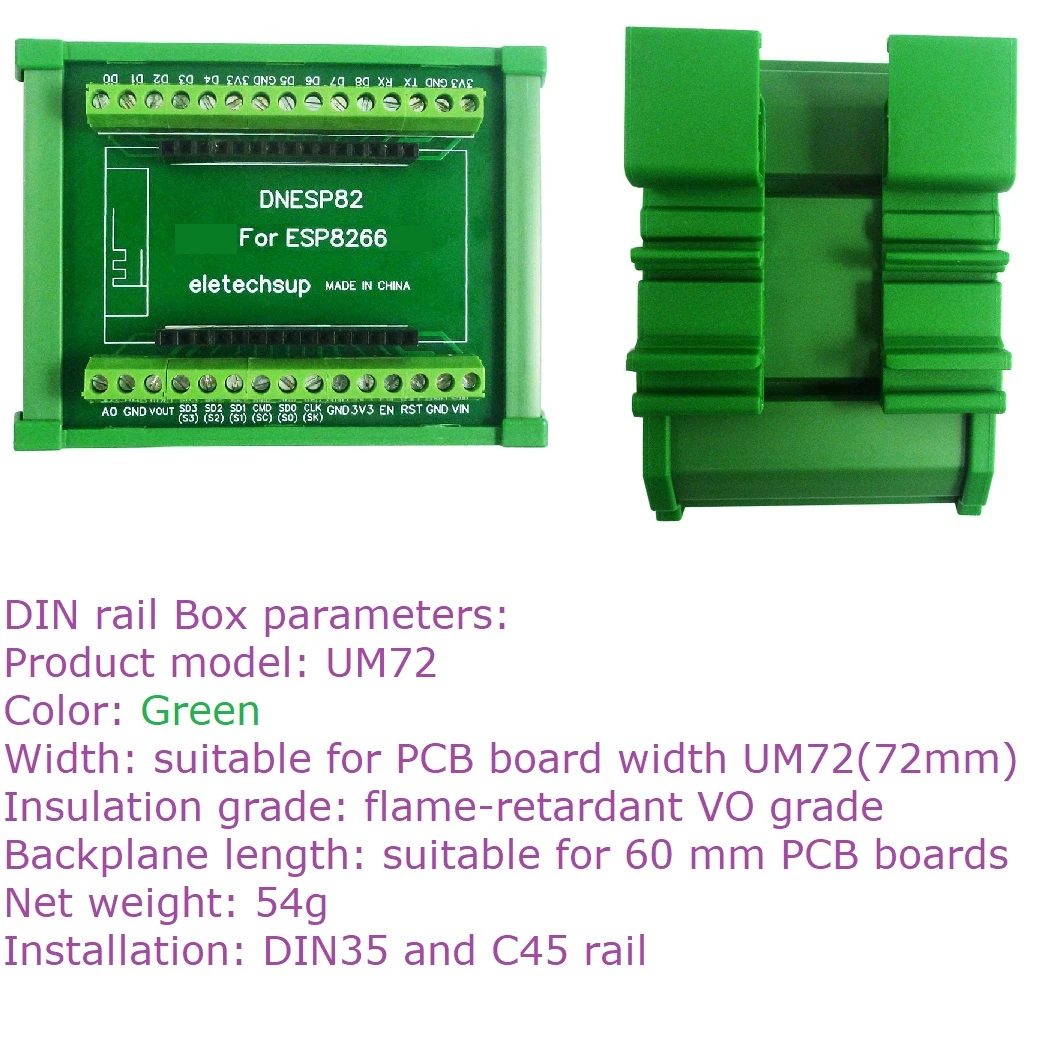

DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 60 mm PCB boards
Net weight: 54g
Installation: DIN35 and C45 rail
