433M 2CH RF Module GSM PSTN Wireless Home Security Alarm Burglar System Arduino

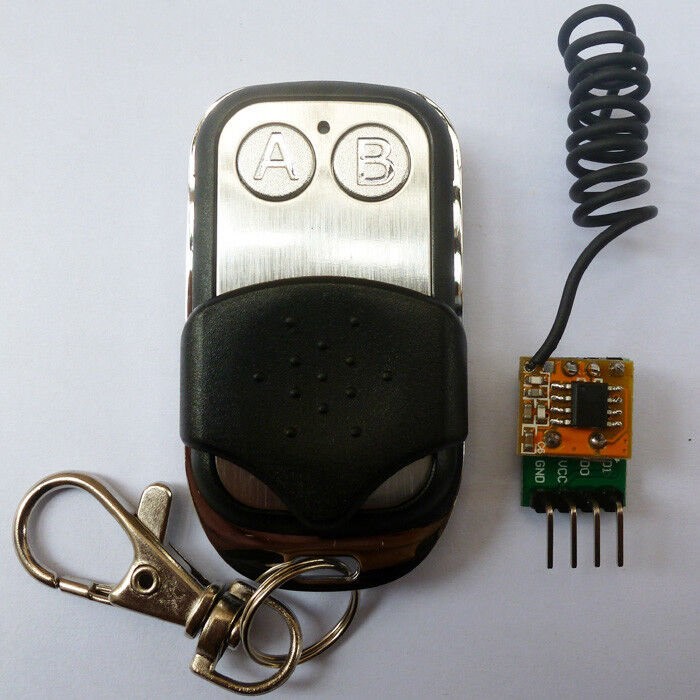

Qty: 1 PCS 2channel receiver module and 1 pcs transmitter remote . (This remote doesnot have a battery inside )



Typical Applications :
Model airplane;
Car Security System;
Garage Door Controller;
Remote Control Fan;
Home Security/Automation System;
Remote Control Toys;
GSM/PSTN Alarm ;

Receiver Modules No: CE001;


Dimension:
Size (LxWxT): 17 * 12 * 9mm;
Weight: 2g (not including antenna) , 3g (including the antenna);
Very small and light Receiver Module(Use Model airplane Model car is Perfect!)

Specifications:

Operating voltage

5.0VDC ±0.5V

 Working priceple

 can work with transmitter signal from PT2262 SC2262 EV1527 PT2264 PT2260

Operating frequency

433MHz
 Receiver Sensivity  -107dBm

modulation Mode

ASK/OOK

Operating temp.

-10 °C ~ +60 °C
Antenns length
20 cm (315 MHz), 18 cm (433.92 MHz)

Output signal

2 Channels output , TTL level ,

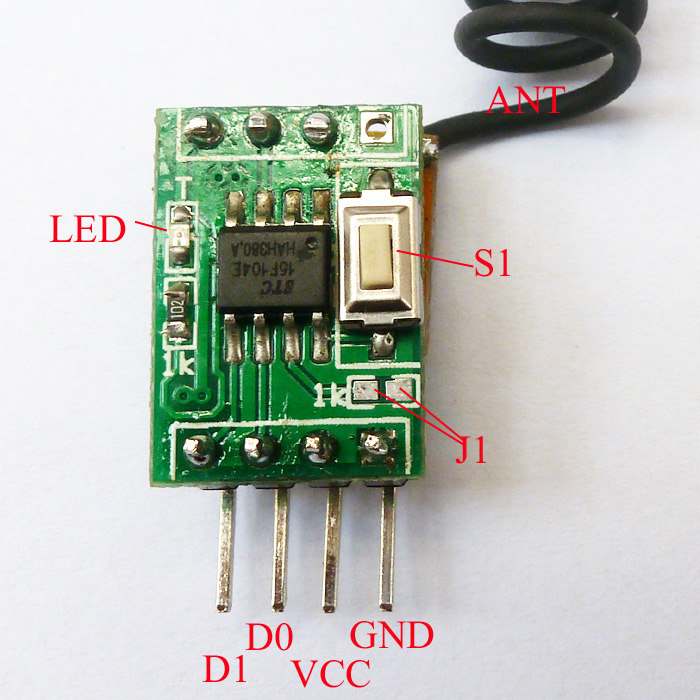

Pin assignment :
GND: Connect to Ground ;
VCC: Positive Power Supply DC 5V (range 4.5 ~ 5.5V);
D0 channel :  0 output. Sink current up to 20MA, pull current 270UA ;
D1 channel :  1 output. Sink current up to 20MA, pull current 270UA ;


Output pin connection :



User guide :

Delete Memory :
Keep press S1 button , LED is on and off after 8 second , then it mean Deleting successfully ;

Learing to Memory :
(1): Press S1 button until LED is on , release S1 button ,  this receiver enter program status ;
(2): press " button 1 " on the remote, LED blink quickly , it mean "button 1" was memoried by channel "D0" ;
(3): press " button 2 " on the remote, LED blink quickly , it mean "button 2" was memoried by channel "D1" ;
Note
The learning process must be completed within the 10 second, or it will automatically quit program status ;
How to quit program status while in program status :
(1) Keep pressing S1 button , it will quit program status when LED is off ;
(2) Don't press any thing and it will auto quit program status ;

Output mode :

A.singnal Non-locking (Momentary)----Disconnect J1 (defult is Momentary) ;

B.singnal Self-locking (Toggle) ---- connect J1;

Momentary------------Press the Transmitter button A, the receiver relay A is ON, release button A; the receiver relay A is OFF, the same as B/C/D ,Every channel is Independent ;

Toggle-------------------Press transmitter button A for 1 time , the receiver relay A is ON, press button A again, the receiver relay A is OFF, the same as B/C/D. Every channel is Independent ;

Transmitter remotes:
Transmitter Module No.: YK004 -4 4 Bottons







Technical Data :
Transmitter Module No.: YK004 -4 4 Chanels
 Power supply : 12V 27A battery  replacable .(This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 12mA;
Oscillation mode: SAW resonator;
Modulation mode:ASK;
Operating frequency:433.92MHz ,Special frequency can be customized;
Frequency deviation:±0.2MHz;
Encoding format: Learning Code ( EV1527 ) ;
Transmit power:10 mW.
Data Rate : 50~60KHZ;
