RFT1C04 Transmitter for RFR1A04 Receiver 4CH AES128 Encryption Codec Remote Control Module 433M Superheterodyne Transceiver replace PT2262 EV1527 HC301

RFT1C04 Transmitter for RFR1A04 Receiver 4CH AES128 Encryption Codec Remote Control Module 433M Superheterodyne Transceiver replace PT2262 EV1527 HC301

  • Model: RFT1C04_noPin
  • Availability: In stock
  • Weight: 0.008Kg
$5.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns



Product Name: 4CH AES128 Encryption Codec Remote Control Module 433M Superheterodyne Transceiver replace PT2262 EV1527 HC301


Package inlcuded(It is recommended to choose to buy a kit):

Description:

RFR1A04 Decoder Receiver:
Working voltage: DC 3-5V;
Working current: standby current is about 8mA (DC 3.3V);
Working mode: Non-locking, Self-locking, Inter-locking ,Delay 10 seconds;
Decoding method: AES-128 decoding;
Working principle: Superheterodyne Reception;
Receive mode: ASK/OOK;
Working frequency: 433.92mhz;
Receive sensitivity: -108dbm;
Remote control distance: 30-40 meters (Stretch the antenna,Transmitter is RFT1C04/RFT2D04)
Output level: 3-5V TTL level, maximum current 20MA (to add current limiting resistor);
Decoding type: learning code, used with RFT1C04, RFT2D04 remote control, can store up to 32 remote control keys;
Size: 29x18x10mm;
Weight: <=3 grams.

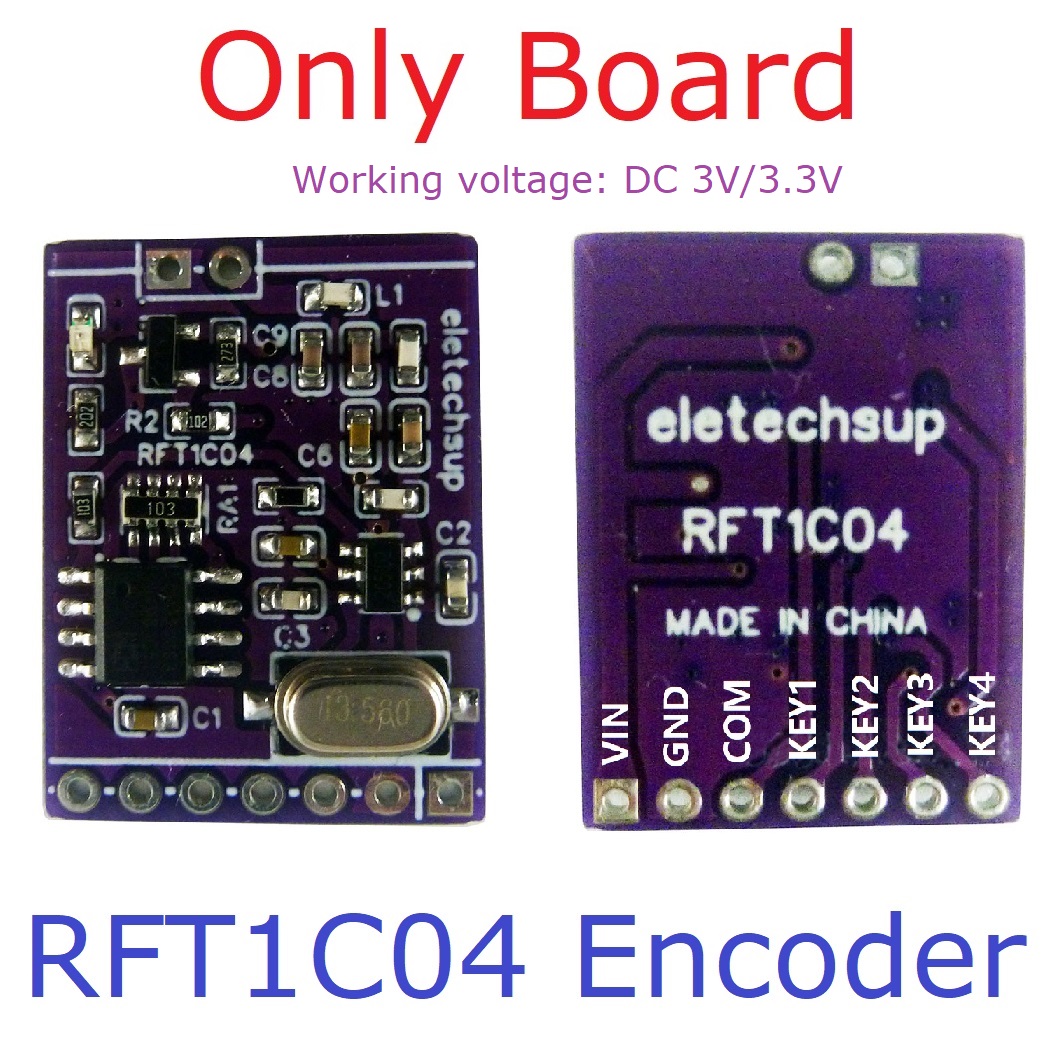

RFT1C04 Encoder Transmitter:
Operating voltage: DC 3V~3.6V (3.3V recommended);
Operating current: Transmitting Current <=15mA (Antenna and power supply both affect the transmit current), Standby current 100nA(0.1uA);
Encoding method: AES 128 encoding;
Modulation method: ASK/OOK;
transmit power: <= 12dBm (both antenna and power supply affect transmit power);
transmitting frequency: 433.92MHz;
Remote control distance: 40-50 meters (Stretch the antenna,Receiver is RFR1A04/RFR2B04)
Operating temperature: -40℃~85℃;
Dimensions: 24.3x18.2x4mm;
Weight: <=2g.


Note:
The working voltage of the receiver is DC 3-5V;
The working voltage of the transmitter is DC 3-3.5V


For more information, please contact me










Product Name: 4CH AES128 Encryption Codec Remote Control Module 433M Superheterodyne Transceiver replace PT2262 EV1527 HC301


Package inlcuded(It is recommended to choose to buy a kit):

Description:

RFR1A04 Decoder Receiver:
Working voltage: DC 3-5V;
Working current: standby current is about 8mA (DC 3.3V);
Working mode: Non-locking, Self-locking, Inter-locking ,Delay 10 seconds;
Decoding method: AES-128 decoding;
Working principle: Superheterodyne Reception;
Receive mode: ASK/OOK;
Working frequency: 433.92mhz;
Receive sensitivity: -108dbm;
Remote control distance: 30-40 meters (Stretch the antenna,Transmitter is RFT1C04/RFT2D04)
Output level: 3-5V TTL level, maximum current 20MA (to add current limiting resistor);
Decoding type: learning code, used with RFT1C04, RFT2D04 remote control, can store up to 32 remote control keys;
Size: 29x18x10mm;
Weight: <=3 grams.

RFT1C04 Encoder Transmitter:
Operating voltage: DC 3V~3.6V (3.3V recommended);
Operating current: Transmitting Current <=15mA (Antenna and power supply both affect the transmit current), Standby current 100nA(0.1uA);
Encoding method: AES 128 encoding;
Modulation method: ASK/OOK;
transmit power: <= 12dBm (both antenna and power supply affect transmit power);
transmitting frequency: 433.92MHz;
Remote control distance: 40-50 meters (Stretch the antenna,Receiver is RFR1A04/RFR2B04)
Operating temperature: -40℃~85℃;
Dimensions: 24.3x18.2x4mm;
Weight: <=2g.


Note:
The working voltage of the receiver is DC 3-5V;
The working voltage of the transmitter is DC 3-3.5V


For more information, please contact me
