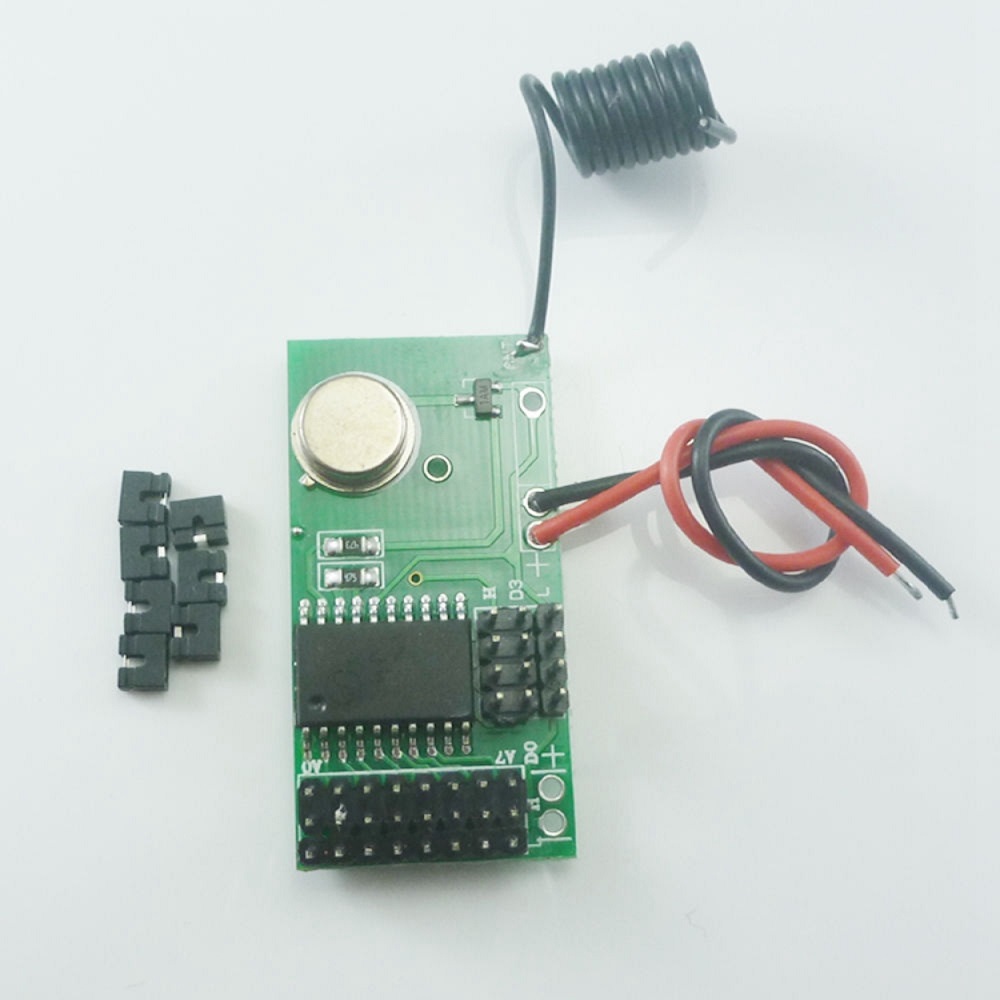

TD003 433MHz SC2262 PT2262 PT2264 ASK Encoders RF Radio Wireless Transmitter Modules

TD003 433MHz SC2262 PT2262 PT2264 ASK Encoders RF Radio Wireless Transmitter Modules

  • Model: TD003
  • Availability: In stock
  • Weight: 0.012Kg
$3.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns



Model No. TD003
Function discription Encoder Transmitter modules
Operating voltage
5V ~ 12V DC (recommand in 12V , best performance )
Static current
max≤10mA(12V), min≤4mA(5V)
Operating frequency 433MHz
modulation Mode ASK/OOK
SAW Frequency stability ±150kHz(max)
RC Resistance  4.7M
Transmitter Power 50mW(315MHz, 12V)
Data rate ≤10Kbps
Antenns length 24 cm (315 MHz),
Dimension 40mm*20mm*10mm
Encodeing format SC2262 fixing code (same as PT2262 PT2264) ,Work with PT2272 PT2264 decoder IC
Transmitter distance 500-100M (open area)

Model No. TD003
Function discription Encoder Transmitter modules
Operating voltage
5V ~ 12V DC (recommand in 12V , best performance )
Static current
max≤10mA(12V), min≤4mA(5V)
Operating frequency 433MHz
modulation Mode ASK/OOK
SAW Frequency stability ±150kHz(max)
RC Resistance  4.7M
Transmitter Power 50mW(315MHz, 12V)
Data rate ≤10Kbps
Antenns length 24 cm (315 MHz),
Dimension 40mm*20mm*10mm
Encodeing format SC2262 fixing code (same as PT2262 PT2264) ,Work with PT2272 PT2264 decoder IC
Transmitter distance 500-100M (open area)
