RF35A04 4 Channels Wireless Bidirectional Remote Control 24V 868M Controller Feedback AES Rolling Code for Gating Crane Garage Door Industrial Manufacturing

RF35A04 4 Channels Wireless Bidirectional Remote Control 24V 868M Controller Feedback AES Rolling Code for Gating Crane Garage Door Industrial Manufacturing

  • Model: RF35A04_24V_868M
  • Availability: In stock
  • Weight: 0.17Kg
$29.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns

Purchase Notes: The remote control handle and controller are purchased together, they cannot be used separately.

Description:

This is a two-way wireless remote control switch with feedback function. The LED on the remote control can remotely check the status of the relay on the receiver at any time, without having to go to the scene to check whether the device is ON/OFF.

By setting different communication channels via DIP switches, up to 64 groups of wireless controllers can work simultaneously without interfering with each other.

The remote control code is rollingly transmitted through AES coding, so there is no need to worry about the remote control code being stolen, and it can be used as a reliable anti-theft wireless key.


Please contact me for detailed instructions!

RC45B04 Remote Handle :

1Working voltage : 2.9V~3.3V

(The remote control handle does not come with AA batteries, you need to bring your own)
​2 Transmitting power : 20dBm
3 Transmitting Current: 77mA
4 Receiving current :About 11mA
5 Receive sensitivity -111dBm
6 Reference distance:1000M
7 Modulation method: FSK/GFSK
8 Encryption method : AES128 and rolling code encryption

9 DIP switch: Set the working frequency band
10 Wireless Frequency : 433~464.5MHz(433 Version) /868~899.5MHz(868 Version)
11 Size : 122x46x26mm(without antenna)
12 Weight : 48 grams(without antenna)

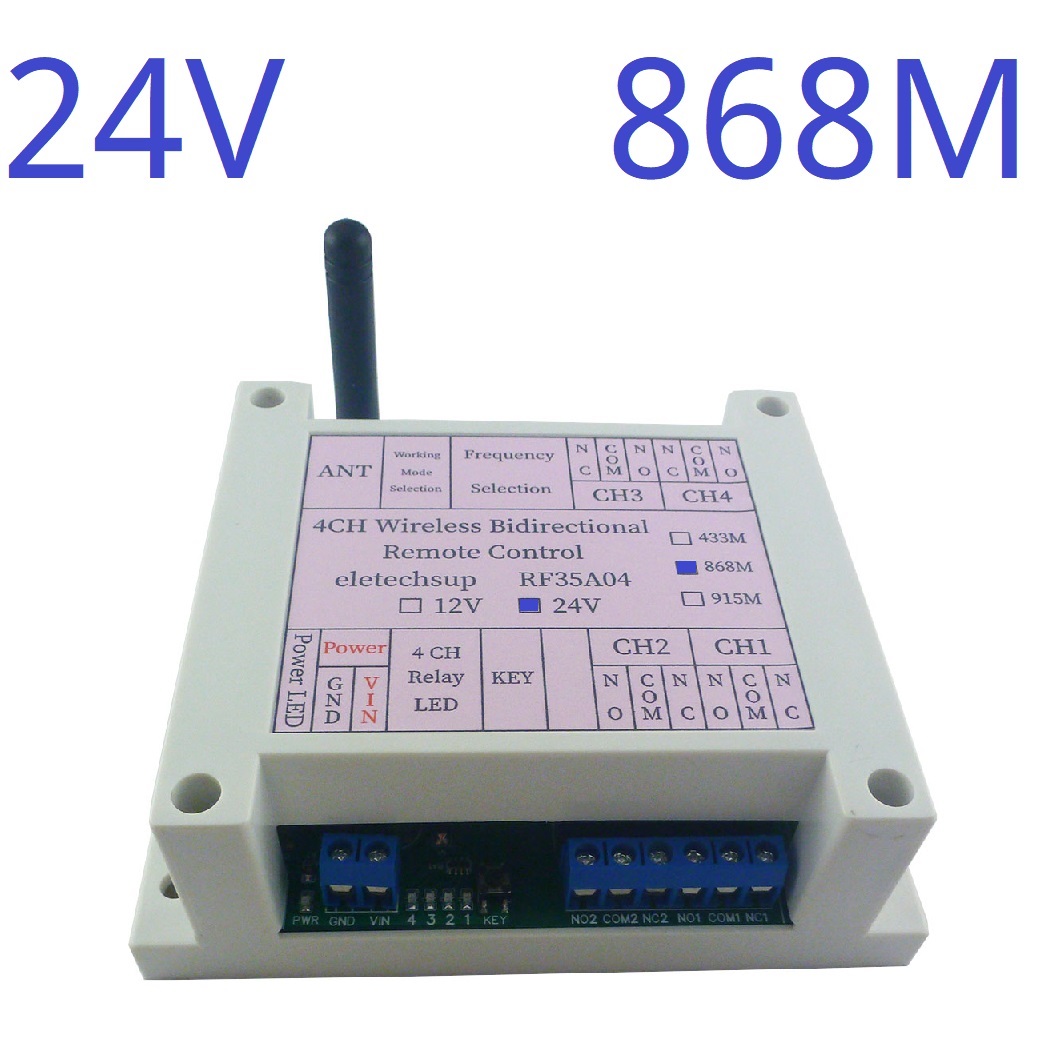

RF35A04 Receive Controller:

1Working voltage : 12V/24V
2 Working current: 8-150mA
​3 Transmitting power : 20dBm
4 Transmitting Current: 77mA
5 Receive sensitivity -111dBm
6 Reference distance:1000M
7 Modulation method: FSK/GFSK
8 Encryption method : AES128 and rolling code encryption
9 DIP switch: Set working frequency band/working mode
9 Wireless Frequency : 433~464.5MHz(433 Version) /868~899.5MHz(868 Version)
10 Working mode : Momentary/Self-locking/Interlocking/Interlocking(2CH)
11 Relay load current : 10A
12 Size : 115x90x40mm
13 Weight : 158 grams
