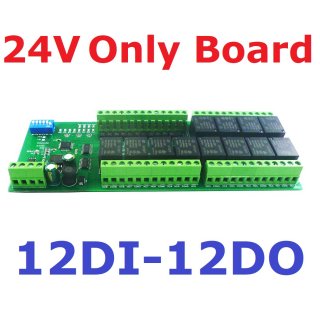

10IOA12 24V 12CH Isolation Digital Switch 12DI-12DO PLC IO Expanding Board RS485 Relay Module Modbus RTU Code 01 05 15 02 03 06 16

10IOA12 24V 12CH Isolation Digital Switch 12DI-12DO PLC IO Expanding Board RS485 Relay Module Modbus RTU Code 01 05 15 02 03 06 16

  • Model: 10IOA12_24V_R
  • Availability: In stock
  • Weight: 0.34Kg
$28.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name: DC 12V 1-12CH Isolation Digital Switch DI-DO PLC IO Expanding Board RS485 Relay Module Modbus RTU Code 01 05 15 02 03 06 16













Package inlcuded:




1PCS 12V
DC 1/2/4/8/12 Channel DI-DO Modbus RTU RS485 Relay Module










Description:

1:DC 12V (24V Version Click here: Click here)

2.Standby current (all relays closed) 13MA, 1 relay open 40MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 122MA,5 relays open 149MA,6 relays open 174MA, 7 relays open 200MA,8 relays open 226MA

3:1/2/4/8/12 photoelectric isolation Input ports (NPN low level active ).

The input-output relationship can be set to various association modes through instructions(Self-lockingdefault)/Interlocking/Momentary/Interlocking/Output=Input)

4: Support standard Modbus RTU command, function code, write 05/06/15/16 read 01/02/03

5: With hardware reset function, with TVS anti-surge protection

1/2/4/8/12 opto-isolated inputs (NPN),1/2/4//12relay outputs (upgraded relays, more durable)

7 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll''Enter;

8 Under the MODBUS command mode, it can support up to 64 devices in parallel

9 The default baud rate is 9600BPS. The baud rate can be selected by Conmand 2400 4800 9600 19200 38400 57600 115200BPS

10 The parity can be none parity, even parity and odd parity

11 The data sending and returning time can be set,with a maximum value of 1000ms


12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

1 Channel
Size: 45 * 72 * 19mm(Only PCB Board);47 * 82*40mm(with Din Rail Box)
Weight: 33g(Only PCB Board);75g(with Din Rail Box)

2 Channels
Size: 60 * 72 * 19mm(Only PCB Board);62 * 82*40mm(with Din Rail Box)
Weight: 48.5g(Only PCB Board);100g(with Din Rail Box)

4 Channels
Size: 93 * 72 * 19mm(Only PCB Board);95 * 82*40mm(with Din Rail Box)

Weight: 80.6g(Only PCB Board);150.7g(with Din Rail Box)

8 Channels
Size: 136 * 72 * 12mm(Only PCB Board);138 * 82*40mm(with Din Rail Box)
Weight: 143g(Only PCB Board);239g(with Din Rail Box)

12 Channels
Size: 188 * 72 * 12mm(Only PCB Board);190 * 82*40mm(with Din Rail Box)
Weight: 206g(Only PCB Board);330g(with Din Rail Box)

Upgraded Features:

MODBUS RTU Function Code 01 05 15 02 03 06 16

Support more input-output relationships

Support more baud rates, can modify the parity bit

Hardware reset to factory settings (RESET jumper)

Upgraded relays (more durable)

TVS anti-surge protection


For more information, please contact me

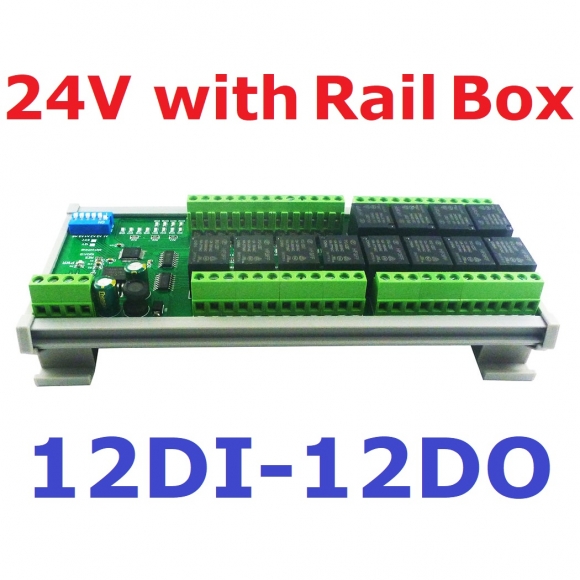

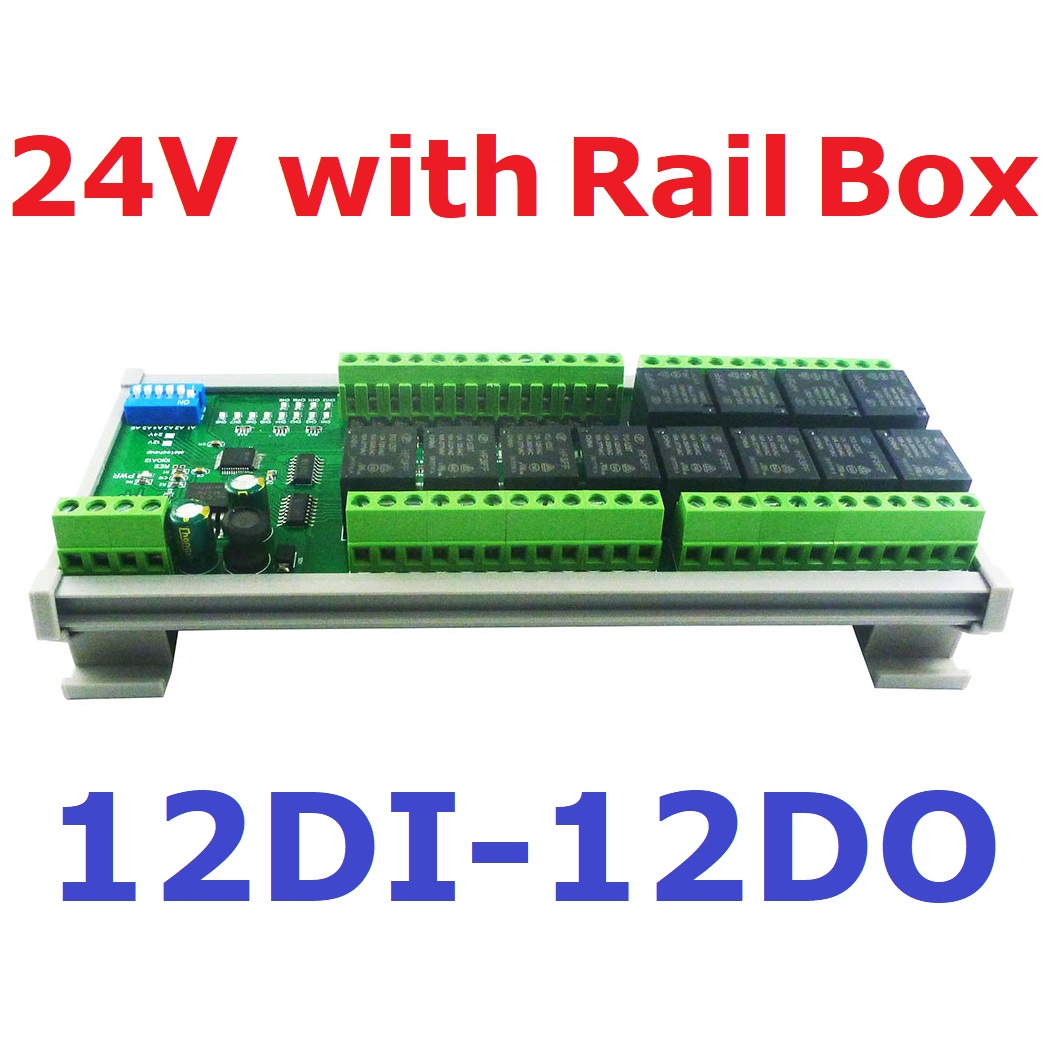

DIN rail Box parameters:

Product model: UM72
Color:
Grey
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 45/60/93/136/188 mm PCB boards
Net weight: 41/51/71/99/124g
Installation: DIN35 and C45 rail












Application


PLC IO expansion board

Smart Home,Home Automation ,Wiser Home;

PTC Camera

Security Monitoring

Identification system;

IP Camera

LED Lamp Drivers

Automatic curtain control
