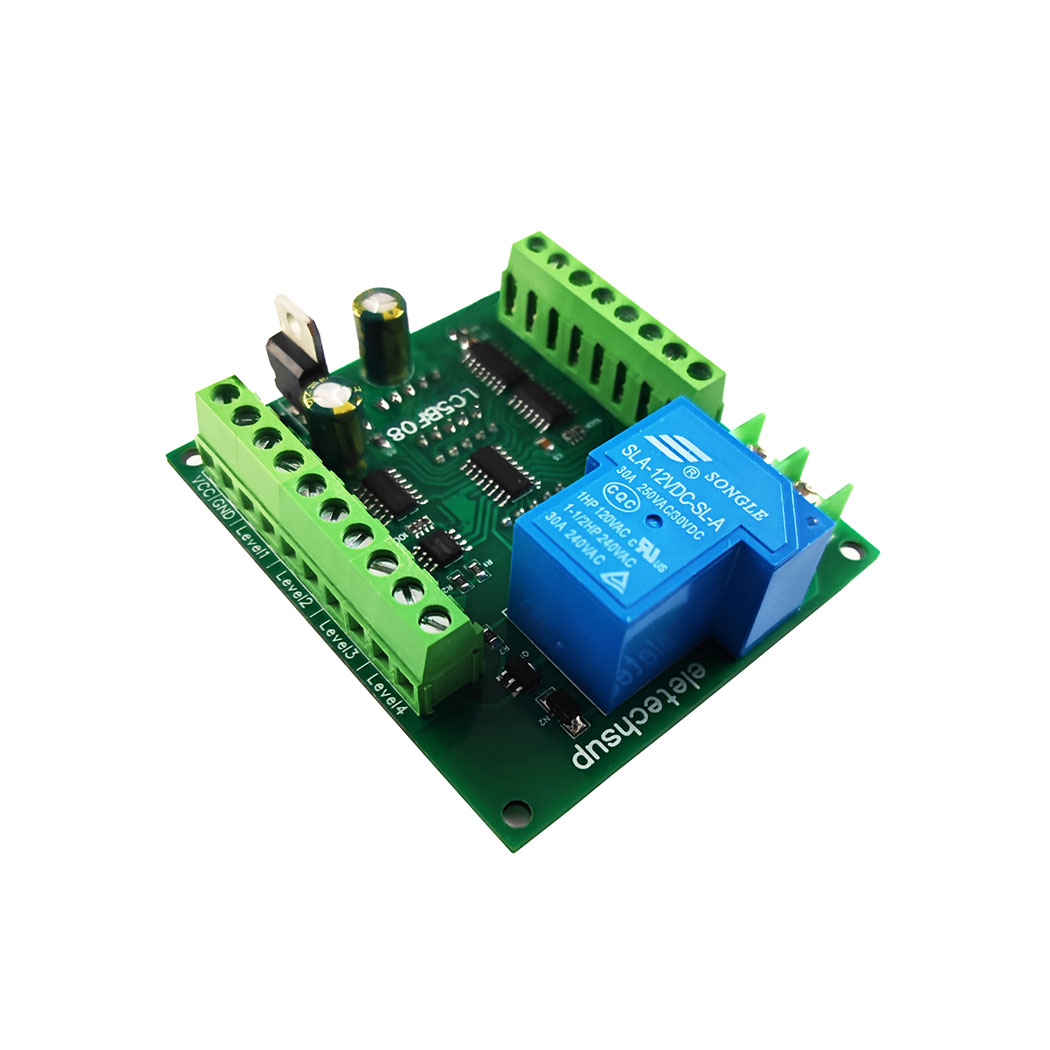

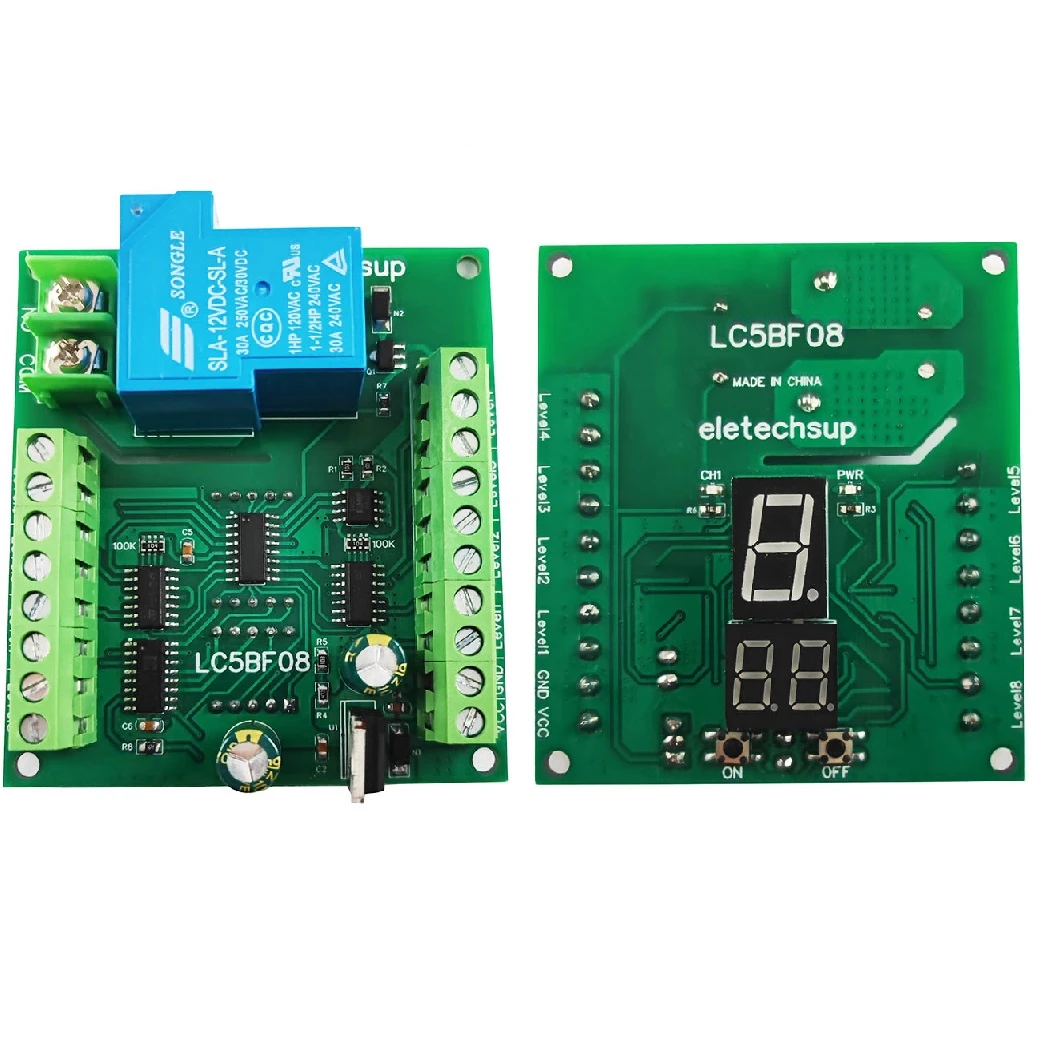

LC5BF08 DC 12V 30A 8 Levels Multi-function Water Level Pump Pour Display Controller Liquid Sensor Automatic Controll Relay Module





Description:

1 Working voltage: DC 12V;
2 Working Current: Relay OFF 45MA, Relay ON 120MA;
3 Digital Tube Display Water Level: 0-8 level
4 Relay ON/OFF Water Level Adjustment: 1-8 Levels
5 Size : 77x70x26 mm;

6 Weight: 75 grams;
7 Relay maximum load capacity: 30A/250VAC, 30A/30VDC.


Note:
Package does not contain probe (wire).No need to use a dedicated probe, the probe can be made using household wires
For safety, use an DC power supply with good isolation





Application

Home water tower automatic water supply system
Aquarium Fish tank Water Changer System
Fill the water tower automatically
Automatic pumping from water tower
Conductive liquid automatic control
Automatic feeding system for poultry and livestock
Farm automatic water supply system
And other occasions that require automatic water supply and water exchange.
Solenoid valve water pump motor automatic control

Interface description:

VCC :Power of positive(DC 12V +)
GND :Power of negative(DC 12V -)
Leve1/2/3/4/5/6/7/8 : 8 Water level probe interface
COM : Relay common contact
NO : Relay normally open contact

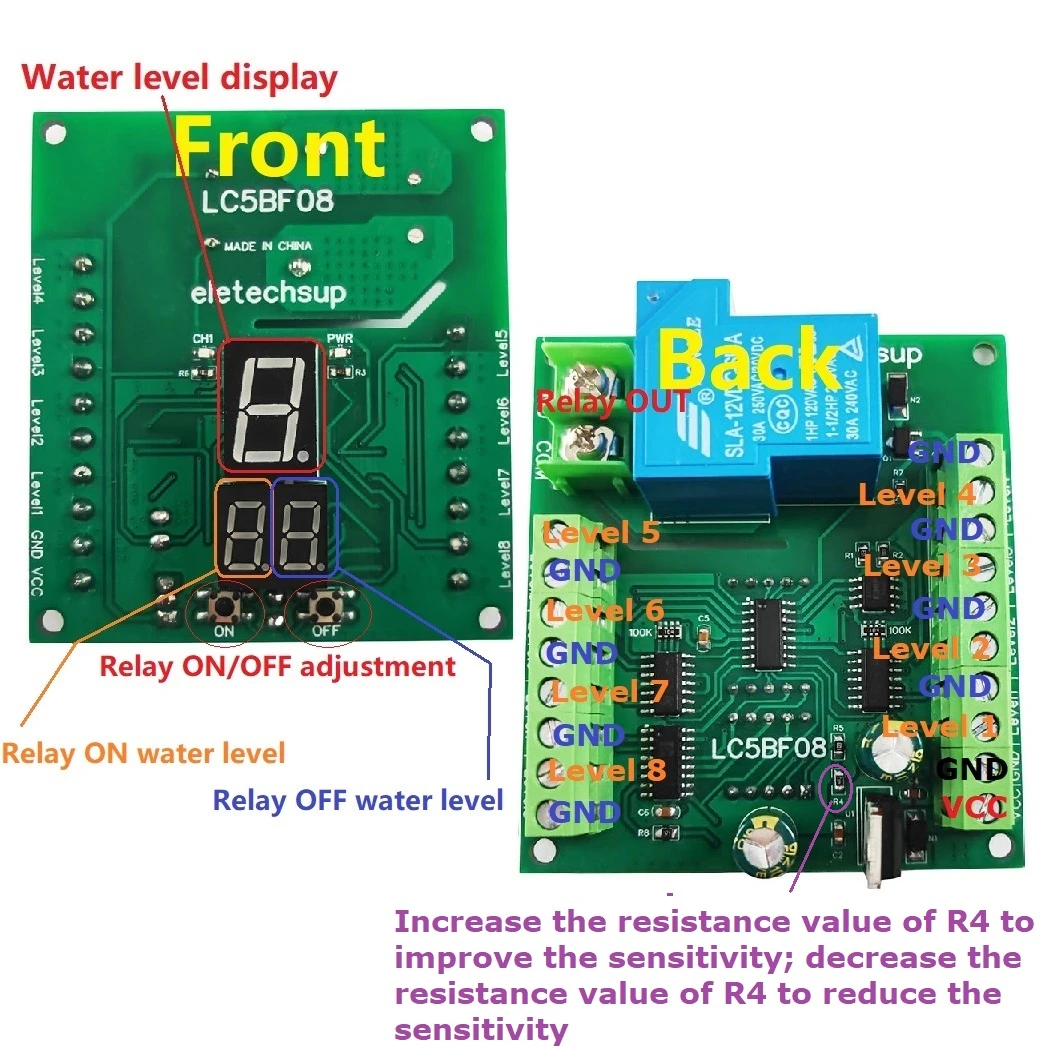

Working principle:
1 ''Current'' digital tube: Display the current water level, display between 0-8, flash slowly
2 ''ON'' digital tube, Relay ON water level.
3 ''OFF'' digital tube, Relay OFF water level
4 Press the ''ON'' button, the number of the ''ON'' digital tube is adjusted between 1-8
5 Press the ''OFF'' button, the number of the ''OFF'' digital tube is adjusted between 1-8

''ON'' digital tube = ''OFF'' digital tube : Only water level display function (Relay does not work)
''ON'' digital tube < ''OFF'' digital tube : Automatic water supply (pumping water from outside to water tower)
''ON'' digital tube > ''OFF'' digital tube :Auto drain (drains water to the outside)

Example to illustrate how it works:

Only water level display function (Relay does not work)
When the numbers of the two digital tubes ON/OFF are the same, the relay does not work (only the water level display function)

Example 1:
Trigger the ''ON''button, set the ''ON''digital tube to 1;
Trigger the ''OFF''button,set the ''OFF''digital tube to 1.

Example 2:
Trigger the ''ON''button, set the ''ON''digital tube to 2;
Trigger the ''OFF''button,set the ''OFF''digital tube to 2.

Automatic water supply (pumping water from outside to water tower)
Fill the water tower automatically

Example 1:
The water supply starts when the water level is lower than 1, and stops when the water level is higher (or equal to) 7.

Trigger the ''ON''button, set the ''ON''digital tube to 1;
Trigger the ''OFF''button,set the ''OFF''digital tube to 7.

Example 2:
The water supply starts when the water level is lower than 2, and stops when the water level is higher (or equal to) 6.

Trigger the ''ON''button, set the ''ON''digital tube to 2;
Trigger the ''OFF''button,set the ''OFF''digital tube to 6.

Auto drain (drains water to the outside)
Automatic pumping from water tower

Example 1:
Draining starts when the water level is higher than (or equal to) 5, and stops when the water level is lower than 3.
Trigger the ''ON''button, set the ''ON''digital tube to 5;
Trigger the ''OFF''button,set the ''OFF''digital tube to 3.

Example 2:
Draining starts when the water level is higher than (or equal to) 4, and stops when the water level is lower than 3.
Trigger the ''ON''button, set the ''ON''digital tube to 4;
Trigger the ''OFF''button,set the ''OFF''digital tube to 3.

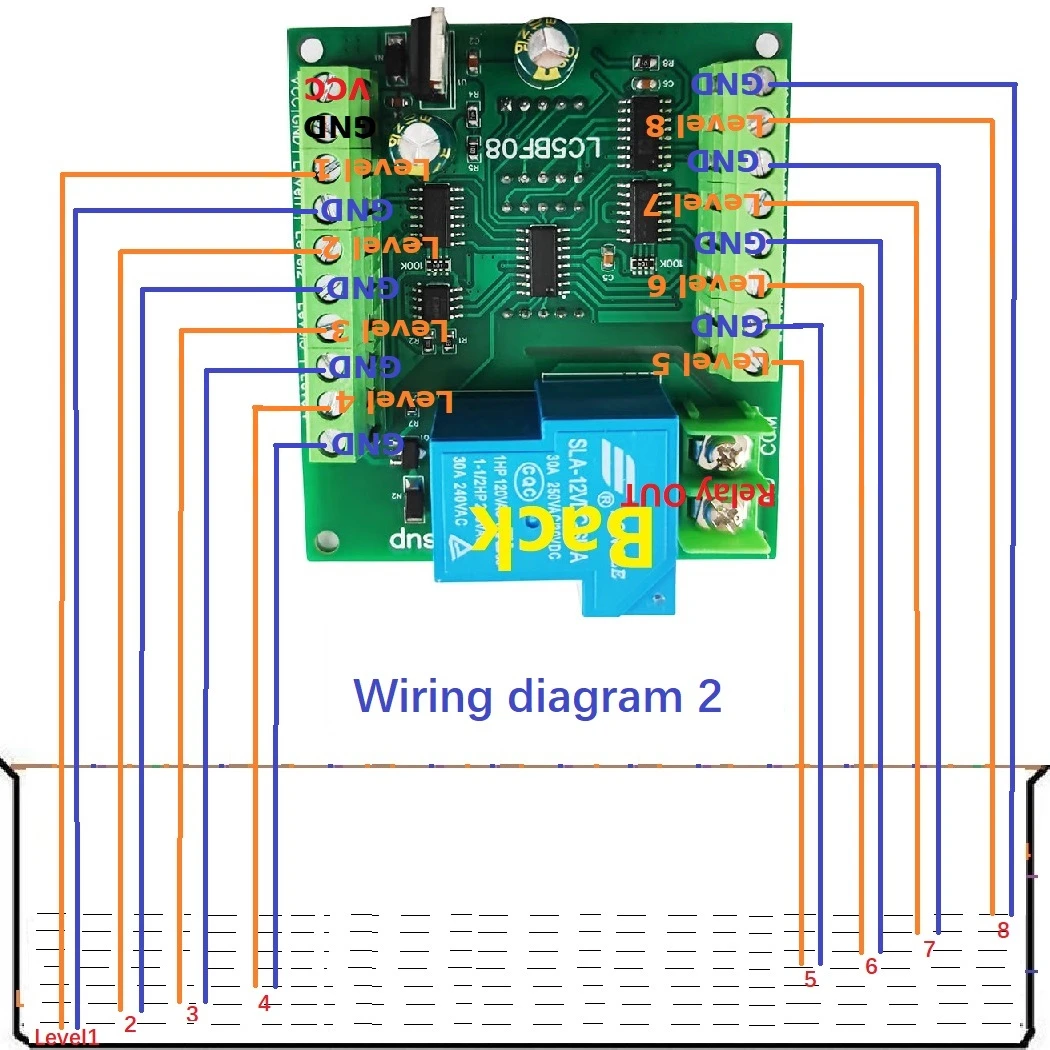

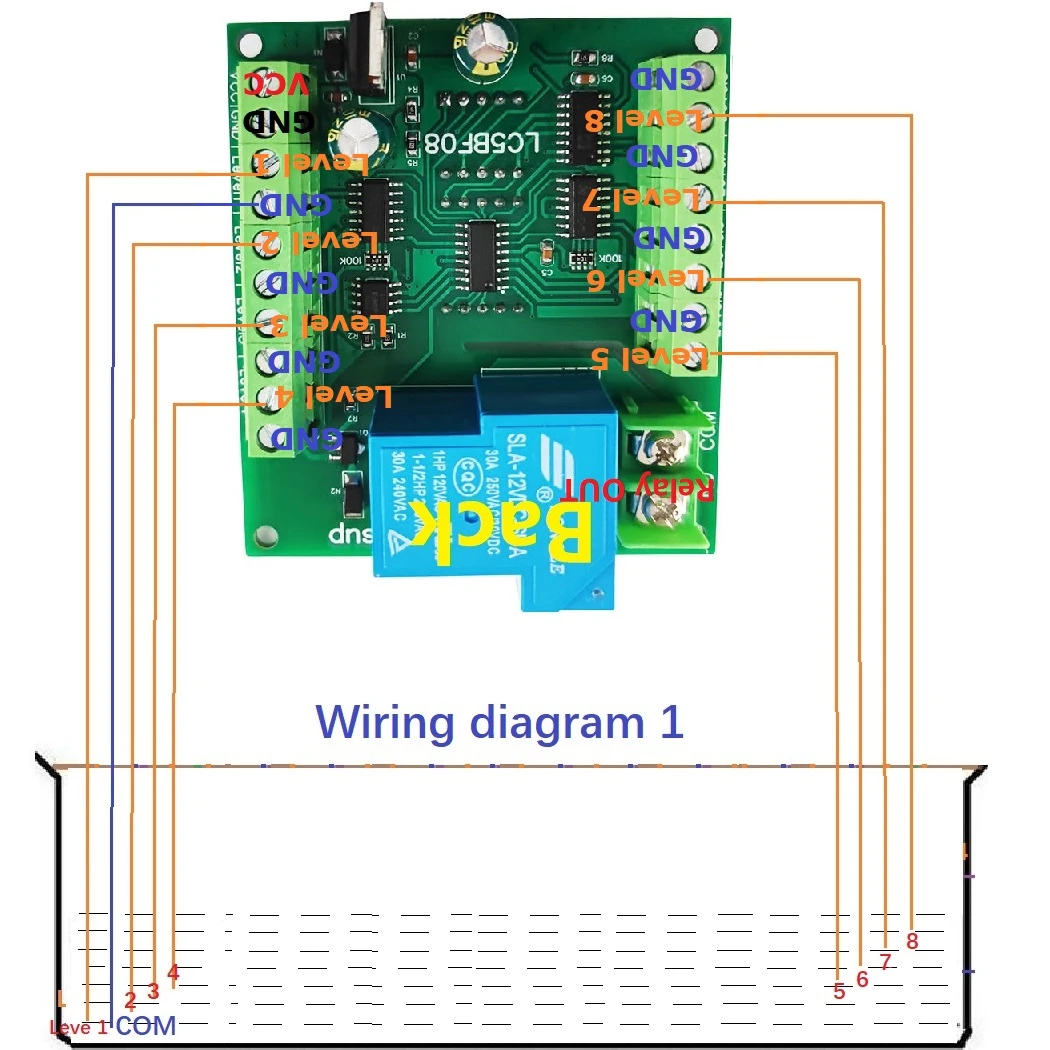

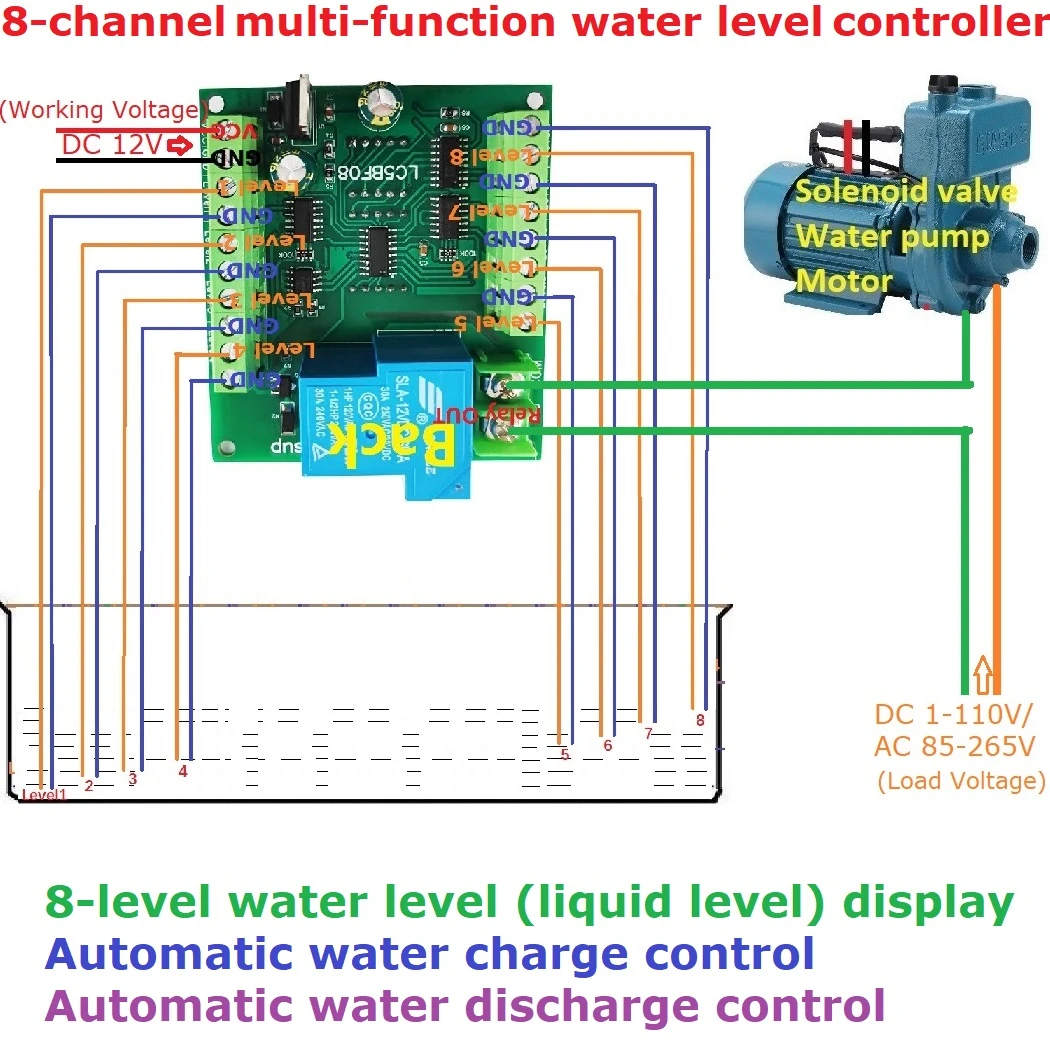

Wiring diagram:

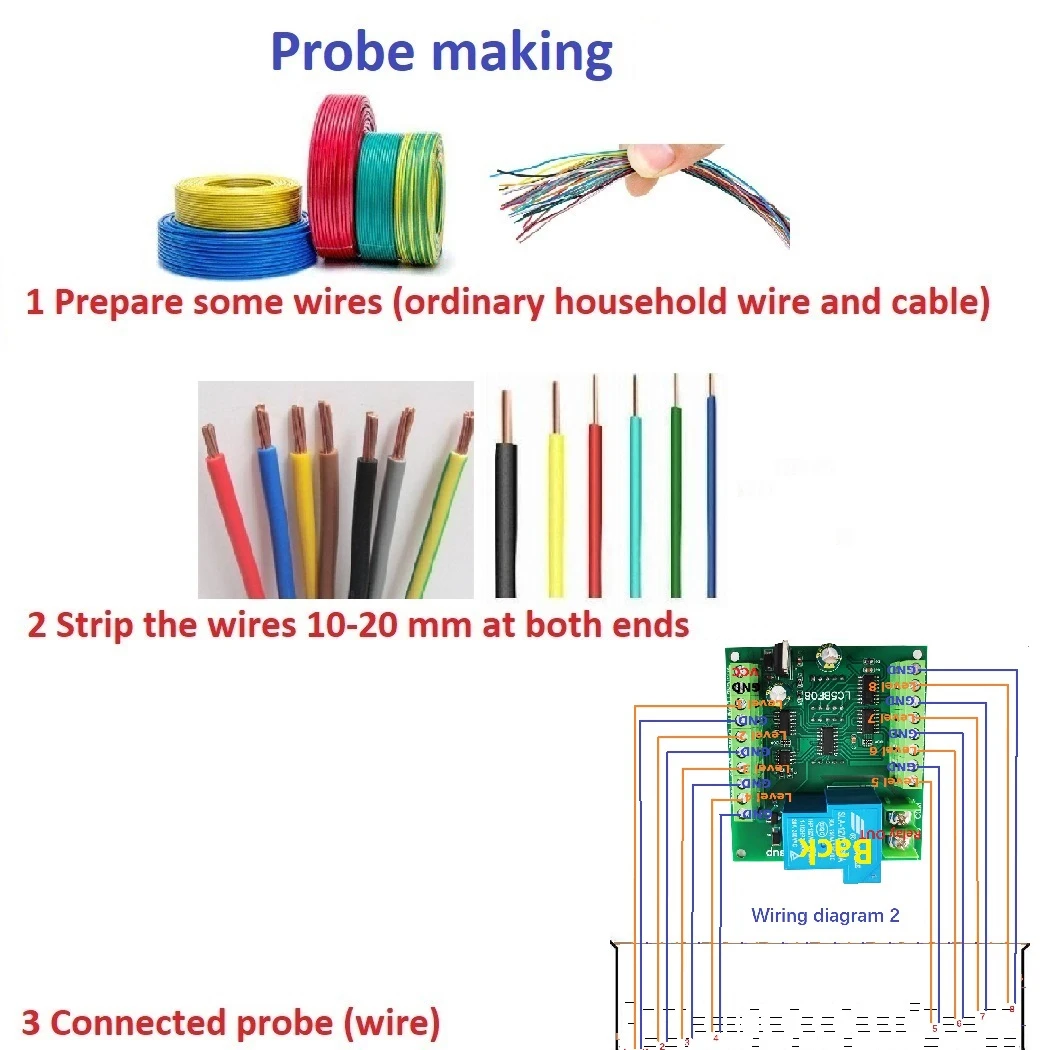

Make the probe:
