NDTC43QB 4CH 20W 3.3V 5V 12V ADJ TYPE-C Voltage Converter DC-DC Boost LDO Buck Power Supply for Arduino ESP8266 Raspberry pi Breadboard

NDTC43QB 4CH 20W 3.3V 5V 12V ADJ TYPE-C Voltage Converter DC-DC Boost LDO Buck Power Supply for Arduino ESP8266 Raspberry pi Breadboard

  • Model: NDTC43QB_PIN
  • Availability: In stock
  • Weight: 0.016Kg
$5.17
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns



Description:

4CH Multi-function TYPE-C Voltage Converter Module
Input voltage: DC 5V >=2A
Quiescent Current : 3mA
Operating temperature range : -40~+85 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius

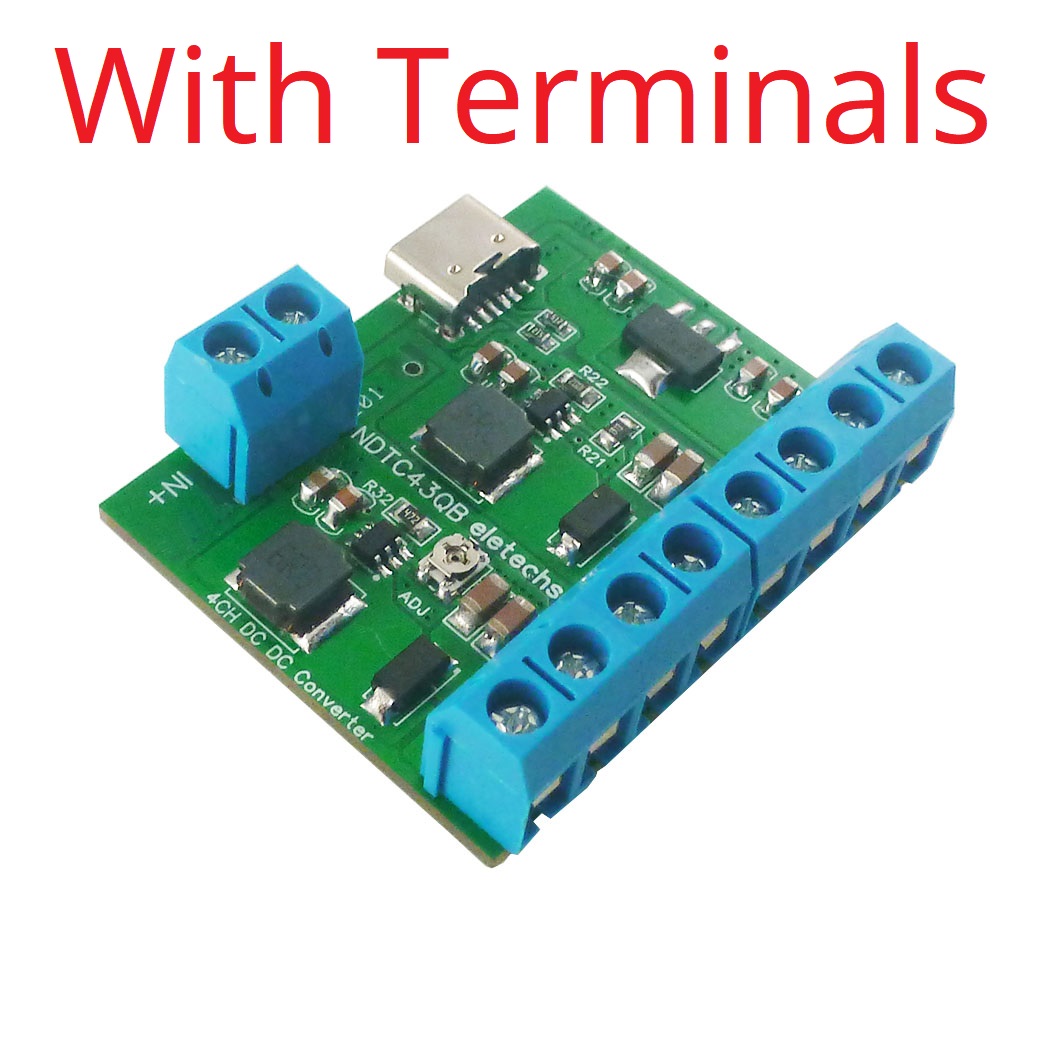

Size : 43mm x 35mm x 5mm(No Terminals);43mm x 35mm x 12mm(With Terminals)
Weight : 6.5g(No Terminals);14.5g(With Terminals)


3.3V Output Channel:

LDO Step-down IC
Input Voltage: DC 5V
Output Voltage : 3.3V(±2%)
Short-term output current 800MA
long-term output current 300MA
Conversion efficiency: 66%


5V Output Channel:

Does not contain any conversion circuit, input through output


12V Output Channel:

DC-DC Step-UP
IC


Input Voltage: DC 5V
Output Voltage : 12V(±2%)
Short-term output current 800MA
long-term output current 600MA
Conversion efficiency: about 90%
working frequency 1.2MHZ.
Automatic Pulse Frequency Modulation Mode at Light Loads
Under voltage lockout,Current limiting,Thermal overload protection


6-24V Adjustable Output Channel:

DC-DC Step-UP
IC


Input Voltage: DC 5V
Output Voltage : 6-24V
Short-term output current 400-1000MA(10W)
long-term output current 300-500MA(6W)
working frequency 1.2MHZ.
Conversion efficiency: 84%-93%
Automatic Pulse Frequency Modulation Mode at Light Loads
Under voltage lockout,Current limiting,Thermal overload protection



Notice:
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
4 When using TYPE-C power supply, the total output power of the 4 channels cannot be greater than 10W.
5 When using a 5V current power supply, the total output power of the 4 channels cannot be greater than 20W.



Applications

for Arduino MEGA UNO NANO Mcu Board
for ESP32 ESP8266 Wifi Module
Battery powered equipment
Type-c USB equipment
Small power motors
PTZ Camera webcam
IP Camera
Toy car boat
PLC Modbus rtu RS485 devices
Diy electronic kit

















Description:




4CH Multi-function TYPE-C Voltage Converter Module
Input voltage: DC 5V >=2A
Quiescent Current : 3mA
Operating temperature range : -40~+85 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
Size : 43mm x 35mm x 5mm(No Terminals);43mm x 35mm x 12mm(With Terminals)
Weight : 6.5g(No Terminals);14.5g(With Terminals)


3.3V Output Channel:

LDO Step-down IC
Input Voltage: DC 5V
Output Voltage : 3.3V(±2%)
Short-term output current 800MA
long-term output current 300MA
Conversion efficiency: 66%


5V Output Channel:

Does not contain any conversion circuit, input through output


12V Output Channel:

DC-DC Step-UP
IC


Input Voltage: DC 5V
Output Voltage : 12V(±2%)
Short-term output current 800MA
long-term output current 600MA
Conversion efficiency: about 90%
working frequency 1.2MHZ.
Automatic Pulse Frequency Modulation Mode at Light Loads
Under voltage lockout,Current limiting,Thermal overload protection


6-24V Adjustable Output Channel:

DC-DC Step-UP
IC


Input Voltage: DC 5V
Output Voltage : 6-24V
Short-term output current 400-1000MA(10W)
long-term output current 300-500MA(6W)
working frequency 1.2MHZ.
Conversion efficiency: 84%-93%
Automatic Pulse Frequency Modulation Mode at Light Loads
Under voltage lockout,Current limiting,Thermal overload protection



Notice:
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
4 When using TYPE-C power supply, the total output power of the 4 channels cannot be greater than 10W.
5 When using a 5V current power supply, the total output power of the 4 channels cannot be greater than 20W.



Applications

for Arduino MEGA UNO NANO Mcu Board
for ESP32 ESP8266 Wifi Module
Battery powered equipment
Type-c USB equipment
Small power motors
PTZ Camera webcam
IP Camera
Toy car boat
PLC Modbus rtu RS485 devices
Diy electronic kit
