Product Features:
1 Working voltage: DC 8-28V (0-5V Version),DC 12-28V (0-10V Version)
2 Working current: 10-35MA (related to the output current)
3 Voltage signal input range: 0-5V/0-10V.
4 Current signal output range: 0/4-20MA
5 Accuracy: 0.5%
6 Operating temperature: -40℃ to 125℃
7 With DIN rail enclosure,5.08MM pluggable terminal block
8 Size: 90*35*45MM
9 Weight:50g

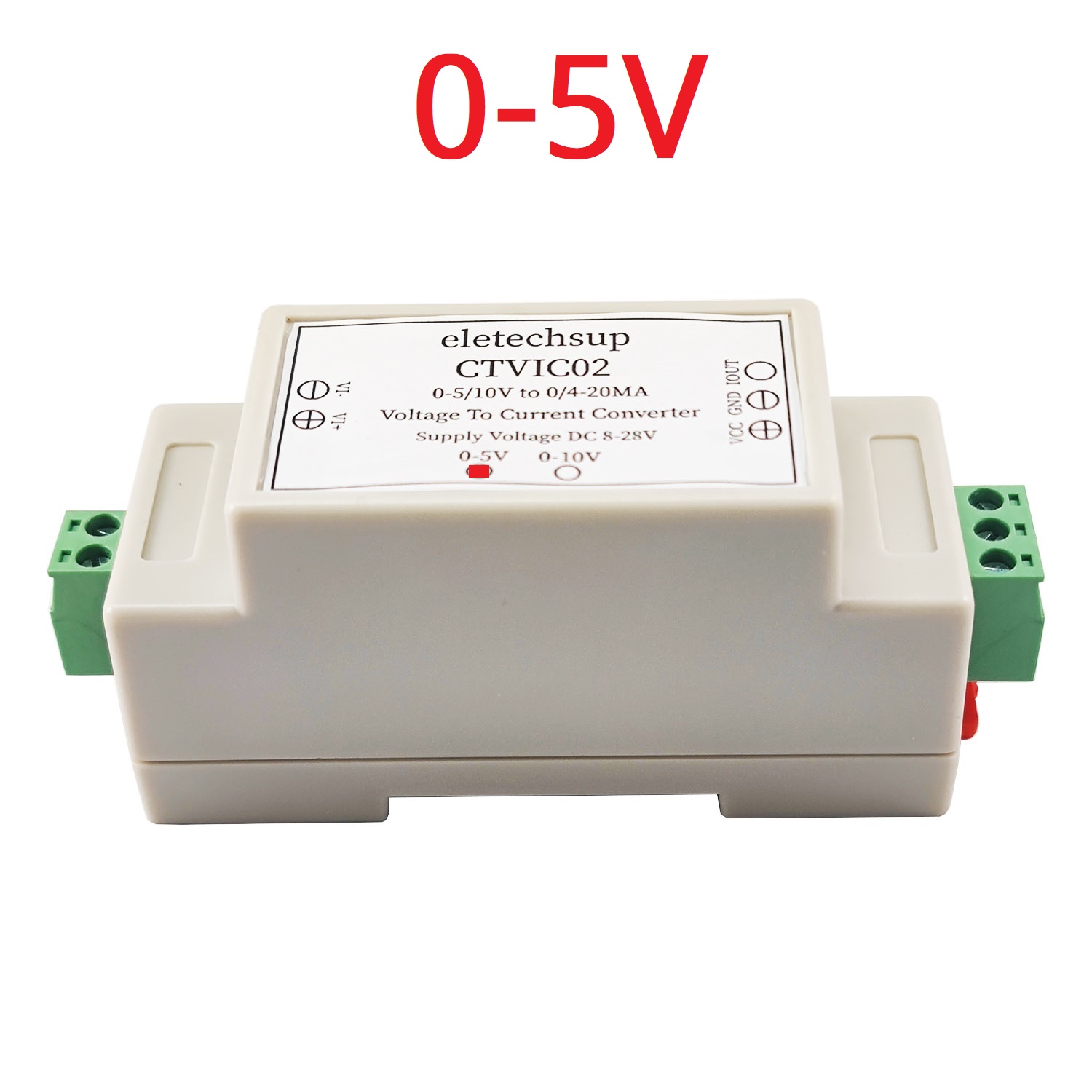

CTVIC02 is Industrial Grade Voltage to Current Converter/Transmitter
It supports the following voltage-to-current conversions
0-5V Version:
0-5V to 0-20MA
1-5V to 4-20MA
0-10V Version:
0-10V to 0-20MA
2-10V to 4-20MA
Multiple protections:
Power reverse connection protection
Power overvoltage protection
Power overcurrent protection
Input signal overvoltage protection
Output signal surge protection
Typical Applications
Instrument transmitter
Industrial analog signal isolation
Industrial controller
PLC output driver
Voltage sensor signal long distance transmission
