Features:
3.3V Version:
Input DC 18~75V,3.3V isolated output
The maximum output current in a short time is 3.5A
The maximum output current in a long time is 2.5A.
Switching Frequency 450 kHZ
High efficiency : 85% @ 3.3V/2.5A
Input UVLO,Output OCP/OVP/OTP
2250V isolation and basic insulation
No minimum load required
Operating Temperature :–40°C to +105°C
Size : 87 x 59 x 35mm
Weight : 60g
5V Version:
Input DC 18~75V,5V isolated output
The maximum output current in a short time is 3A
The maximum output current in a long time is 2A.
Switching Frequency 450 kHZ
High efficiency : 85% @ 5V/2A
Input UVLO,Output OCP/OVP/OTP
2250V isolation and basic insulation
No minimum load required
Operating Temperature :–40°C to +105°C
Size : 87 x 59 x 35mm
Weight : 60g

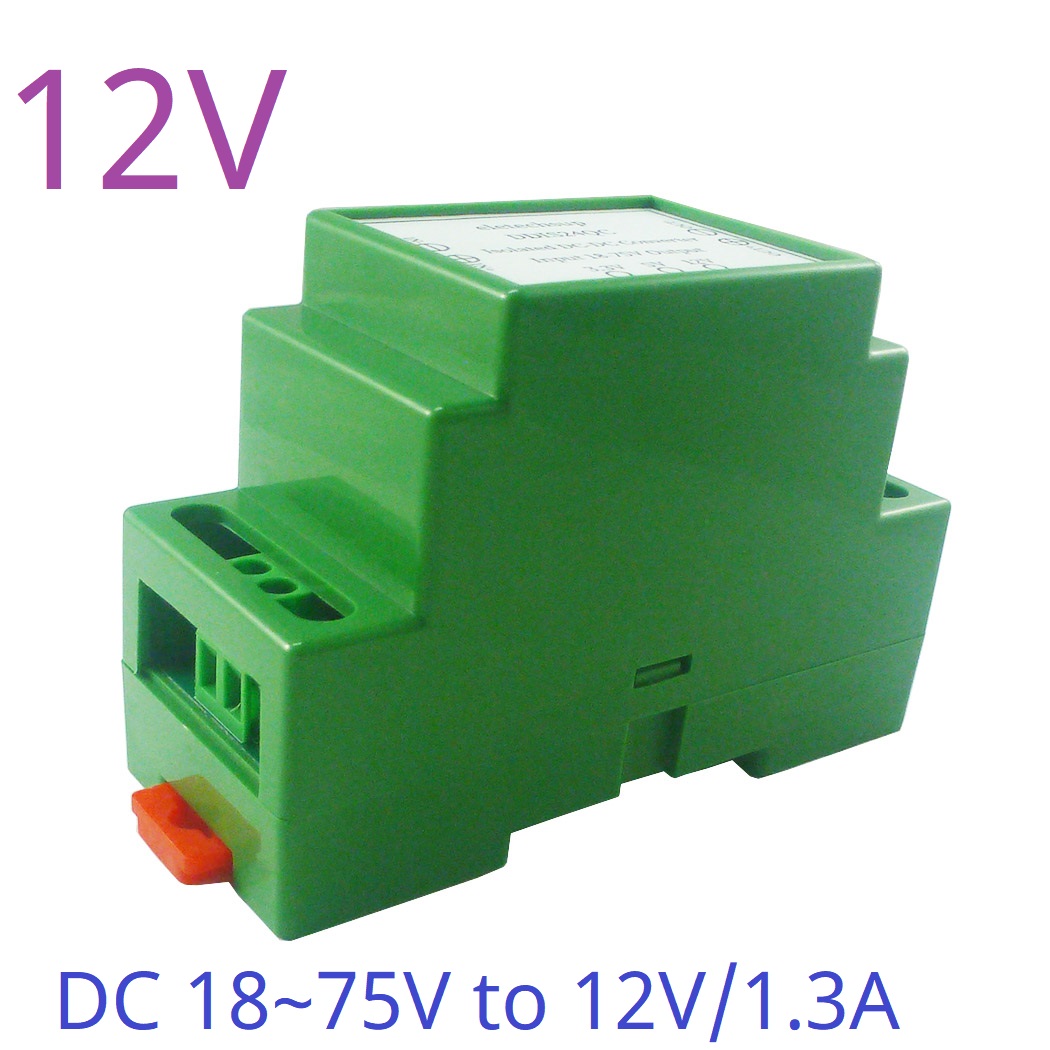

12V Version:
DC 18~75V Wide Voltage Input
DC 12V/1.3A isolated output
Switching Frequency 450 kHZ
High efficiency : 87% @ 12V/1.3A
Input UVLO,Output OCP/OVP/OTP
2250V isolation and basic insulation
No minimum load required
Operating Temperature :–40°C to +105°C
Size : 87 x 59 x 35mm
Weight : 58.5g
