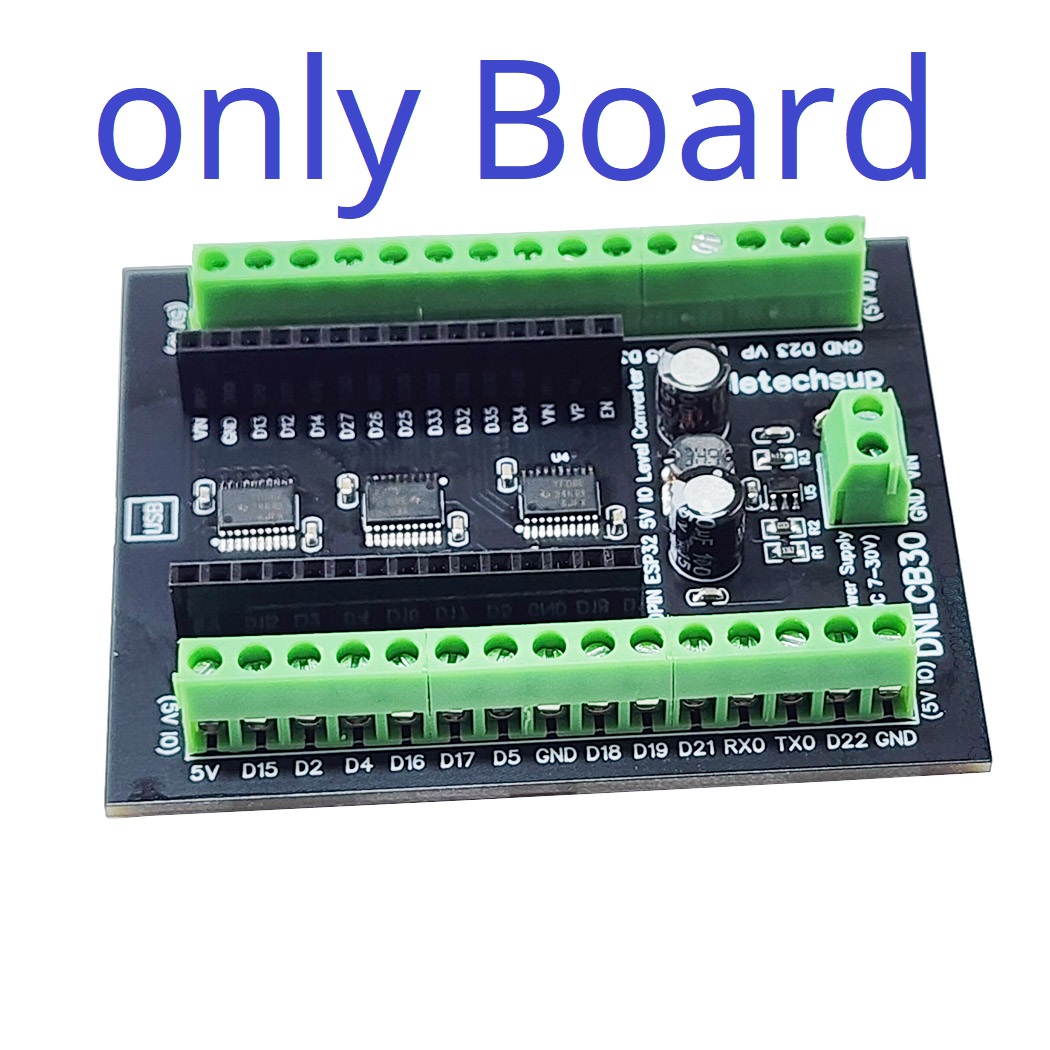

DNLCB30 is a 30PIN ESP32 3.3V to 5V bidirectional level converter board. It can convert the 3.3V level of ESP32 to 5V level input/output.
Description:
30PIN ESP32 3.3V to 5V Bidirectional Level Converter
1 Working voltage DC 7-35V, input reverse polarity protection.
2 With DC 5V external output power supply, minimum output current 0.5A, output short circuit protection.
3 3.3V to 5V DIO level bidirectional conversion
4 Lead out almost all IO ports (Except 2/12PIN)
5 Automatic input and output switching
6 Maximum conversion rate 1000KHZ
7 Terminal spacing: 3.96mm.
8 Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.
9 Size: 72 *58 * 9mm(only Board),86 *60 * 35mm(with Rail Box)
10 Weight: 33g(only Board),82g(with Rail Box)
Use:
DIN Rail Mount Screw Terminal Adapter Module for 30 PIN ESP32 Board.
With this adapter modules, you can easily extend your ESP32 projects to industrial control applications.
Notice:
1:This is just an expansion board. You need to insert a 30-pin ESP32 board when using it.
2: 2/12PIN didn't lead out
3: 3(RX0)/34/35/36(VP)/39(VN) pin can only be used as an input pin
4: When RX0/TX0 is used as an input pin, it should be set to pull up
5: Can only convert digital quantities, not analog quantities
DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 58 mm PCB boards
Net weight: 48g
Installation: DIN35 and C45 rail
