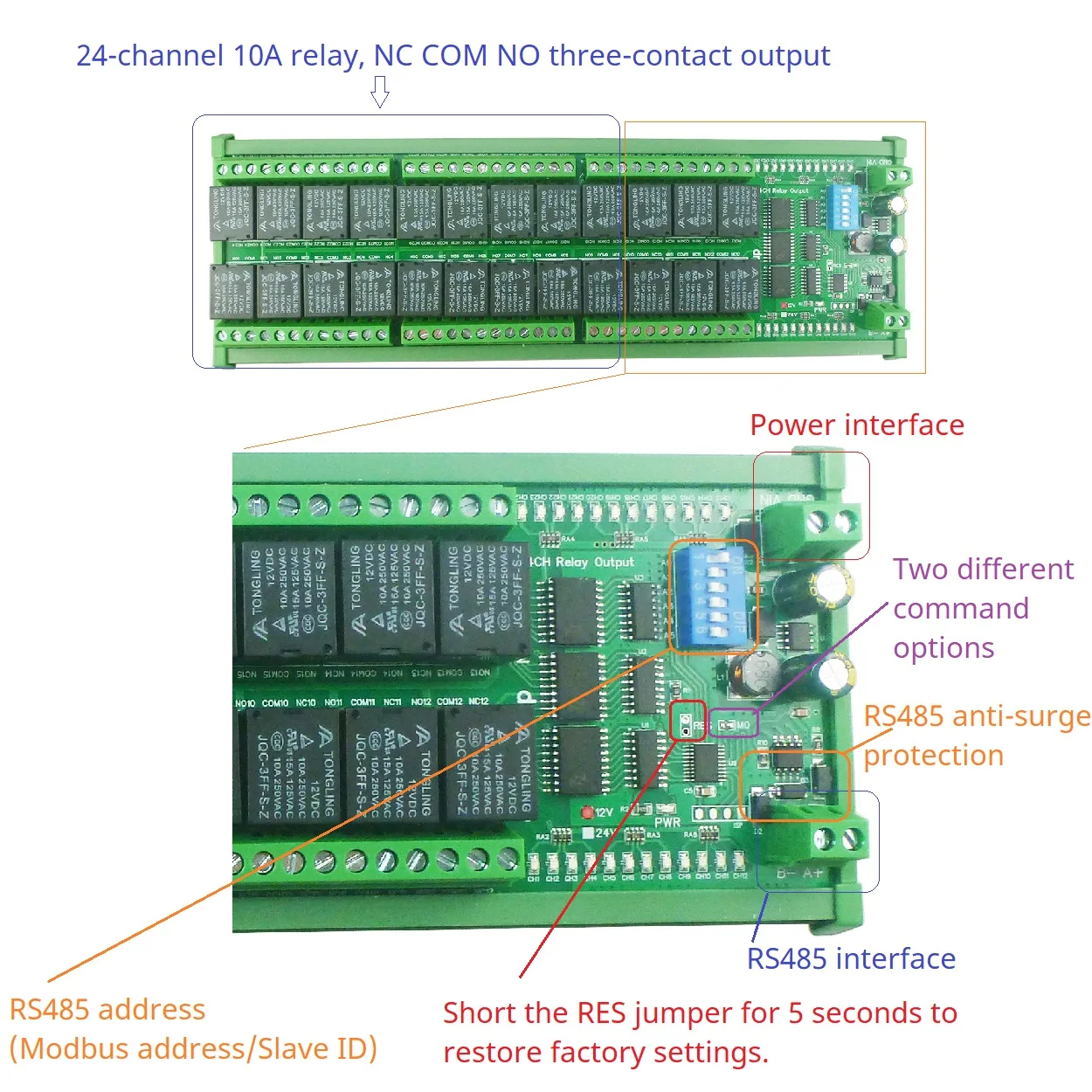

1 RS485 address is set by DIP switch, which is convenient for setting and viewing main parameters.
2 Using the standard Modbus Rtu protocol, it can be used in industrial control situations such as computer PLC touch screens.
3 RS485 interface with TVS anti-surge protection, power overcurrent protection, anti-reverse connection protection
4 Using 10A high current relay, it can directly drive most loads
5 NC COM NO three contact outputs, can be used in more situations
6 Two MODBUS RTU commands can be selected through the M0 jumper
Features:
1:DC 12V (12V Version),DC 24V (24V Version)
2.Standby current (all relays closed) 12MA, 1 relay open 40MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 122MA,5 relays open 149MA,6 relays open 174MA, 7 relays open 200MA,8 relays open 226MA,and so on

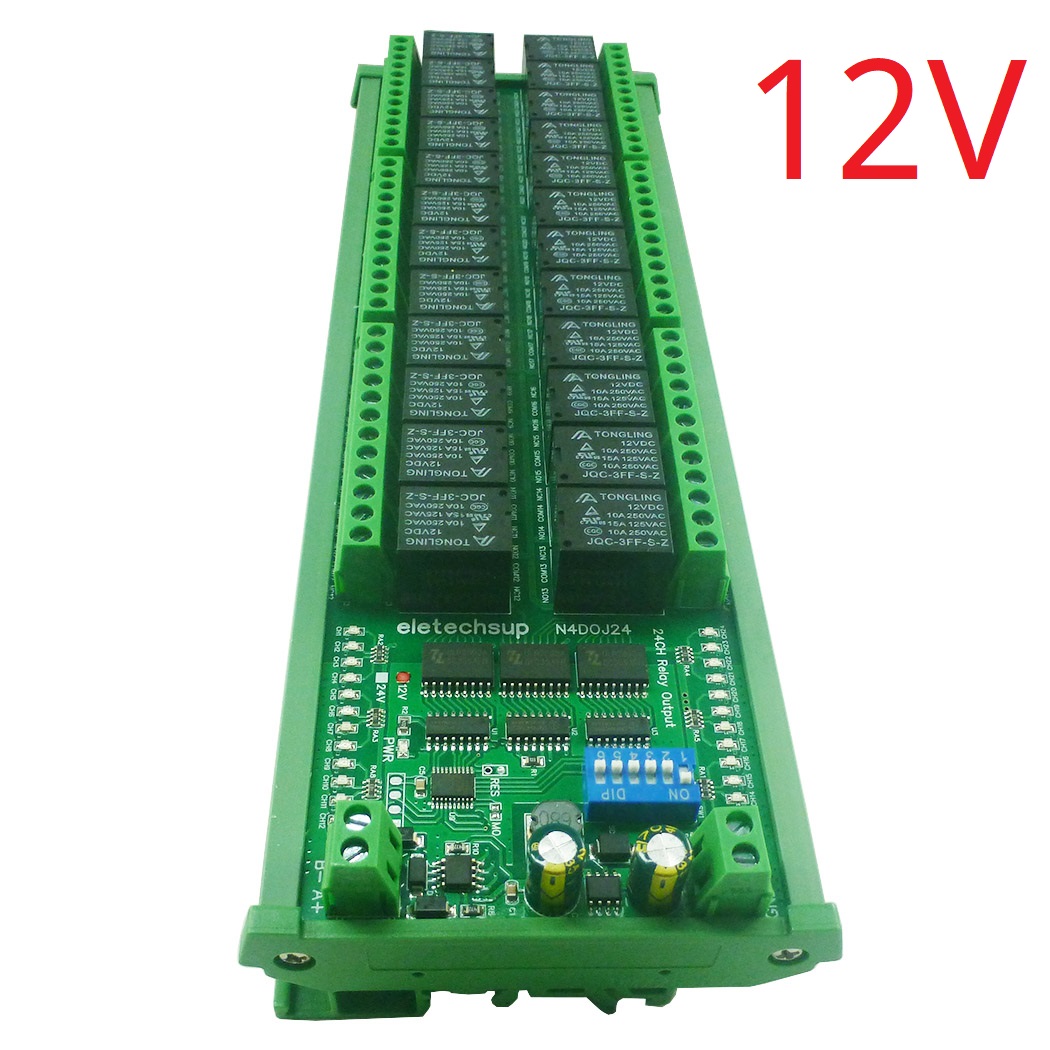

3: 24channels 10A relay switch outputs
4: Support standard Modbus RTU command, function code:
Command 1 (default): write 06/16 read/03;
Command 2 (solder M0 jumper): write 05/06/15/16 read 01/02/03/04
5: With hardware Reset function, with TVS anti-surge protection
6 Under the MODBUS command mode, it can support up to 64 devices in parallel
7 The default baud rate is 9600BPS. The baud rate can be selected by Conmand 2400 4800 9600 19200 38400 57600 115200BPS
8 The parity can be none parity, even parity and odd parity
9 The data sending and returning time can be set,with a maximum value of 1000ms
10 Size: 257 * 82*40mm(with Din Rail Box)
11 Weight: 515g(with Din Rail Box)

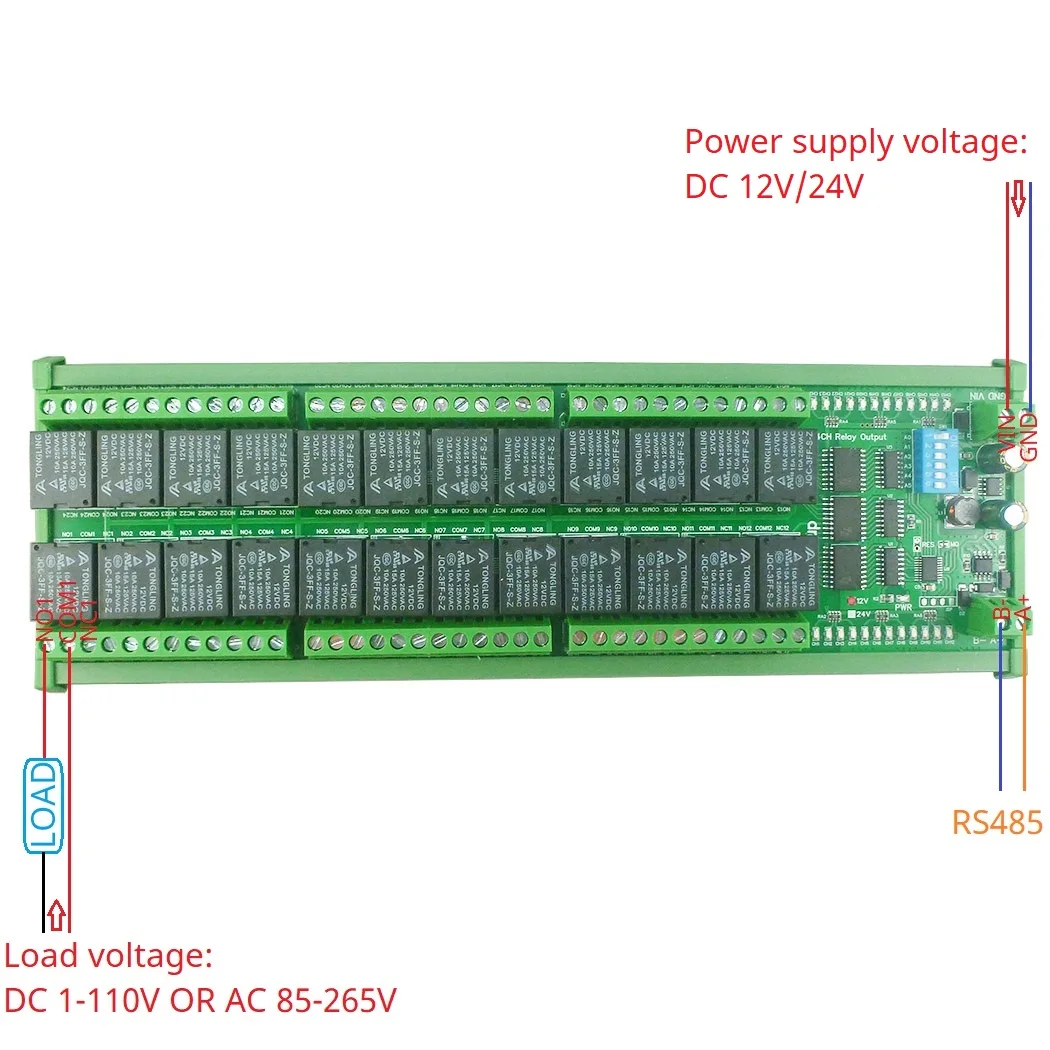

12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 254 mm PCB boards
Net weight: 165g
Installation: DIN35 and C45 rail
For more information, please contact me
Application
PLC DO expansion board
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
Automatic curtain control
