Input voltage DC 0.9 ~ 6V, output DC 3V/3.3V/4.2V/5V
The maximum input voltage can not exceed 6.5V
Quiescent operating current: 260uA
Auto Buck-Boost Converter Module working frequency 1MHZ.efficiency 60%-85% .
Operating temperature range : -25~+85 Degrees Celsius
Storage temperature range : -45~+125 Degrees Celsius
Size : 26mm x 15.5mm x 5.8mm
Weight : 2.7g
Features:
Low voltage operation: Start-up is guaranteed from 0.9V(IOUT =1 mA )
Duty ratio: Built-in PWM/PFM switching control
circuit 15 to 78 % .
Oscillator frequency:1.0MHz
Feedback voltage accuracy:±2%
Soft start function: 2 mS
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low

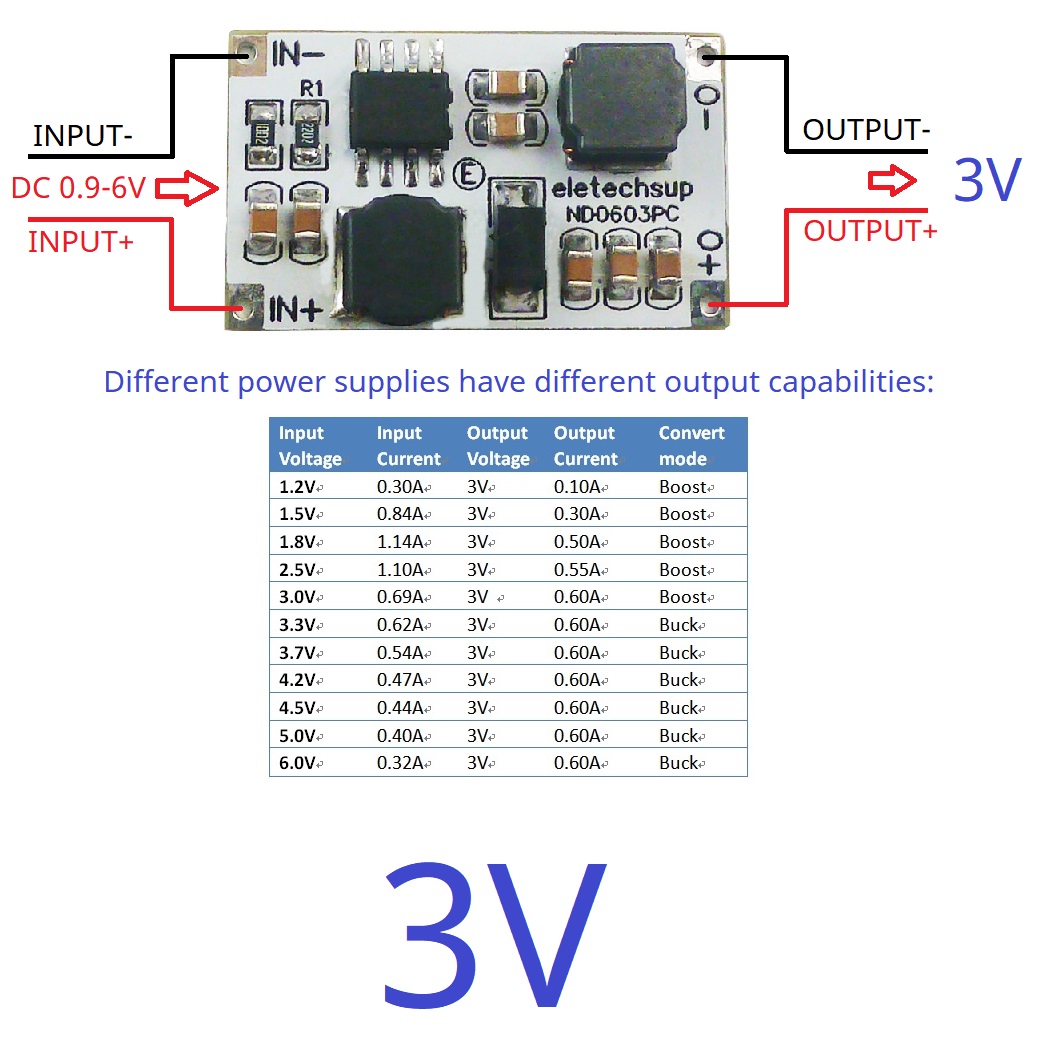

Different power supplies have different output capabilities:
