PLADA08 is a multifunctional PLC/MCU debugging board designed and produced by eletechsup. It can be used to debug analog and digital IO ports very conveniently. It is an entry-level development tool for PLC MCU.
Product Features:
1 Operating voltage: DC 12V-24V(Only for analog output)
2 On-board resources: 1x 0-10V Output 1x 0-20MA Output,8x NPN/PNP Inputs (LED), 8xNPN/PNP Switching Output(Button/DIP switch)

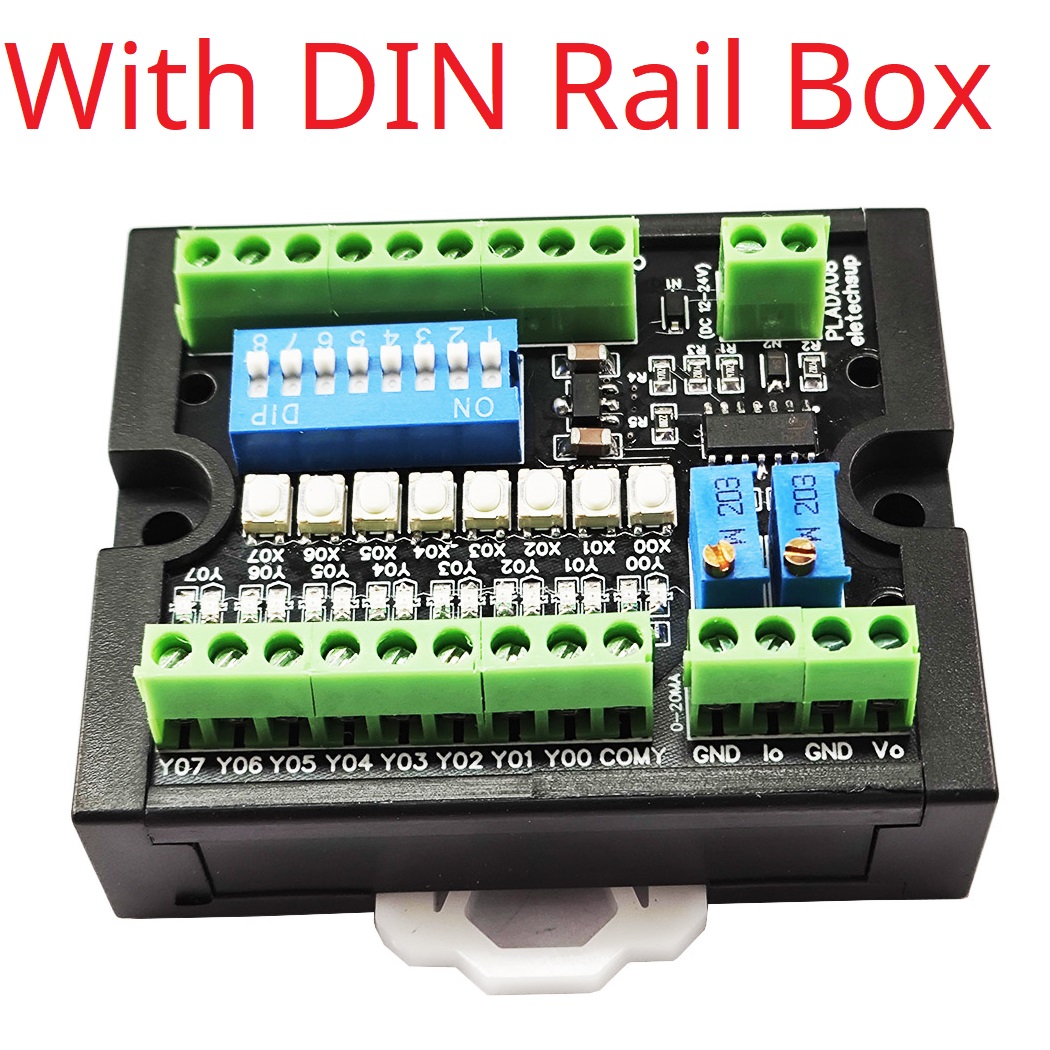

4 Size 59*50*12mm(Only Board),65*54*25(With case)
5 Weight : 24g(Only Board),49g(With case)
Feature:
1. Support NPN/PNP/relay input, with red and green indicator lights indicating NPN and PNP respectively.
2. The output adopts toggle switches and light touch buttons, which can be triggered once or signal maintained, making debugging more convenient.
3. Support 3.3-24V level, suitable for a wide range of applications, making debugging more flexible and convenient.
4. 0-10V voltage output, 0/4-20MA current output
5. Suitable for PLC input/output debugging, MCU input/output debugging, equipment maintenance testing, and other occasions.
Typical Applications:
for ESP32/ESP8266 Development
for ARDUINO Development
for Raspberry pi Development
for Micro:bit Development
for PLC/HMI Development
For FPGA/CPLD STM32 Development
