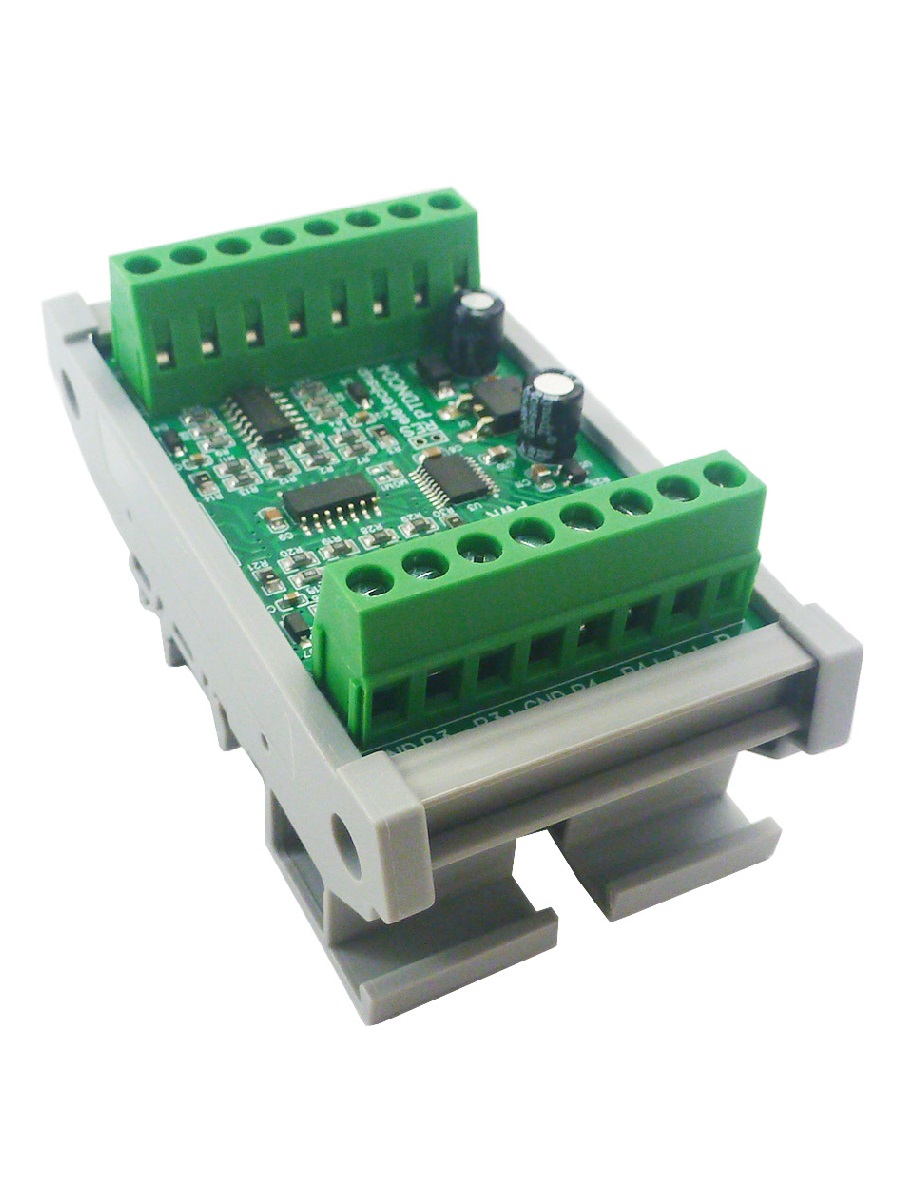

PTDNC04 is a PT100/PT1000 RS485 collector developed and produced by eletechsup. It uses low-cost components and reasonable and ingenious design to achieve cost-effective PT100/PT1000 sensor temperature and resistance value collection.
PTDNC04 PT100/PT1000 RS485 Acquisition module Description:
Power supply voltage: DC 6~25V
Working current: 20MA
MODBUS RTU protocol, 03 read command, 06 or 16 write command.
Serial port baud rate: 1200-115200,9600 (default), N, 8, 1
By modifying the 485 address, up to 247 modules can be cascaded (please use RS485 repeater for more than 16)
Can read temperature and PT100/PT1000 resistance value
Applicable sensor: PT100/PT1000 3-wire or 2-wire sensor
Temperature measurement range: A version -40℃ to +220℃; B version -40℃ to +500℃. It is recommended to choose a version with a smaller range within the measurement range.
Temperature measurement accuracy: 1%, if the temperature deviation is too large, please recalibrate
Dimensions: 72 X 46 X18MM (board only), 79 X 49 X40MM (with shell)
Weight: 32g (board only), 78g (with shell)
MODBUS RTU protocol please refer to : ''PTDNC04 Modbus Rtu Command ''
PT100 sensor specifications:
Type: PT100
Probe Diameter: 6.5mm
Probe Length: 30mm
Probe Material : Stainless steel
Cable Length: 0.5M
PTFE sheath 3-Wire type
Temperature -200~550°C degree
Nominal accuracy : 0.1%
PT1000 sensor specifications:
Wire: PVC
Wire temperature resistance: -20~+108℃
Probe temperature range: -60~260℃
Measurement accuracy: 0.1%
Probe diameter: 5MM
Probe length: 45MM
Probe material: stainless steel shell
Total cable length: 1.5 meters
Weight: 32 grams
The PT100/PT1000 sensor probe is a variable resistor, regardless of positive or negative poles.
3-wire probe wiring method: red wire connected to P+, the other two wires of the same color connected to P- and GND (without distinguishing between ports).
2-wire probe wiring method: red wire connected to P+, blue wire connected to P-, P- and GND are connected with wires.
