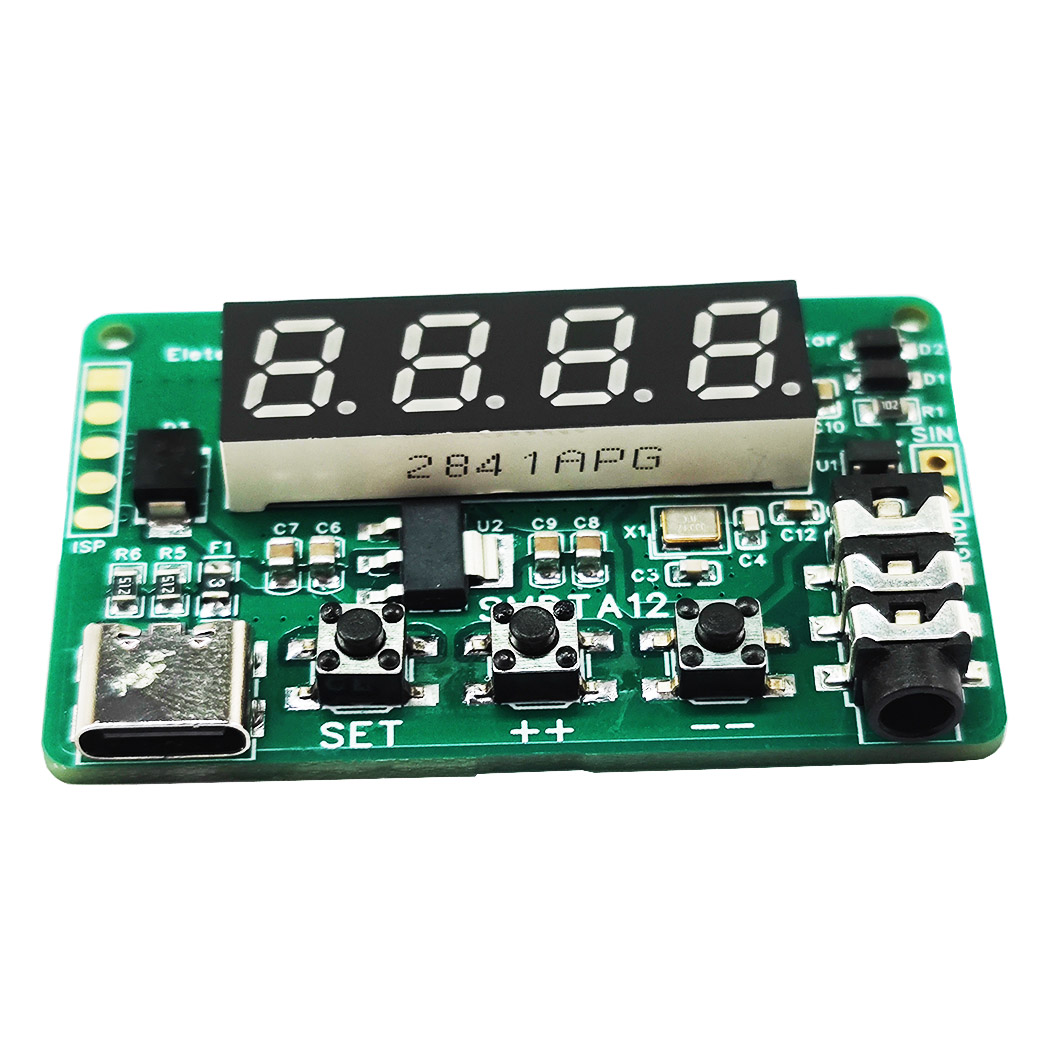

SMDTA12（Signal Generator）50MM 100MM 150MM External Antenna 7.83HZ Earth HeartBea Resonances Resonances 0.01Hz~9999Hz Sine Wave Signal Generator Kit

SMDAT12 is a separate Schumann wave signal generator, which can generate any sine wave frequency between 0.01-9999. Combined with the Schumann resonances external antenna (ANTSA01 ANTSB02 ANTSC03), Schumann wave signals at any angle can be achieved.

This product can not only output 7.83Hz Schumann wave,
but also can adjust the frequency within the range of 0.01Hz~9999Hz,
A high-speed DAC can generate a pure sine wave signal

1 Working voltage: DC 5V
2 Working current: 13-17MA
3 Power interface: Type-c(Support TYPE-C TO TYPE-C power supply)
4 Default frequency: 7.83Hz
5 Adjustment range: 0.01Hz~9999Hz Pure Sine Wave
7 Signal voltage amplitude: 3V
8 With 3.5MM audio output
9 Size: 50*31*8MM(Mini Size)
10 Weight : 9g(Light weight)

For more information please Google ''Schumann Resonance''.
For audio-visual space - to enhance the sound field and audio-visual effects
For the bedroom - to help sleep soothe the nerves, treatment of insomnia
For the office - relax and improve work efficiency
For the create space - to improve creative inspiration
For the tea ceremony, spirituality, realization space - resting body and mind

SMDTA12 signal generator is adjustable from 0.01 to 9999 Hz, the steps are as follows:
0.01-99.99Hz: Step 0.01Hz
100.0-999.9Hz: Step 0.1Hz
1000-9999Hz: Step 1Hz

Note: To experience the Schumann Resonance effect, you need to purchase an antenna.

How to use:
1 We assume that you have purchased the Signal Generator and Antenna
2 Use a 3.5MM audio cable to connect the signal generator and antenna
3 Use a TYPE-C power supply to connect the signal generator
4 Automatically send a 7.83HZ signal after powering on.


Q&A:

Q1:How to adjust the frequency

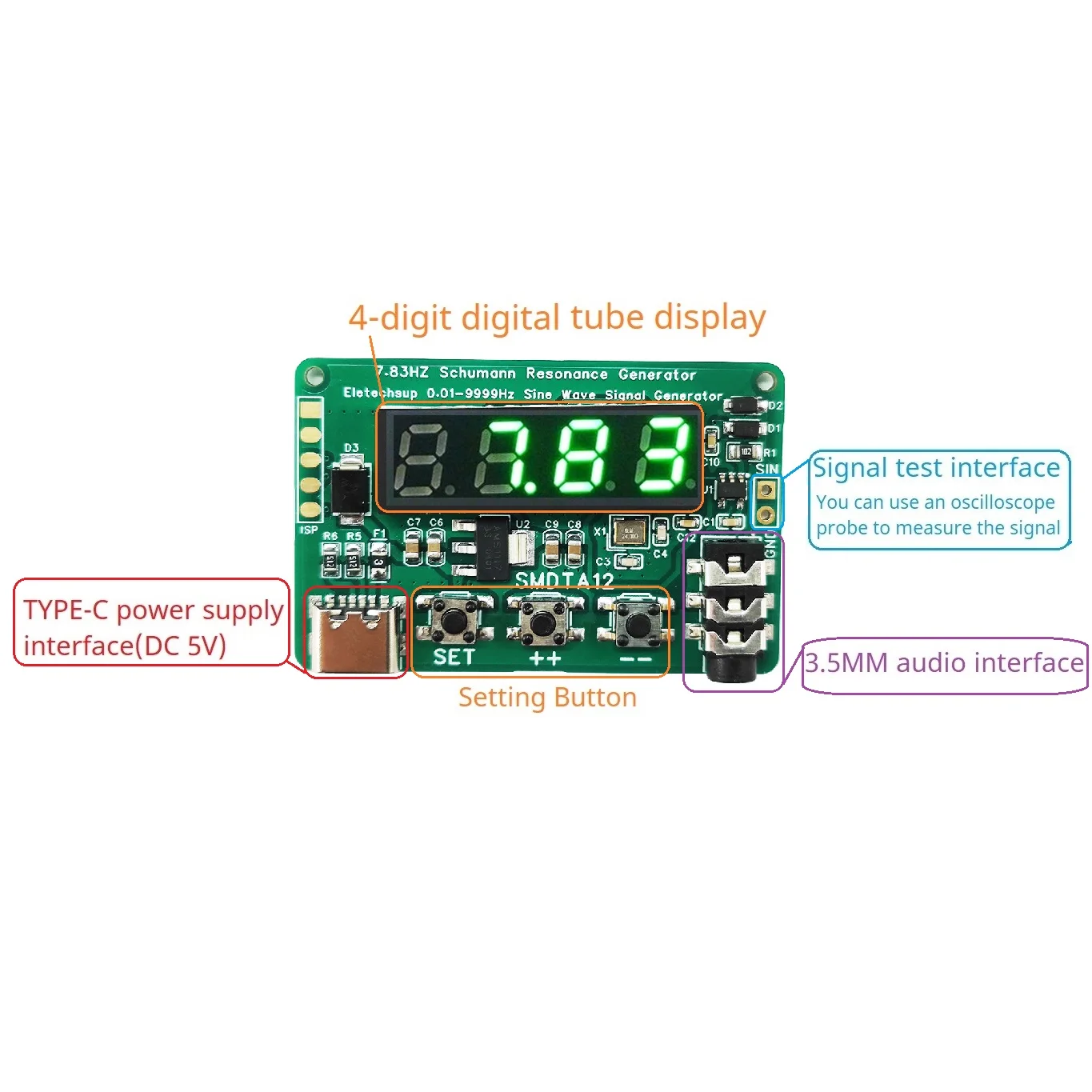

1 When powered on, the digital tube displays the frequency. Press the ''SET'' button, the last decimal point flashes, and the setting mode is entered.
2 Press the ''++''/''--'' button to increase or decrease the frequency. Long press to speed up the adjustment.
3 After setting the frequency you need, press ''SET'' again to exit the setting and save the parameters.

Q2:Need to save parameters even after power off?
A2: Please press and hold the ''++'' Button until the LED displays ''S-N''

Q3 How to restore factory settings:
1 Normally, power on again to restore default settings.
2 If the power-off save function is enabled, please press and hold the ''++'' Button until the LED displays ''S-F'', then power on again to restore factory settings.

Q4: How to turn off the digital tube?
A4:Press and hold the ''--'' button until the digital tube displays ''S-P''. The digital tube will automatically turn off after 10 seconds.

Q5 Why does the digital tube automatically turn off after 10 seconds?
This is because the energy saving mode is turned on. Press and hold the ''--'' button until ''N-P'' is displayed.

Q6: How to verify the output waveform?
A6: Please use an oscilloscope to measure the ''GND/SIN'' port. You can see a pure sine wave.
