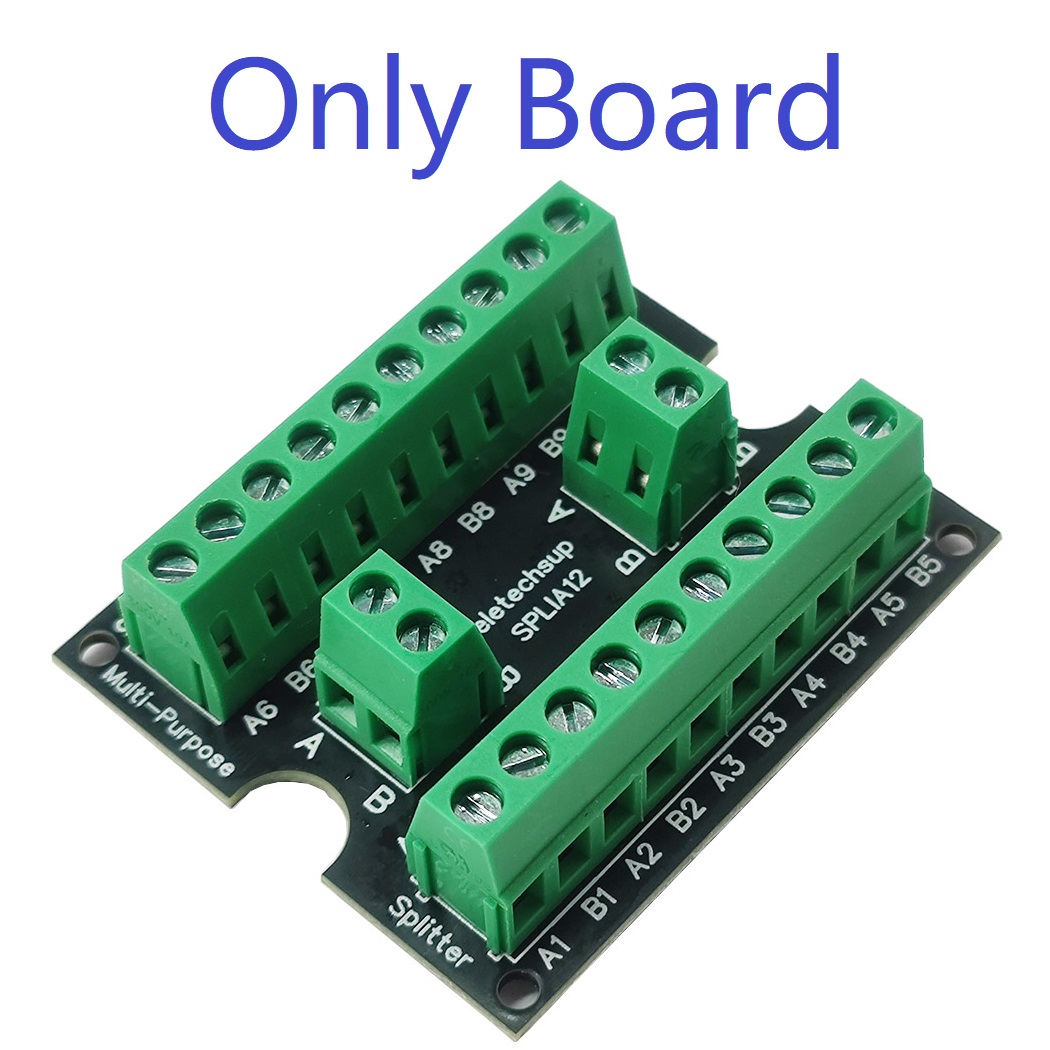

SPLIA12 is a 2-wire multi-function splitter designed and produced by eletechsup. This board can be used to easily connect multiple electrical devices or bus devices.
Specification:
10Amp DC 1-100V AC 85-265V 2x10 position screw terminal block distribution module. Support for multiple module extension connections.
Rated current 10Amp(total input or output), Maximum voltage DC 100V/AC 265V.
A / B terminal blocks, Pitch 5mm/0.197'', Wire range 22AWG ~ 12AWG / 2.5mm square. Rated current 10Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
Function:
Voltage: DC 1-100V /AC 85-265V
Current: 0-10A
Branch port: 1 input, 11 output, multiple cascade expansion output terminals are available
Wiring terminal: KF128-5.0
Wire Range: AWG22-12
Size: 59*50*18MM (Only Board), 66*53*31MM (With DIN Shell)
Weight: 37g (Only Board), 62g (With DIN Shell)
Advantage:
1 Only routing on the bottom layer of PCB to ensure electrical safety
2 With DIN housing, it can be easily embedded in the cabinet
Typical Applications:
Used for power distribution within 10A.
Load: Lights, LEDs, refrigerators, air conditioners, motors, and other household appliances
Used for two-wire bus branching within 10M, such as: RS485 I2C CAN 1-Wire
With guide rail slot, can be installed in the chassis with standard guide rail
