Design intention: There are many USB to RS485/232/TTL products on the market. However, we found that there are few products with strong anti-interference and fast speed. Therefore, ELETECHSUP decided to break the convention and use the high-speed USB to serial port chip CH343 plus input and output protection circuit to design a product with both high speed and stability.
Packing list:
1 PCSIndustrial-Grade USB to RS485/RS232/TTL Converter
（Please select the version you want to purchase）
USB TO RS485(UB485A1) Function:
USB driver chip: CH343G (USB-Enhanced-SERIAL)
RS485 bus chip: SP485(Industrial-Grade RS485 BUS IC)
Baud rate :0.05K-6000Kbps
Overcurrent protection
ESD protection
TVS Surge protection
PWR TX RX Indicator
PIN: GND A+ B-
PWE TXD TXD Indicator Light
Size:74*24*15mm
Weight:15g
USB TO RS232(UB232B1) Function:
USB driver chip: CH343G (USB-Enhanced-SERIAL)
RS232 bus chip: SP232EEN(Industrial-Grade RS232 BUS IC)
Baud rate :0.05K-235Kbps
Overcurrent protection
ESD protection
TVS Surge protection
PWR TX RX Indicator
PIN: GND TX RX
PWE TXD TXD Indicator Light
Size:74*24*15mm
Weight:15g

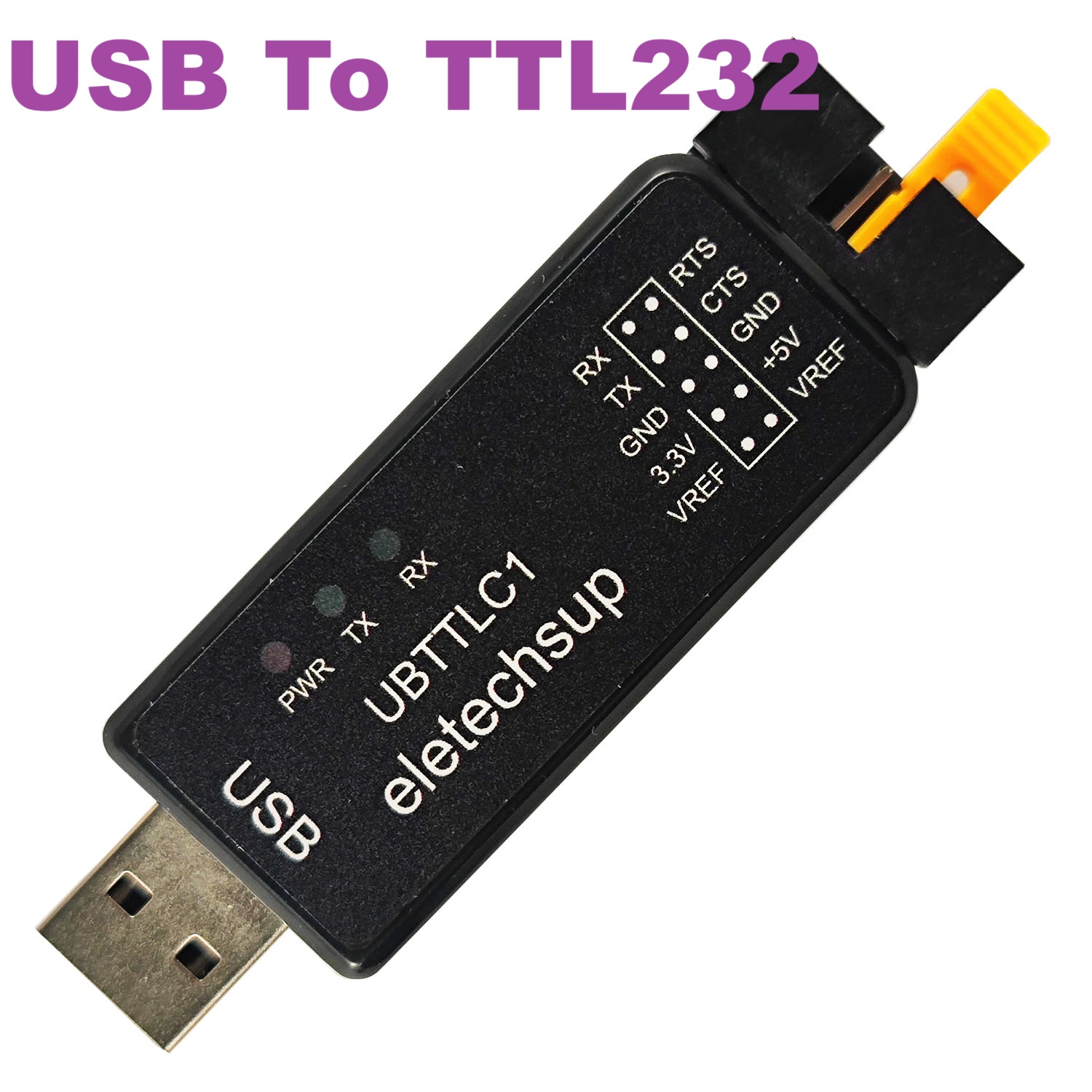

USB TO TTL232(UBTTLC1) Function:
USB driver chip: CH343G (USB-Enhanced-SERIAL)
Baud rate :0.05K-6000Kbps
Overcurrent protection
ESD protection
TVS Surge protection
PWR TX RX Indicator
PIN: GND A+ B-
PWE TXD TXD Indicator Light
Size:74*24*15mm
Weight:14.5g
Description:
This is Industrial grade USB TO RS485/RS232/TTL232 Converter
The USB driver IC is USB-Enhanced-SERIAL CH343, stable performance, fully compatible with USB1.1,USB2.0,USB3.0
Supports the following OSes:
supports Windows 11/10/8.1/8/7/VISTA/XP/2000/98
supports Windows XP/Vista/7/8/8.1/10/11/ SERVER 2003/2008/2012/2016/2019/2022 -32/64bit
Linux OS
MAC OS
