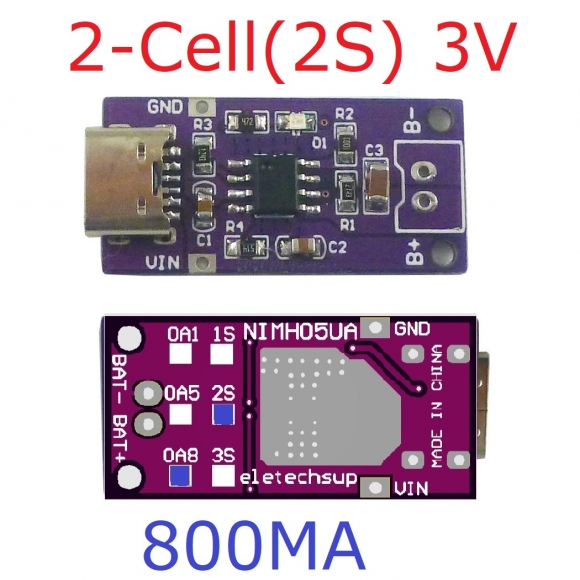

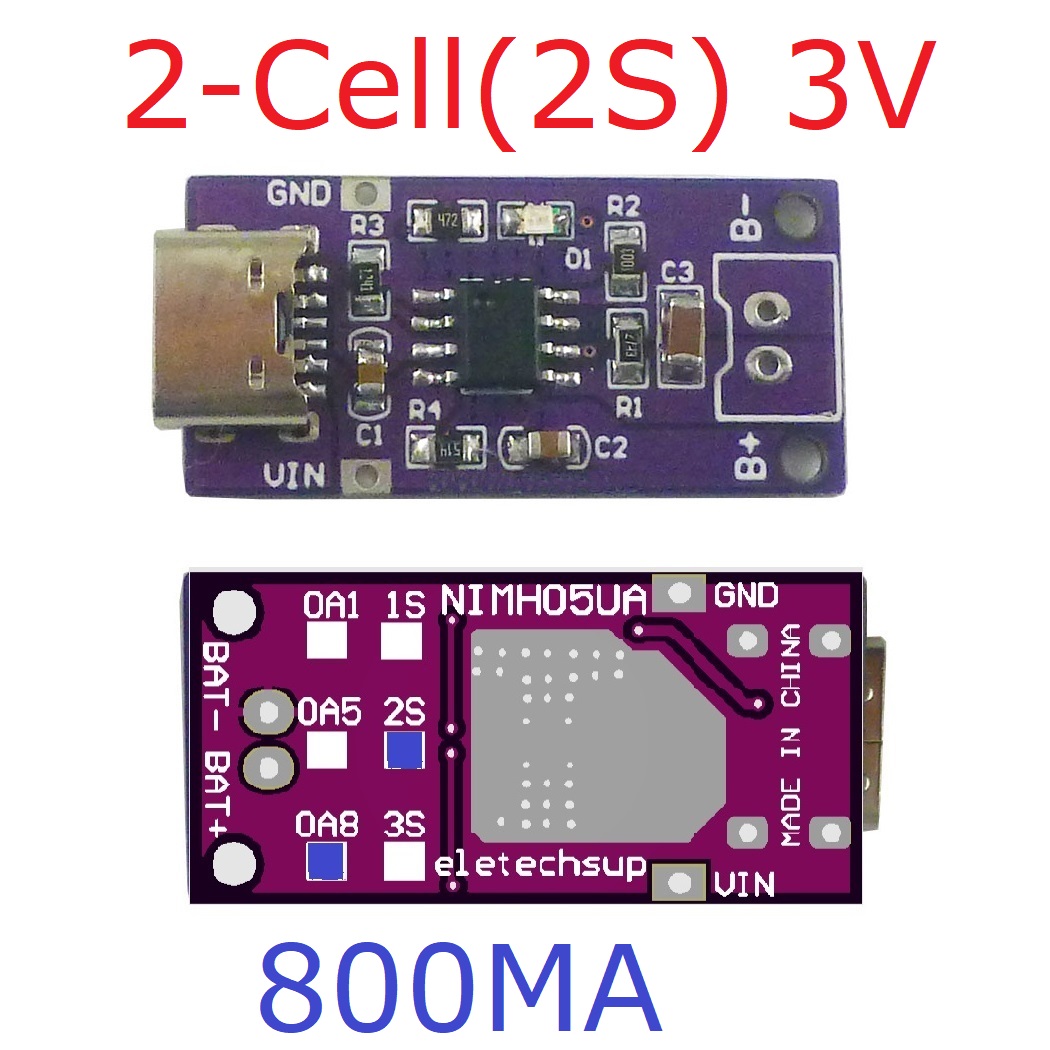

NIMH05UA 2S 0.8A TYPE-C 2 Cell NIMH Battery Charger Module 1.5V 3V 4.5V for 1.2V 2.4V 3.6V Nickel-Metal Hydride Battery 800MA

NIMH05UA 2S 0.8A TYPE-C 2 Cell NIMH Battery Charger Module 1.5V 3V 4.5V for 1.2V 2.4V 3.6V Nickel-Metal Hydride Battery 800MA

  • Model: NIMH05UA_2S_0A8
  • Availability: In stock
  • Weight: 0.003Kg
$2.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name: TYPE-C 1/2/3-Cell NIMH Battery Charger Module 1.5V 3V 4.5V for 1.2V 2.4V 3.6V Nickel-Metal Hydride Battery 100MA/500MA/800MA

Packing list:

1 Pcs 1-3 cell NINH Nickel-Metal Hydride Battery Charger Module
(Please choose the parameters you need when purchasing)




Description:

1-Cell(1S) 1.5V Version:

Input voltage : DC 3.5V-6V(Recommend DC 5V)
Charging voltage : 1.5V
Charging current : 100MA/500MA/800MA

2-Cell(2S) 3V Version:

Input voltage : DC 3.7-6V(Recommend DC 5V)
Charging voltage : 3V
Charging current : 100MA/500MA/800MA

3-Cell(3S) 4.5V Version:

Input voltage : DC 5-6V(Recommend DC 5V)
Charging voltage : 4.5V
Charging current : 100MA/500MA/800MA

Precharge Conditioning for reviving deeply discharged cells and inimizing heat dissipation during initial stage of charge

Constant-Current/Constant-Temperature operation with thermal regulation to maximize charge rate without risk of overheating

Automatic Low-Power Sleep Mode when input supply voltage is removed

Indicators for Charge and termination status

Maintenance Charge Mode(Timer Termination)

Automatic Recharge

Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°
Size : 32mm x 15mm x 4mm
Weight : 2.1g


Applications:

kids toys car
Digital Cameras
Solar charging
Bluetooth Applications
Audio equipment
Digital Camera
Electronic Dictionary
Portable Devices
Nickel Metal Hydride Battery Charger







Led indicator :
Bright: Charging; Off: full; If you want to increase the brightness of the LED, change the resistor R5.



The charging current can be changed by changing the value of resistor R3
0805 1% SMD resistor is recommended

The charging Voltage can be changed by changing the value of resistor R1
Vch = 1.205*(1+R1/100K)

The charging voltage can be changed by changing the value of the resistor R1. The following batteries can be charged:
