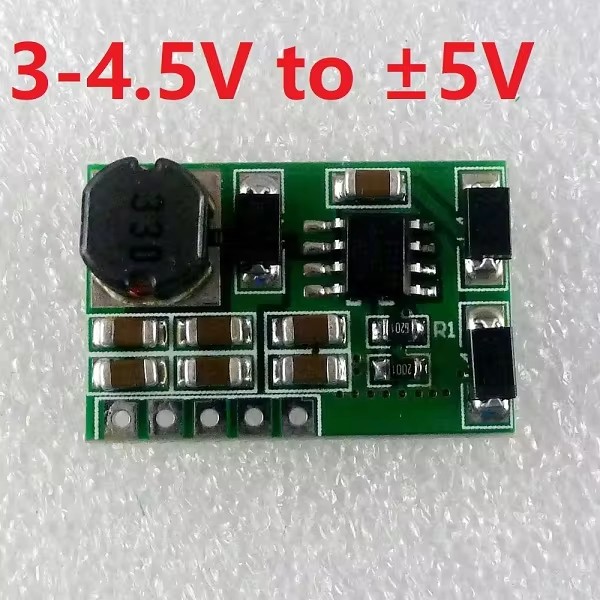

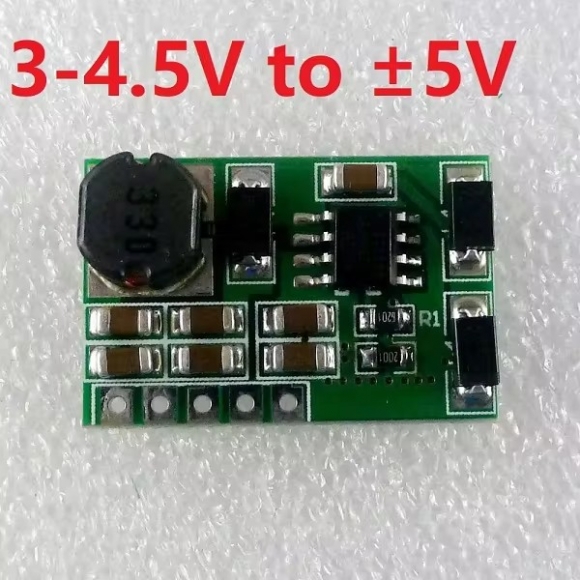

Product Name: +- 5V 6V 9V 12V 15V 24V Positive And Negative Dual Output Power Supply DC-DC Step-up Boost Converter Module

Packing list:

1PCS Positive and negative voltage Dual voltage DC DC Boost Converter Module









Description:








±5V :




Input voltage DC 3 ~ 4.5V,output DC ±5V(Deviation is ±5%)



Maximum input current 2A



Maximum output current : +Vo is 1A,-Vo is 200mA









±6V :




Input voltage DC 3 ~ 5V,output DC ±6V(Deviation is ±5%)



Maximum input current 2A



Maximum output current : +Vo is 1A,-Vo is 200mA









±9V :




Input voltage DC 3.3~ 8V,output DC ±9(Deviation is ±4%)



Maximum input current 1.8A



Maximum output current : +Vo is 800mA,-Vo is 180mA









±12V :




Input voltage DC 3.3~ 11V,output DC ±12(Deviation is ±4%)



Maximum input current 1.8A



Maximum output current : +Vo is 700mA,-Vo is 150mA









±15V :




Input voltage DC 3.3~ 13V,output DC ±15(Deviation is ±4%)



Maximum input current 1.8A



Maximum output current : +Vo is 600mA,-Vo is 120mA








±24V :




Input voltage DC 3.6~ 18V,output DC ±24(Deviation is ±4%)



Maximum input current 1.8A



Maximum output current : +Vo is 400mA,-Vo is 100mA



Quiescent current: 3-4mA



DC DC Boost Converter Module working frequency 400kHz.



Operating temperature range : -40~+125 Degrees Celsius



Storage temperature range : -65~+150 Degrees Celsius



2.54mm pin pitch,for MCU Development Board Breadboard friendly.



Size : 25 x 16.3 x 6.6mm



Weight :with Pin 3.4g,no Pin 3g


Internal Optimize Power MOSFET



High efficiency up to 90%



Built in Frequency Compensation



Built in Soft-Start Function



Built in Thermal Shutdown Function



Built in Current Limit Function



Note:




1 Due to the diode partial pressure, the voltage of -Vo is lower than +Vo




2 In order to obtain a more stable voltage, it is recommended that the output is greater than 15MA




-Vo cannot be used alone, or no voltage output.But you can just use +Vo



Applications



ADC/DAC/Operational Amplifier



RS232 RS485 RS422 Bus



Audio equipment



LCD power supply



Instrumentation equipment



MCU Board



Motor Power



Instrumentation multimeter



Wifi/Router/Ethernet devices







Attention :







This is a DC-DC voltage converter module,Must be noted when using:



1 Input voltage can not be greater than the maximum input range

2 Output power can not be greater than the maximum load for a long time

3 Input power must be greater than the output power, because the power consumption of the module itself







Q & A:








Q : Why output voltage is less than the nominal voltage




A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
