1 pcs1/2/4 Channel DC 5V/12V BistableSelf-locking Relay Module
Description:
Standby current: 0.1mA
1 Channel DC 12V Self-locking Relay Module(version 2) :
Size: 48mm * 16mm * 18.5mm (L * W * H), Very small size
2 Channel DC 5V Self-locking Relay Module(version 3) :
Standby current: 0.2mA
Size: 36mm * 32.3mm * 18.5mm (L * W * H)
Weight: 24.5 g
2 Channel DC 12V Self-locking Relay Module(version 4) :
Working voltage: DC 6-24V(Recommended DC 9V 12V)
Working current: 1 relay 70MA;2 relay 140MA;
Standby current: 0.25mA
Load current : AC 250V/10A, DC 30V/10A
Trigger mode: Low pulse trigger
Size: 48mm * 32.3mm * 18.5mm (L * W * H), Very small size
Weight: 27.6 g
4 Channel DC 5V Self-locking Relay Module(version 5) :
Working voltage: DC 5V
Working current: 1 relay 70MA;2 relay 140MA;3 relay 210MA;4 relay 280MA
Standby current: 0.41mA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger
Size: 65mm * 42mm * 18.5mm (L * W * H)
Weight: 52.4 g
4 Channel DC 12V Self-locking Relay Module(version 6) :
Working voltage: DC 6-24V(Recommended DC 9V 12V 24V)
Working current: 1 relay 37MA;2 relay 73 MA; 3 relay 1 10MA; 4 relay 146 MA
Standby current: 2mA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger
Size: 65mm * 47mm * 18.5mm (L * W * H)
Weight: 56.8g
USE 1:

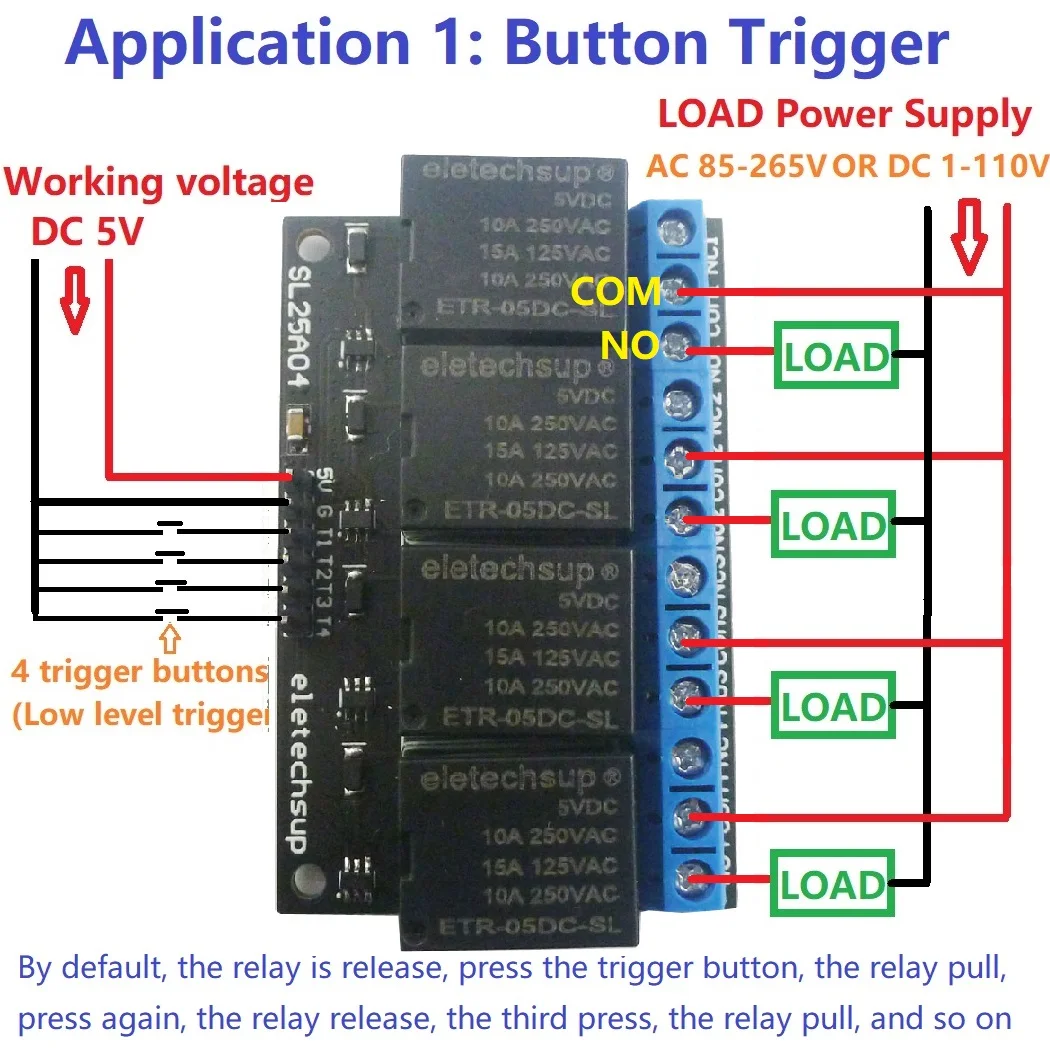

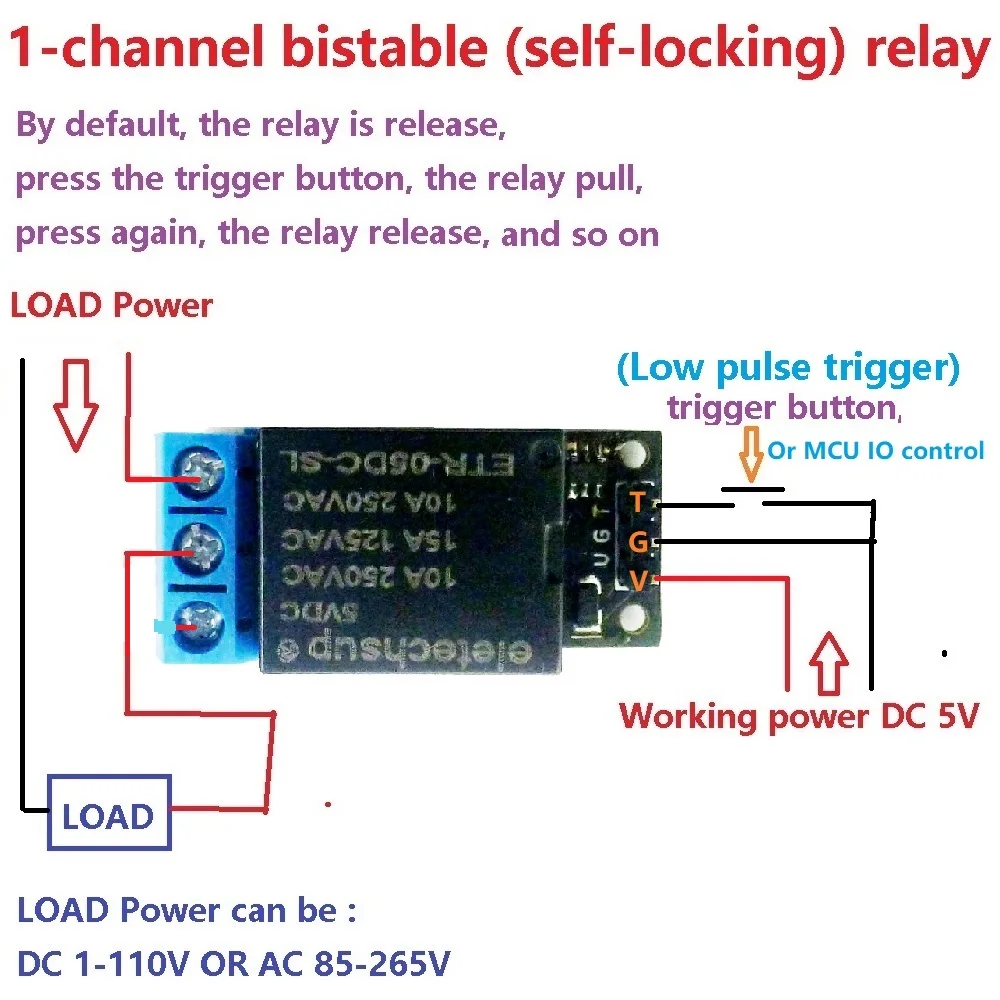

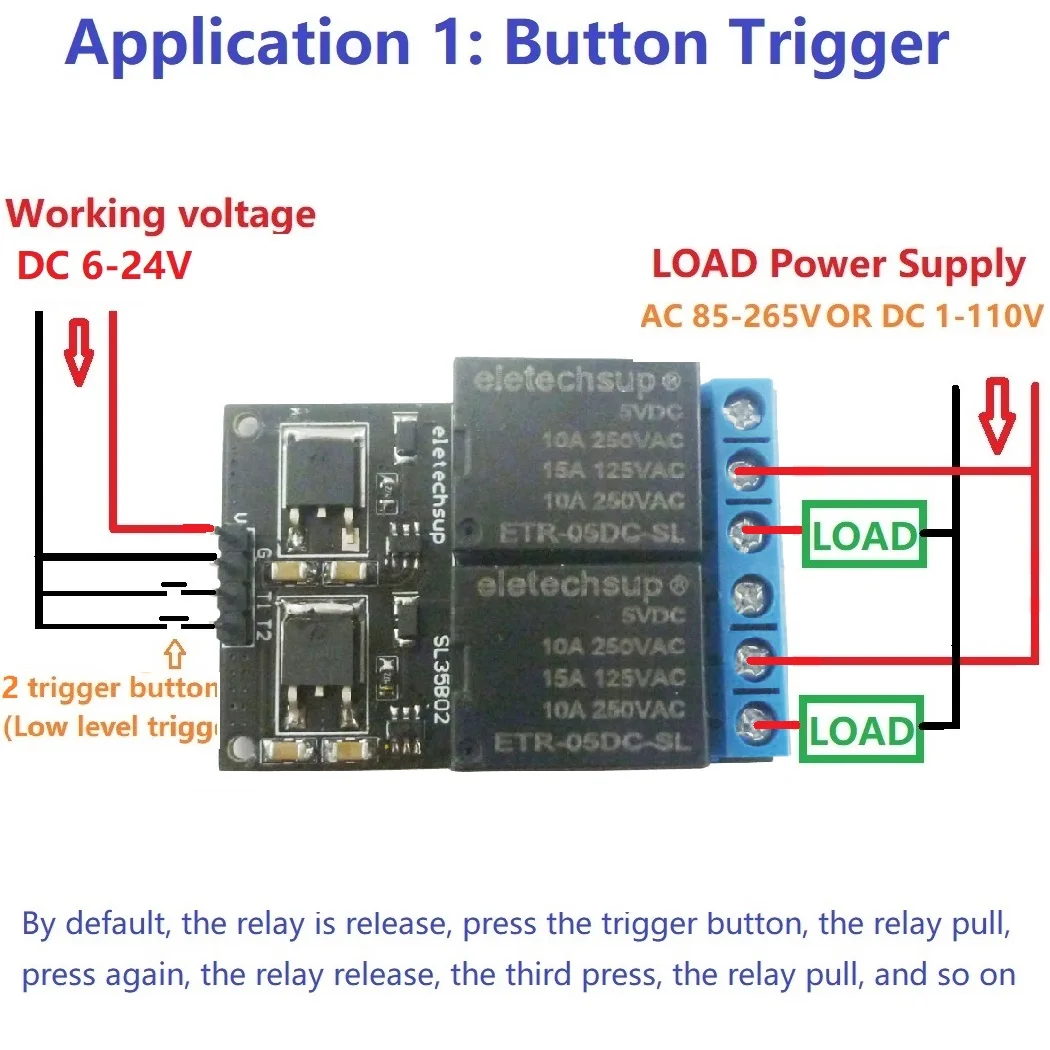

By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on.

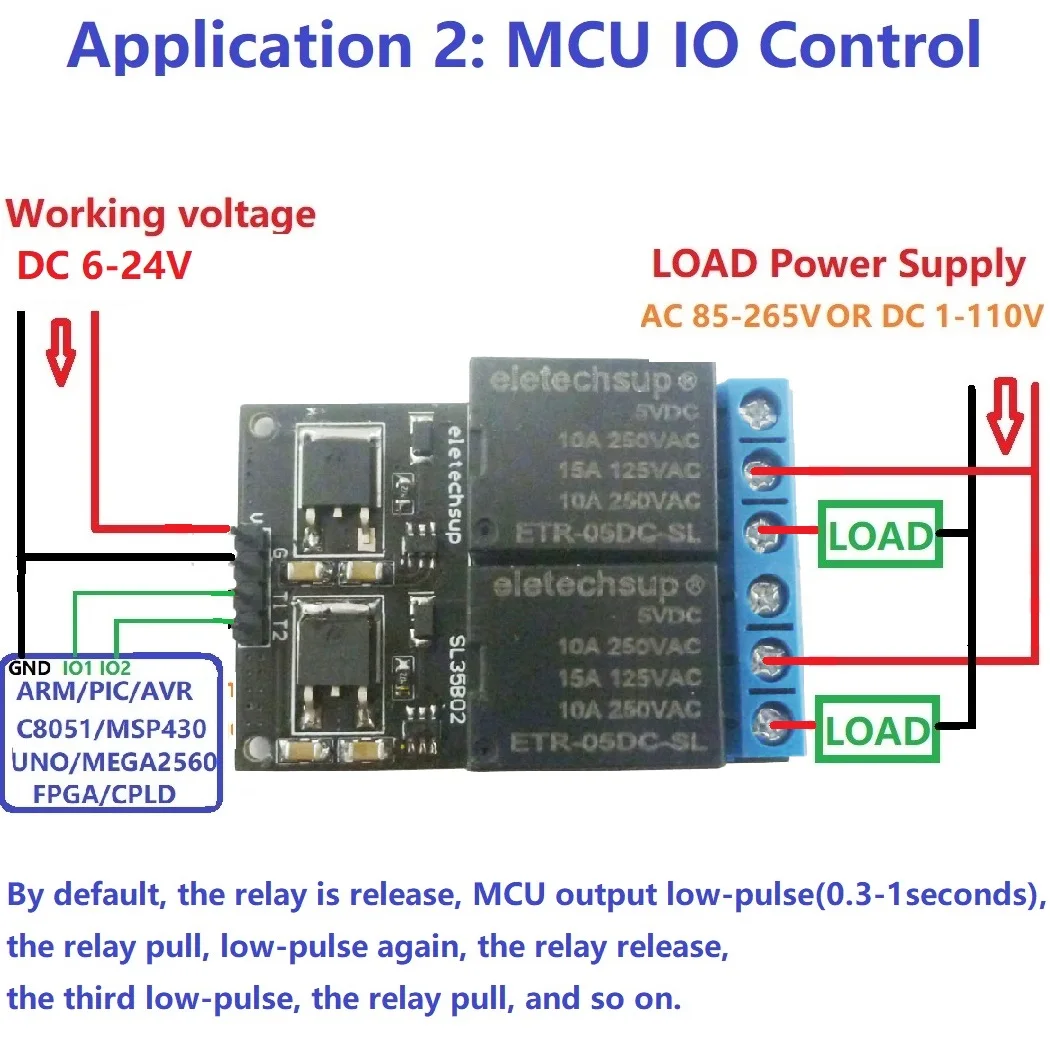

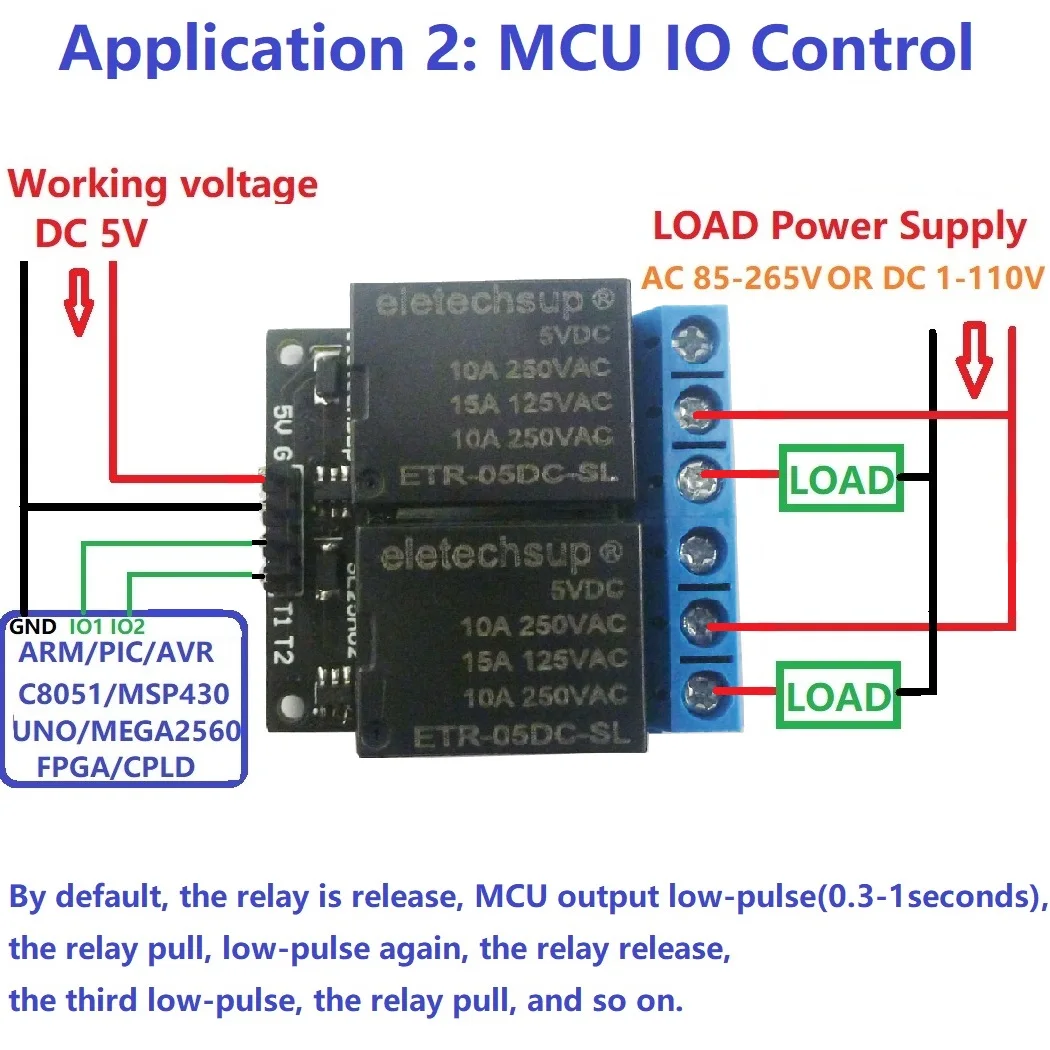

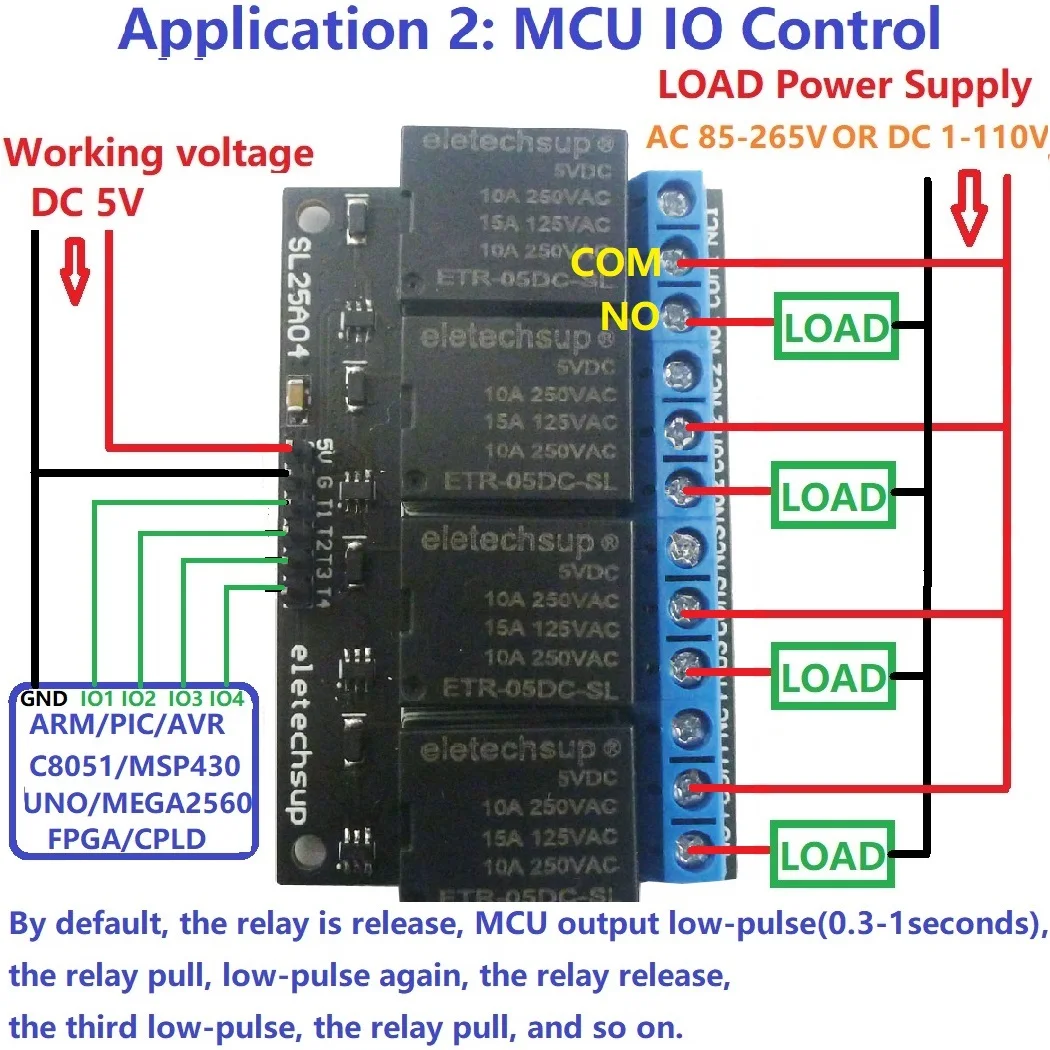

By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, the
third low-pulse, the relay pull, and so on.
Module interface:
2. COM: Common Interface Relays
3. NC: normally closed relay interface
Typical applications:
Automotive electronics
Motor/PLC/LED
Smart Home/Home automation
Emergency lighting
MCU development board
Toy car
UNO MEGA2560 raspberry pi
diy electronic kit
