SL35B02 (12V 2 channel) 5V-24 1-4CH Flip-Flop Relay Module Bistable Self-locking Trigger Time Switch Turn on/off PLC Board

SL35B02 (12V 2 channel) 5V-24 1-4CH Flip-Flop Relay Module Bistable Self-locking Trigger Time Switch Turn on/off PLC Board

  • Model: SL35B02
  • Availability: In stock
  • Weight: 0.042Kg
$3.53
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns

Packing list:

1 pcs1/2/4 Channel DC 5V/12V BistableSelf-locking Relay Module

Please select the version you need














Description:

1 Channel DC 5V Self-locking Relay Module(version 1) :

Working voltage: DC 5V

Working current: 62-70MA

Standby current: 0.1mA

Load current: AC 250V / 10A, DC 30V / 10A

Trigger mode: Low pulse trigger

Size: 35mm * 16mm * 18.5mm (L * W * H), Very small size

Weight: 12.5 g









1 Channel DC 12V Self-locking Relay Module(version 2) :


Working voltage: DC 6-24V(Recommended DC 9V 12V)

Working current: 61-70MA

Standby current: 0.12mA


Load current : AC 250V/10A, DC 30V/10A


Trigger mode: Low pulse trigger


Size: 48mm * 16mm * 18.5mm (L * W * H), Very small size


Weight: 14 g













2 Channel DC 5V Self-locking Relay Module(version 3) :


Working voltage: DC 5V

Working current: 1 relay 70MA;2 relay 140MA;


Standby current: 0.2mA

Load current: AC 250V / 10A, DC 30V / 10A


Trigger mode: Low pulse trigger


Size: 36mm * 32.3mm * 18.5mm (L * W * H)


Weight: 24.5 g

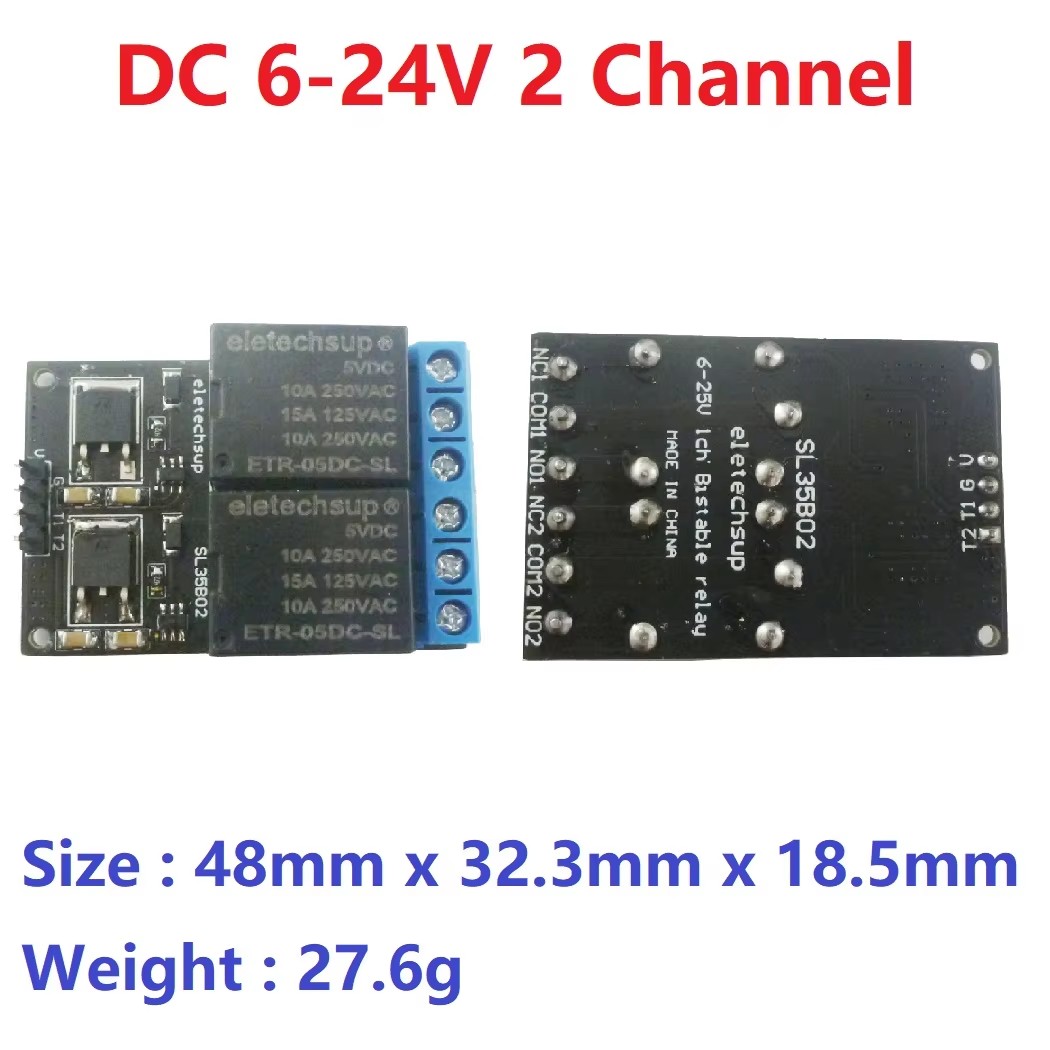

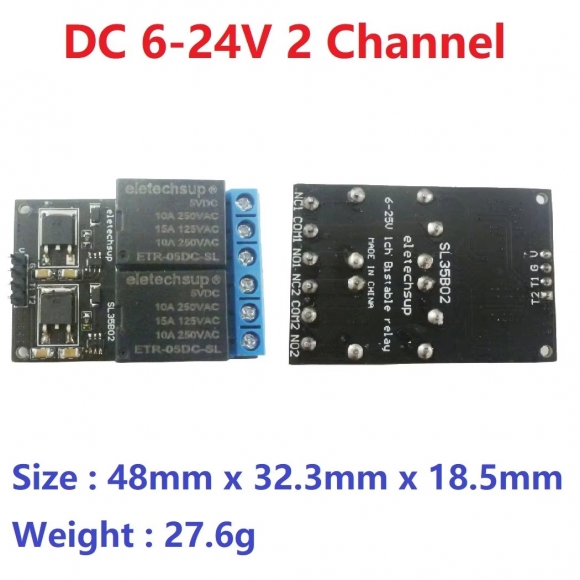

2 Channel DC 12V Self-locking Relay Module(version 4) :


Working voltage: DC 6-24V(Recommended DC 9V 12V)
Working current: 1 relay 70MA;2 relay 140MA;
Standby current: 0.25mA
Load current : AC 250V/10A, DC 30V/10A
Trigger mode: Low pulse trigger
Size: 48mm * 32.3mm * 18.5mm (L * W * H), Very small size
Weight: 27.6 g




















4 Channel DC 5V Self-locking Relay Module(version 5) :




Working voltage: DC 5V
Working current: 1 relay 70MA;2 relay 140MA;3 relay 210MA;4 relay 280MA
Standby current: 0.41mA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger
Size: 65mm * 42mm * 18.5mm (L * W * H)
Weight: 52.4 g

















4 Channel DC 12V Self-locking Relay Module(version 6) :


Working voltage: DC 6-24V(Recommended DC 9V 12V 24V)
Working current: 1 relay 37MA;2 relay 73 MA; 3 relay 1 10MA; 4 relay 146 MA
Standby current: 2mA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger
Size: 65mm * 47mm * 18.5mm (L * W * H)
Weight: 56.8g




USE 1:

By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on.


USE 2:


By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, the


third low-pulse, the relay pull, and so on.


Module interface:


1. V: positive power supply (VCC)


2. G: negative power supply (GND)


3. T (T1/T2/T3/T4): Low pulse trigger


Relay outputs:


1. NO: normally open relay interface


2. COM: Common Interface Relays


3. NC: normally closed relay interface


USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on



Typical applications:


Automotive electronics
Motor/PLC/LED
Smart Home/Home automation
Emergency lighting
MCU development board
Toy car
UNO MEGA2560 raspberry pi
diy electronic kit
