Package inlcuded:

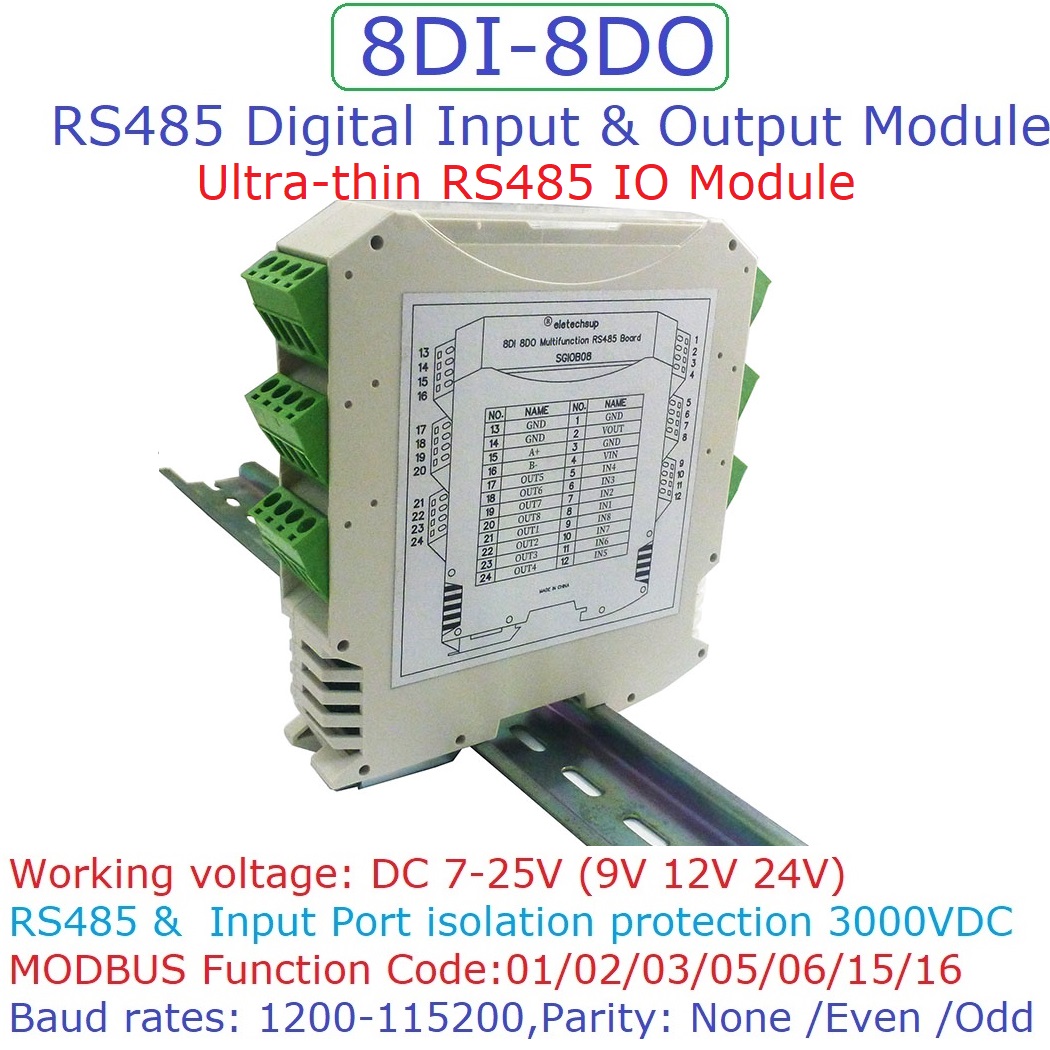

1 PCS DC 7-30V 8DI-8DO Safety Barrier RS485 Digital Input & Output IO Module
1 Product description
8ch optoelectronic isolation digital input channel (NPN Low level input)
8ch optoelectronic isolation digital output channel (ULN2803 NPN output)
RS485 MODBUS RTU standard communication protocol
Netted with configuration software, PLC or industry touch panel
Communication circuit designed for thunder protection and interference immunity
Used for signal collection and control in industrial field
2 Specification
1 Working voltage: DC 7-25V (9V 12V 24V)
2 Working current: 8-50MA
3 8 port optically isolated input ports (NPN active low)
4 8 port Darlington tube outputs (ULN2803 NPN output), the maximum load current of each channel is 300MA
5 RS485 communication isolation protection 3000VDC, DI digital input port isolation protection 3000VDC
6 Standard MODBUS RTU command (function code, 05/06/15/16 Write, 01/02/03 Read )
7 Baud rates: 1200 2400 4800 9600 (default) 19200 38400 57600 115200
8 Parity bits: None (default) /Even /Odd
9 Installation method Standard DIN rail installation
10 Size : 125×110×22mm
11 Weight: 130 grams
3 Interface definition:
Vi : Power input+
G: Power input-
Vo: =Vi
DO1: digital output channel 1
DO2: digital output channel 2
DO3: digital output channel 3
DO4: digital output channel 4
DO5: digital output channel 5
DO6: digital output channel 6
DO7: digital output channel 7
DO8: digital output channel 8
DI1 : Digital input channel 1
DI2 : Digital input channel 2
DI3 : Digital input channel 3
DI4 : Digital input channel 4
DI5 : Digital input channel 5
DI6 : Digital input channel 6
DI7 : Digital input channel 7
DI8 : Digital input channel 8
A+: RS485 signal A+
B-: RS485 signal B-
For more information, please contact me
Application
PLC DIO Output expansion board
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
Motor FW & BW
Automatic curtain control
Relay Solenoid valve
1 NPN Digital Input Wiring Diagram
2 NPN Digital output wiring diagram
Note: The Darlington tube has only two states of ''high resistance'' and ''conduction'', and the output level cannot be measured with a multimeter.
RS485 Networking Diagram
Modbus Rtu Register:
