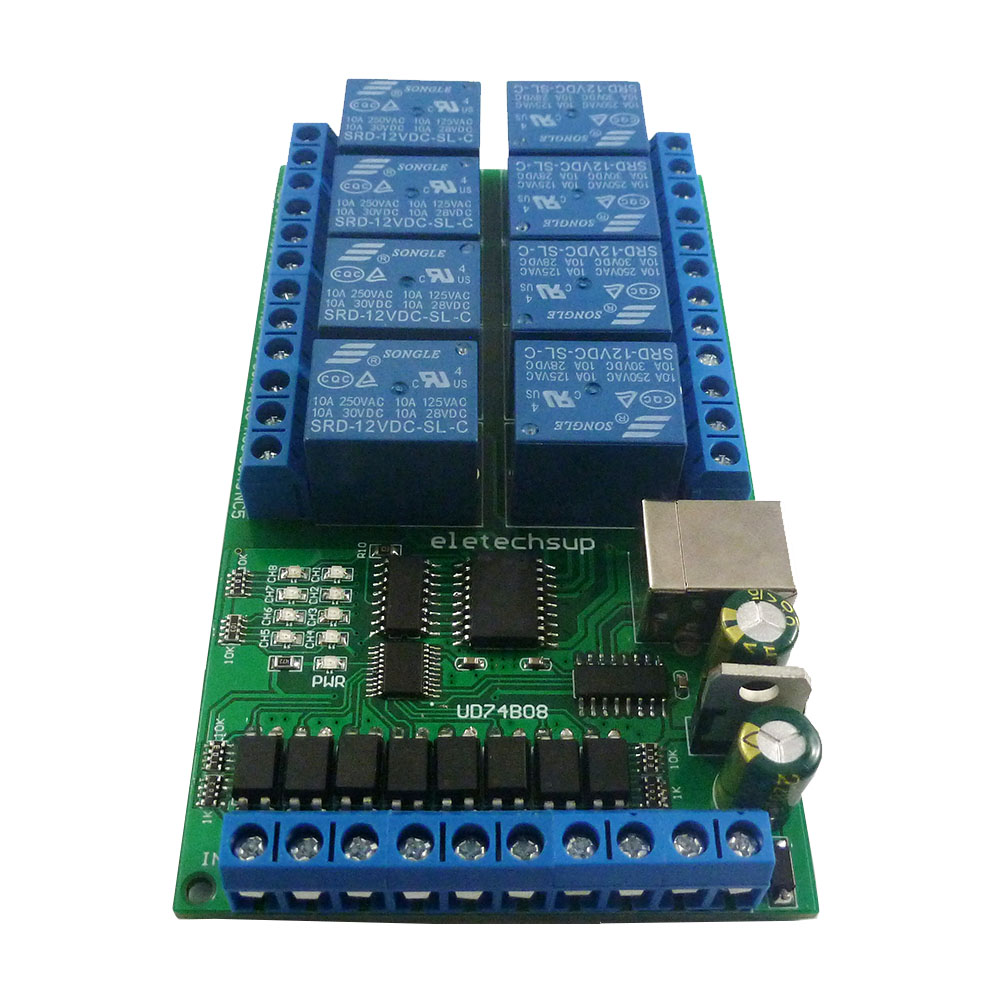

USB Serial Port Bpard 8CH Relay OUT & 8CH Optically isolated IN
Description:
1: Working voltage: DC 12V/24V optional
2: (DC12V)Standby current (all relays closed) 11MA, 1 relay open 39MA, 2 relays open 67MA, 3 relays open 94MA,4 relays open 120MA,5 relays open 146MA,6 relays open 172MA, 7 relays open 198MA,8 relays open 222MA 3 8 photoelectric isolation Input ports (NPN low level active ), the input and output relationship can be set to associated (default) and non-associated through commands. 4 UART serial port protocol, USB_B female interface (CH340 chip) 5 USB interface supports Windows(WIN10 WIN8 WIN7 WINXP), Linux and MAX operating systems 6: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''All Relays Open'' ''All Relays Close'' 8 Commands 7 Two kinds of commands: AT command and 8-byte command, the two commands are automatically recognized, no need to switch. 8: Under the ''Delay'' command ,the maximum delay is 9999 seconds(Only AT command) 9 Size: 111 * 63 * 19mm 10 Weight: 123 g 11 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
For more information, please contact me
Without the USB B cable, you need to purchase the USB cable separately.
Application
Remote control, remote measurement system; Wireless meter ;
Smart Home,Home Automation ,Wiser Home;
Access control ; Identification system ; Digital quantity acquisition; IT household appliance ; Intelligence household appliance; Baby monitoring system;
Typial application :
DC 1-110VAC 85-265V control circuit,Wiring diagram below(Note:If not DC5V/12V24V load, need another DC5V/12V24V power supply). ''LOAD'' may be LED lights, fans, motors Lights, fluorescent lights, solar water heaters and other DC AC equipment
|
