ETHUB18 1xNetwork to 8xRS485 1/8 Port Industrial Gateway Serial Server RJ45 to RS485 HUB Converter UDP TCP Modbus TCP RTU MQTT HTTP PLC

ETHUB18 1xNetwork to 8xRS485 1/8 Port Industrial Gateway Serial Server RJ45 to RS485 HUB Converter UDP TCP Modbus TCP RTU MQTT HTTP PLC

  • Model: ETHUB18_R
  • Availability: In stock
  • Weight: 0.15Kg
$33.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name: 1/8 Port Industrial Gateway Serial Server RJ45 to RS485 HUB Converter UDP TCP Modbus TCP RTU MQTT HTTP PLC

Package inlcuded:

1PCS 1 Port RS485 to 8 Port RS485 or 1PCS 1 Port Network to 8 Port RS485 or 1PCS 1 Port Network to 1 Port RS485
(Please select the version you need)

Description:

1xNetwork to 1xRS485 :

Working voltage : DC 12V (DC 6.5-25V)

Working current : 20-25mA

Work Mode: UDP,TCP Client,TCP Server,Modbus Slave,Modbus Master,MQTT

TVS anti-surge protection

The default baud rate is 9600BPS. The baud rate can be selected by WEB settings 1200 2400 4800 9600 19200 38400 57600 115200BPS

The parity can be none parity, even parity and odd parity

Size: 72 * 37 * 24mm(Only PCB Board);82 * 41*40mm(with Din Rail Box)

Weight: 24g(Only PCB Board);58g(with Din Rail Box)

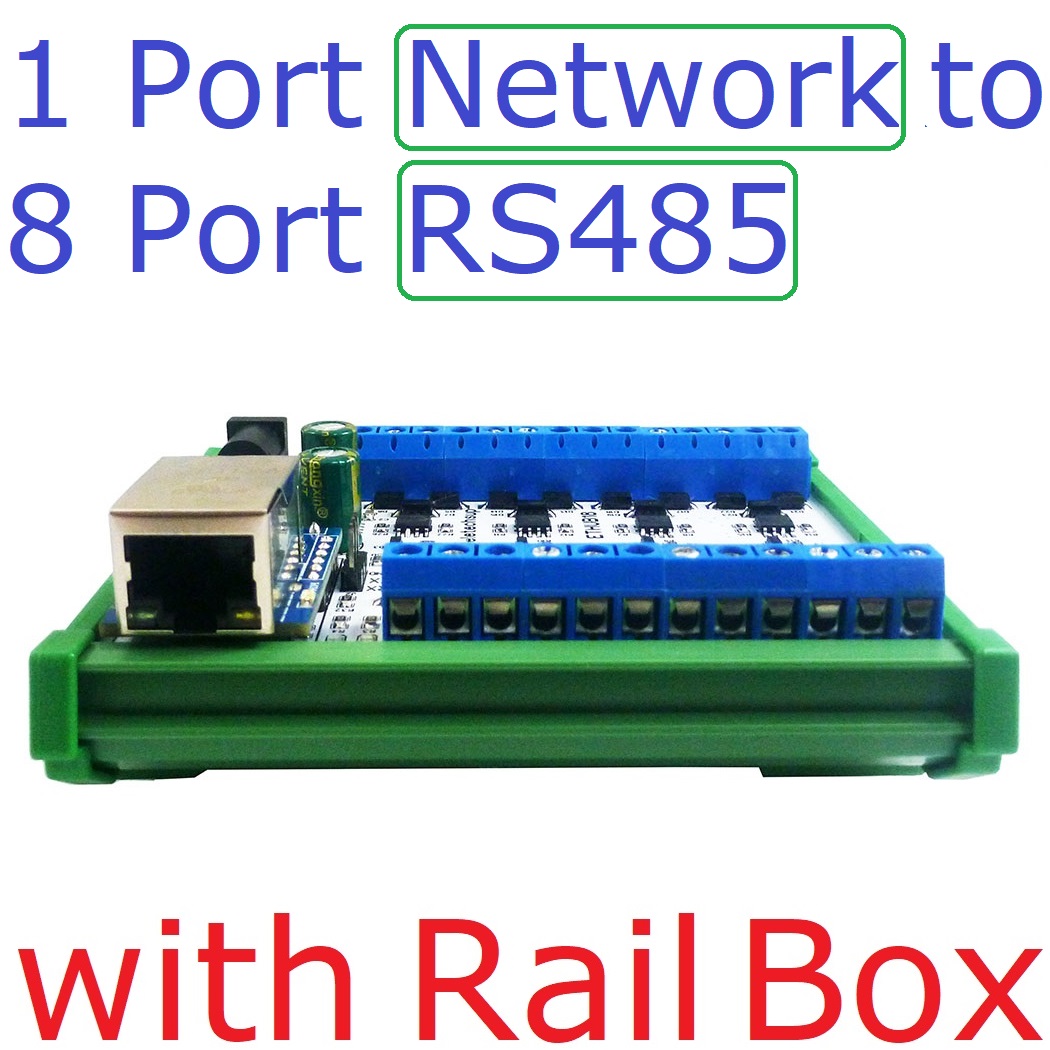

1xNetwork to 8xRS485:

Working voltage : DC 12V/24V (DC 7-30V)

Working current : 18-25mA

Work Mode: UDP,TCP,Modbus TCP to RTU,MQTT,HTTP

1 port Ethernet interface TO 8 port RS485 interface converter

TVS anti-surge protection

The default baud rate is 115200BPS. The baud rate can be selected by WEB settings 1200 2400 4800 9600 19200 38400 57600 115200 230400BPS

The parity can be none parity, even parity and odd parity

Size: 99mm*87mm*44mm(Only PCB Board);96mm*72mm*25mm(with Din Rail Box)

Weight: 62g(Only PCB Board);140g(with Din Rail Box)


1xRS485 to 8xRS485 :

Power Supply Voltage:DC8~30V,Power supply anti-reverse connection protection
Communication interface: RS-485
Communication rate:100bps-1000Kbps
Transmission medium:Two-core twisted pair shielded cable
Way of working:Asynchronous half duplex(RS-485)
Protection circuit: 400W surge protection, ±20KV ESD protection
Communication interface performance:Each 485 interface can connect 256 devices
Communication distance :The communication distance of 485 per road is increased by another 1,200 meters on the original basis
Power supply and signal indication:Power supply / receive LED, with a total of 10 red indicators
For all communication software, independent of the protocol, plug and play
Size:110mm*90mm*40mm
Weight:128.8g
Use environment:The temperature is -40°C to 80°C, and the relative humidity is 5% to 85%
Cascade:Supports cascading of hubs, the existing RS-485 bus has been extended to 8 high-reliability RS-485 interfaces, and 256 RS-485 devices can be connected hand in hand on each RS-485 interface at the same time

For more information, please contact me

Application

Ethernet to Nx port RS485
Support all RS485 devices of eletechsup, such as:
10IOA08/R4DCB08/R4D3B16/N4D3E16/N4AIA04
Smart Home,Home Automation ,Wiser Home;
Security Monitoring
Identification system;
IP Camera
LED Lamp Drivers
Automatic curtain control
