R46CA01 ANO 5V TTL232 NO DC 3.7-25V DS18B20 RS485 RS232 TTL Modbus RTU Temperature Sensor Remote Acquisition Monitor Module For Arduino PC PLC MCU

R46CA01 ANO 5V TTL232 NO DC 3.7-25V DS18B20 RS485 RS232 TTL Modbus RTU Temperature Sensor Remote Acquisition Monitor Module For Arduino PC PLC MCU

  • Model: R46CA01_ANO
  • Availability: In stock
  • Weight: 0.01Kg
$3.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name:DC 3.7-25V DS18B20 RS485 RS232 TTL Modbus RTU Temperature Sensor Remote Acquisition Monitor Module For Arduino PC PLC MCU



Packing list:

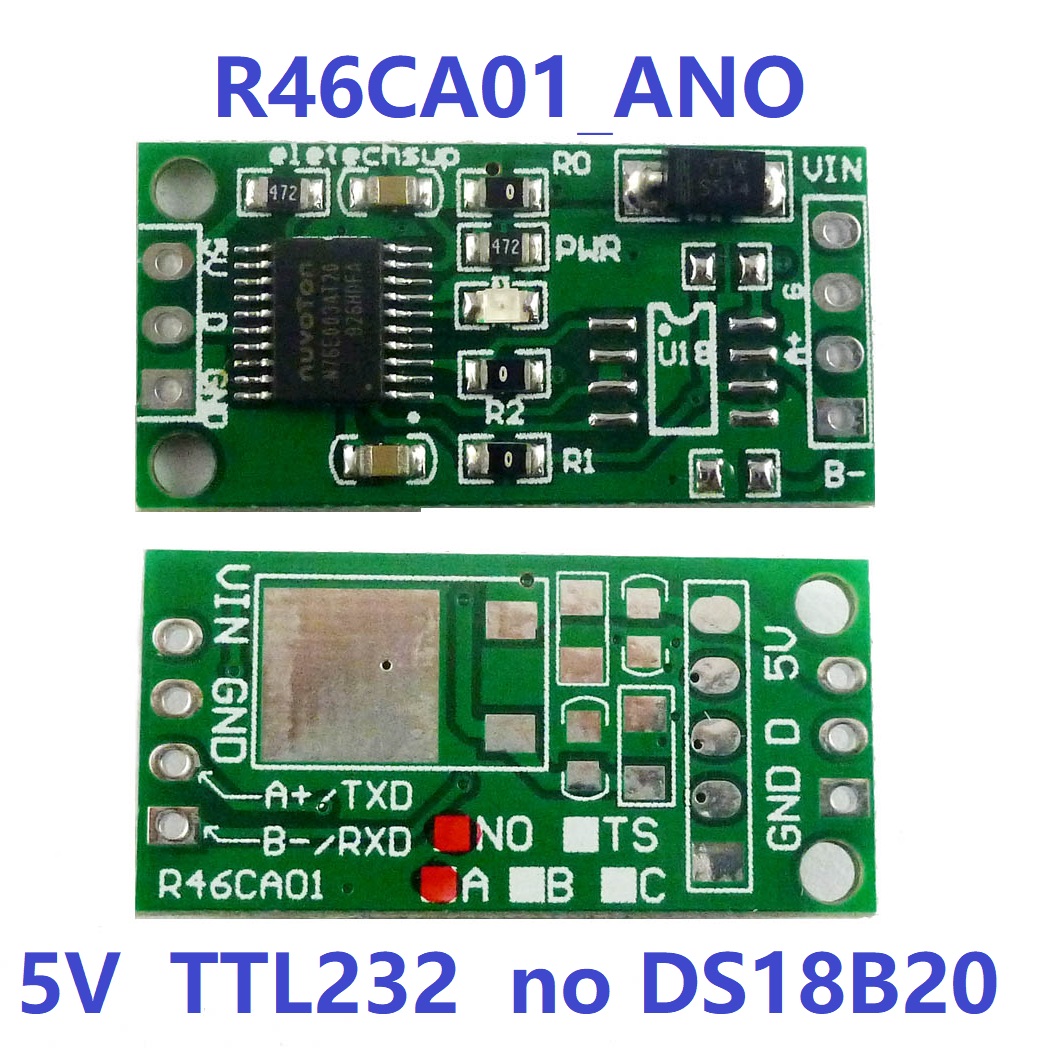

1 pcs R46CA01 RS485/TTL232 Temperature sensor Board(Please choose the version you need)


Description :

Working voltage :A/B 5V Version : DC 3.7-5.5V; C 12V Version : DC 6-25V

Working current:5-8MA

NO : no DS18B20 temperature sensor; TS : with DS18B20 temperature sensor

A: 5V version TTL232 interface;B: 5V version RS485 interface; C: 12V version RS485 interface

MODBUS RTU protocol,03 Read,06Write.

Serial baud rate:9600(default),N,8,1

By modifying the RS485 address, up to 247 module s can be connected (more than 16 US ether485 repeater)

Temperature sensor is DS18B20

Measures Temperatures from -55°C to +125°C(-67°F to +257°F)

±0.5°C Accuracy from -10°C to +85°C

Size:A/B Version 30X15X3.5mm; C Version 30X15X6mm
Weight:no DS18B20 1.4-1.9g,with DS18B20 1.9-2.2g

For more information, please contact us!!!

Typical application:

Thermostatic Controls
Industrial Systems
Consumer Products
Thermometers
Thermally Sensitive Systems
Indoor and outdoor temperature measurement
Temperature in vegetable garden
Weather forecasting, and monitoring
Temperature in Computer Room
Warehouse temperature
