DNR1A07 10M Step 0.1R Adjustable Potentiometer Programmable Resistance Module C35 DIN Rail Shell For Arduino MEGA PLC

DNR1A07 10M Step 0.1R Adjustable Potentiometer Programmable Resistance Module C35 DIN Rail Shell For Arduino MEGA PLC

  • Model: DNR1A07_R
  • Availability: In stock
  • Weight: 0.09Kg
$7.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns

Product model: 10M Step 0.1R Adjustable Potentiometer Programmable Resistance Module C35 DIN Rail Shell For Arduino MEGA PLC

Packing List:
1PCS 1M programmable potentiometer

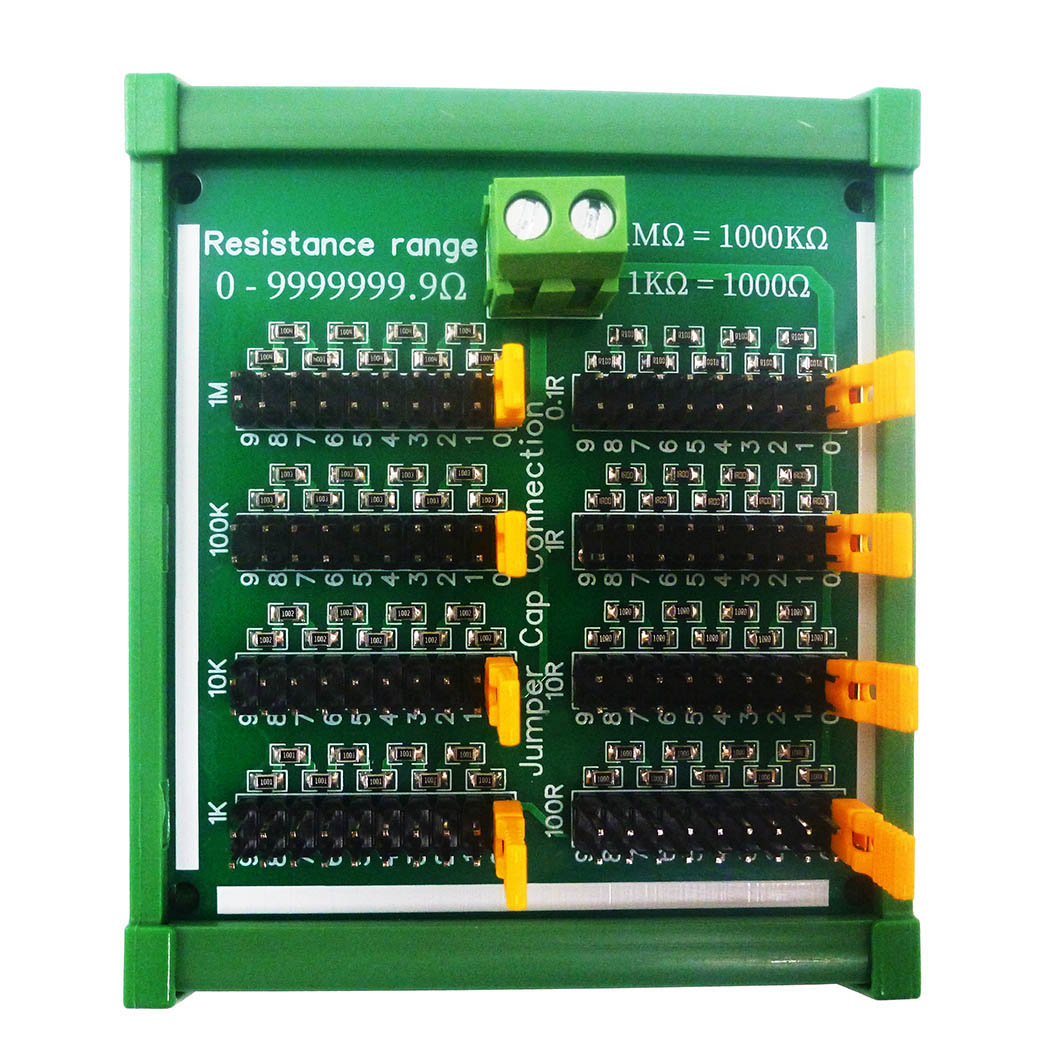

This is a low-cost and good alternative to ''resistor replacement box'', which can flexibly and quickly set the resistance range you need. This module has an adjustable resistance range of 0~9999999.9Ω, eight decimal programmable resistance modules, step 0.1R, resistance accuracy 1%, the resistance value of the resistor can be adjusted with a jumper cap. It can be used in education, experiment, testing, electronic engineering design and other fields.

Design principle: Design based on the ''resistance series'' theorem.

Product parameters:

Stepping : 0.1R

8 decimal modules

Resistance accuracy: 1%

Resistance tolerance: ±1%

Maximum working voltage: 220V

Adjustable resistance range: 0~9999999.9 Ω

Tolerance: 1/8 watt tolerance ±1% SMD resistor.

Resistance adjustment: You can use the jumper cap to adjust the resistance value you need
Terminals: screw terminals are used to connect wires quickly and easily

Weight with shell: 84.9g

Weight without shell: 27.5g

With shell size: 82*71*47mm

Size without shell: 72*68*18mm
