DM41A08 3-24V 8 Bit Red Common cathode LED indicator Bar Diy Kit for Arduno

DM41A08 3-24V 8 Bit Red Common cathode LED indicator Bar Diy Kit for Arduno

  • Model: DM41A08_R_GND
  • Availability: In stock
  • Weight: 0.004Kg
$2.07
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns

Product Name:3-24V 8 Bit Red LED indicator Bar Module Diy Kit for Arduino NANO MCU pi


Packing list:


 DC 3-24V 8 Bit Red Common anode LED Bar;



Description:


Can be inserted directly into Breadboard,Ideal for linking up to your  Arduiuo UNO Mini Nano Mega2560 DUE Breadboard etc,or others MCU ( AVR STM32 ARM7 ARM9 ARM10 ARM11 PIC C8051 STC MSP430 FPGA/CPLD etc.)

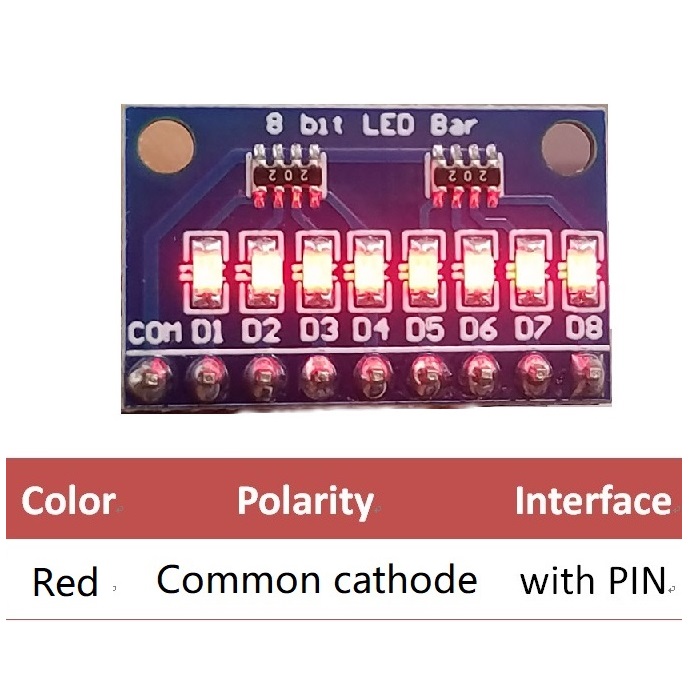

DC 3.3V 3.7V 5V 12V 24V 8 Bit Red Common anode LED Bar

Color : Red
Working Voltage : DC 3-24V
Polarity : Common anode/Common cathode
Interface : 2.54MM with PIN/2.54MM no PIN

Size: 22.86 x 14.13 x 2.11 mm
Weight : 1.3g(with Pin),0.75g(no Pin)

Application :

MCU/ARM/FPGA/Atmega328p
PLC Motor
Electronic diy kit
ESP8266/nodemcu
NANO/UNO/MEGA2560/Breadboard
Raspberry pi 4/robot



Circuit schematics :

Connection with UNO








Arduiuo uno/mega2560 Code
//******************************************************//

/*
  Arduiuo_8led

  This example code is in the public domain.
 */

// give it a name:
int D1 = 9;
int D2 = 8;
int D3 = 7;
int D4 = 6;
int D5 = 5;
int D6 = 4;
int D7 = 3;
int D8 = 2;

// the setup routine runs once when you press reset:
void setup() {
  // initialize the digital pin as an output.
pinMode(D1, OUTPUT);
pinMode(D2, OUTPUT);
pinMode(D3, OUTPUT);
pinMode(D4, OUTPUT);
pinMode(D5, OUTPUT);
pinMode(D6, OUTPUT);
pinMode(D7, OUTPUT);
pinMode(D8, OUTPUT);
}

// the loop routine runs over and over again forever:
void loop() {

  digitalWrite(D1, HIGH);   // turn the LED on (HIGH is the voltage level)
  delay(200);               // wait for a 200 Millisecond
  digitalWrite(D1, LOW);    // turn the LED off by making the voltage LOW

  digitalWrite(D2, HIGH);   // turn the LED on (HIGH is the voltage level)
  delay(200);               // wait for a Millisecond
  digitalWrite(D2, LOW);    // turn the LED off by making the voltage LOW

  digitalWrite(D3, HIGH);   // turn the LED on (HIGH is the voltage level)
  delay(200);               // wait for a Millisecond
  digitalWrite(D3, LOW);    // turn the LED off by making the voltage LOW

  digitalWrite(D4, HIGH);   // turn the LED on (HIGH is the voltage level)
  delay(200);               // wait for a Millisecond
  digitalWrite(D4, LOW);    // turn the LED off by making the voltage LOW

  digitalWrite(D5, HIGH);   // turn the LED on (HIGH is the voltage level)
  delay(200);               // wait for a Millisecond
  digitalWrite(D5, LOW);    // turn the LED off by making the voltage LOW

  digitalWrite(D6, HIGH);   // turn the LED on (HIGH is the voltage level)
  delay(200);               // wait for a Millisecond
  digitalWrite(D6, LOW);    // turn the LED off by making the voltage LOW

  digitalWrite(D7, HIGH);   // turn the LED on (HIGH is the voltage level)
  delay(200);               // wait for a Millisecond
  digitalWrite(D7, LOW);    // turn the LED off by making the voltage LOW

  digitalWrite(D8, HIGH);   // turn the LED on (HIGH is the voltage level)
  delay(200);               // wait for a Millisecond
  digitalWrite(D8, LOW);    // turn the LED off by making the voltage LOW

}

//******************************************************//
