DM8BA10 10 Digit 16-seg Arduino Sample Drive UNO MEGA SPI LCD Display Digital Tube LED

DM8BA10 10 Digit 16-seg Arduino Sample Drive UNO MEGA SPI LCD Display Digital Tube LED

  • Model: DM8BB10
  • Availability: In stock
  • Weight: 0.025Kg
$9.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns

Product Name: for Arduino UNO MEGA 10bit 16-seg SPI LCD Display Board Digital Tube LED Module Board





Description:

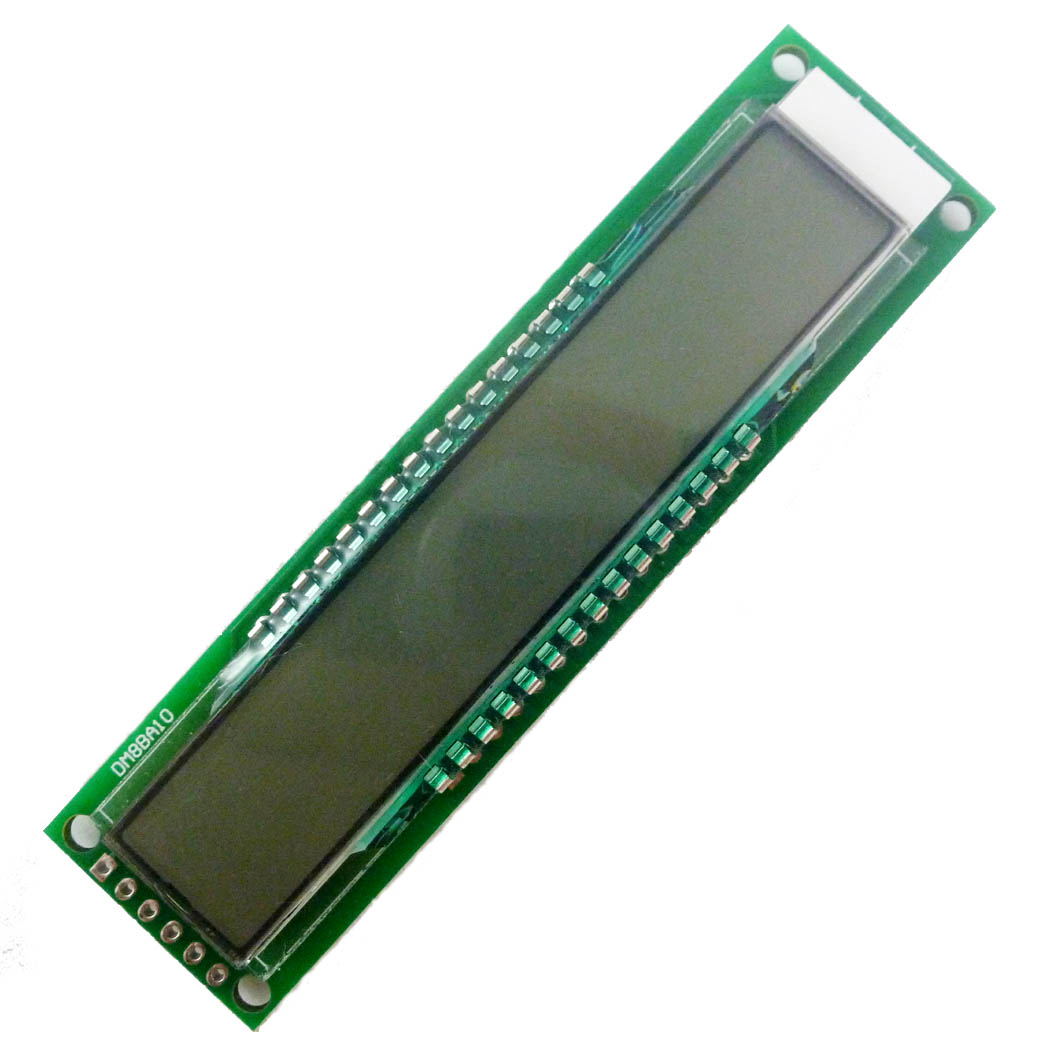

 10 Digit 16-Seg SPI TM1622 LCD Display Module(No Pin)



Backlight : Blue

Supply voltage : DC 5V

Driver IC : TM1622(compatible HT1622)

Interface : SPI(Only three control signal,CS WR DATA)

Support display characters : 0,1,2,3,4,5,6,7,8,9,A,b,C,c,d,E,e,F,f,g,H,h,I,i,J,k,L,M,m,N,n,O,o,P,q,R,S,T,t,U,u,V,W,w,X,Y,y,Z,-,*

Size : 92mm x 24mm x 9mm

Weight : 20g





Note 1: This is a version without a pin header. You need a version with a pin header. Please purchase it here :eBay item number:283572857977

Note 2: We only provide the ARDUINO code, please modify the ARDUINO code(C language) for other platforms.







Applications:



for Arduino UNO MEGA2560 LEONARDO MICRO NANO ADAPTER Pro Mini ZERO DUE

for raspberry pi 3 B+ 4

for MCU AVR PIC ARM

for FPGA/CPLD

for Toy car

for instrument meter

for Electronic hobby DIY











Connect with arduino-Compatible UNO( Does not include UNO)








arduino-compatible uno/mega2560 Code fragment:

After purchase, please contact me for complete code!



//*******************************************//

.......



void setup()

{

pinMode(CS, OUTPUT); //Pin 2

pinMode(WR, OUTPUT); //Pin 3

pinMode(DATA, OUTPUT); //Pin 4

}



void loop()

{

...



Init_1622() ;

...





while(1)

{

display_String(String_dat1);

delay(2000) ;

display_String(String_dat2);

delay(2000) ;

display_String(String_dat3);

delay(2000) ;

display_String(String_dat4);

delay(2000) ;

display_String(String_dat5);

delay(2000) ;

display_String(String_dat6);

delay(2000) ;

}



}



//*******************************************//
