Description:
25W Mini Size High-power DC-DC Boost Converter Module
Input DC 2.7-5.5V,Output 5V/8.4V/12V/12.6V/15V/16.8V/21V/24V
Maximum output power 25W(See the table for details)
Maximum input current: 8A(See the table for details)
Maximum output current: 5A(See the table for details)
Quiescent current: about 1MA
Efficiency : Up to 96%
Switching Frequency : 600KHz fixed
Overtemperature shutdown, input under-voltage protection and short circuit protection.
UVLO Low Threshold 2.6V,UVLO High Threshold 3.2V,suitable for 3.7V lithium battery power supply
Operating Ambient Temperature : -40 to 85 °C
Storage Temperature : -55 to 150°C
Size : 33*15*5mm
Weight : 4.5g
Attention :
This is a high-power boost module. Please pay attention to the following when using:
1 The power supply must be sufficient. If the module needs to output 25W power, the power supply must be greater than 35W.
2 The power and boost module leads must be thick enough (can pass 10A) and soldered well.
3 Use a multimeter to directly measure the ''IN+ IN-'' port to determine if the power is sufficient. If the voltage is lower than the power supply 1V, the power supply is insufficient or there is no good connection.
4 Input voltage can not be greater than the maximum input range
5 Output power can not be greater than the maximum load for a long time
6 Input power must be greater than the output power, because the power consumption of the module itself
Applications:
for QC2.0 3.0 charger
for 3.7V li-on Lipo Lithium Battery 18650
PTZ CCTV IP camera
Smart home / home automation
WIFI Router Switch Network equipment
LED Motor Driver
1 CELL Lithium Battery to 2-5 CELL Output

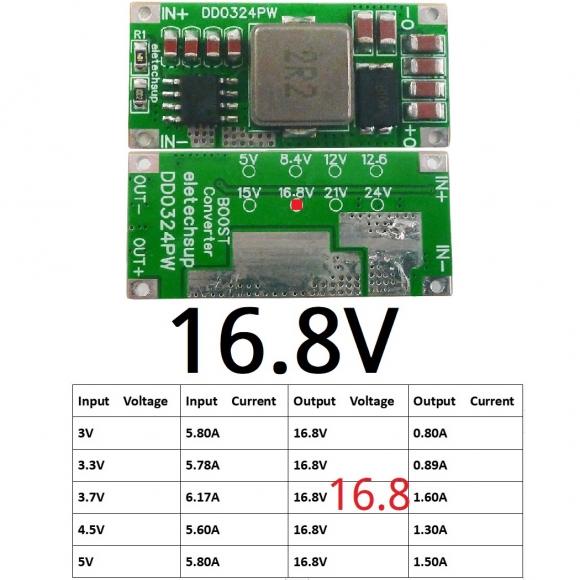

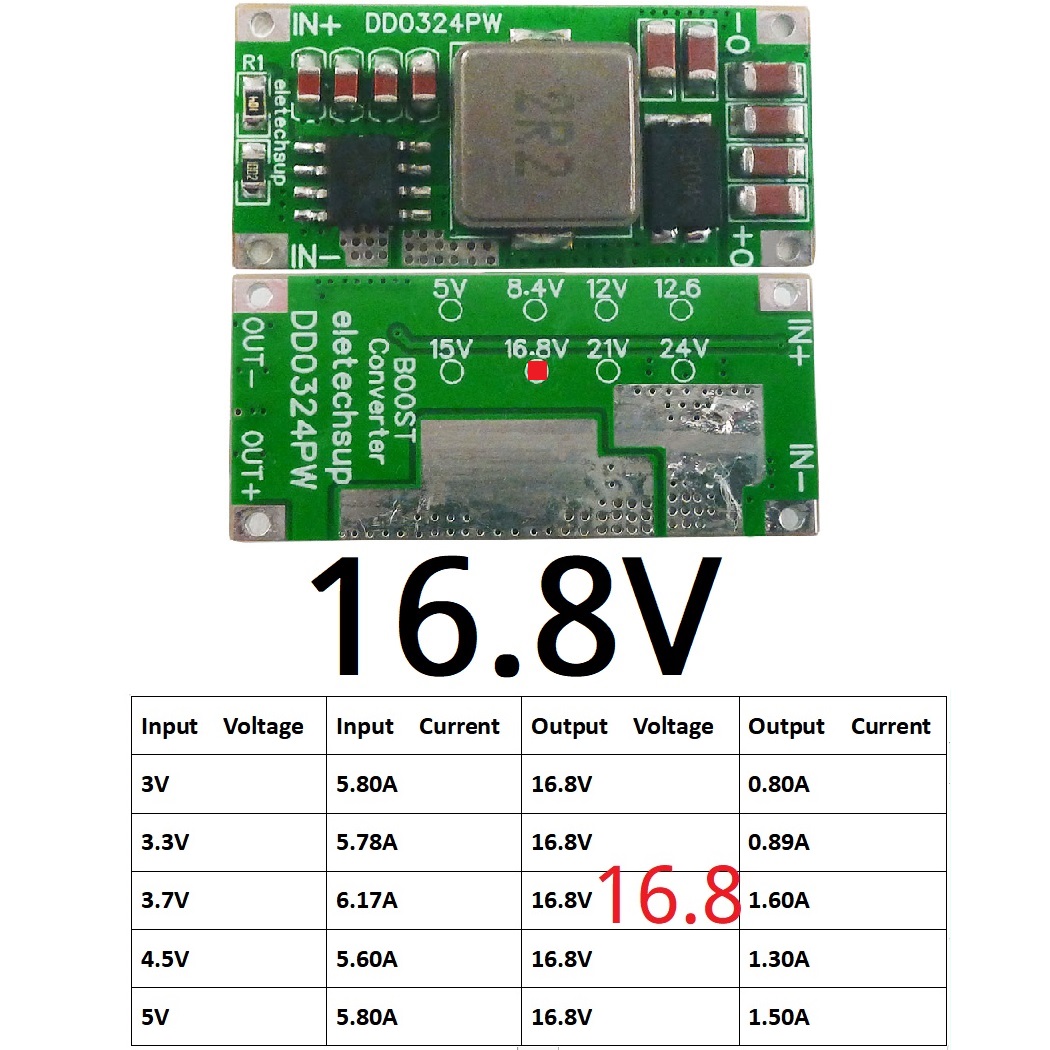

For short-term maximum input and output current, please refer to the table below. For long-term use, please add a heat sink or reduce the output current to 60%.
When used to drive inductive loads or motors, please pay attention to the following:
1 Please note that the starting current of the motor is greater than 3 times the rated current.
2 Please ensure that the power supply is sufficient.
3 Please connect a diode or drive circuit between the module and the motor.
It can be set to any voltage between 4.5-24V by changing the R1 resistor.
