RF22A04 CJ003 DC 12V RF Wireless Relay Controller Switch 433M Delay Timer & EV1527 remote

RF22A04 CJ003 DC 12V RF Wireless Relay Controller Switch 433M Delay Timer & EV1527 remote

  • Model: RF22A04+CJ003
  • Availability: In stock
  • Weight: 0.1Kg
$16.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns
Brand:Eletechsup

Product Name : DC 12V RF Wireless Relay Controller Switch 4CH 433M Delay Timer & EV1527 remote Control

Packing list:

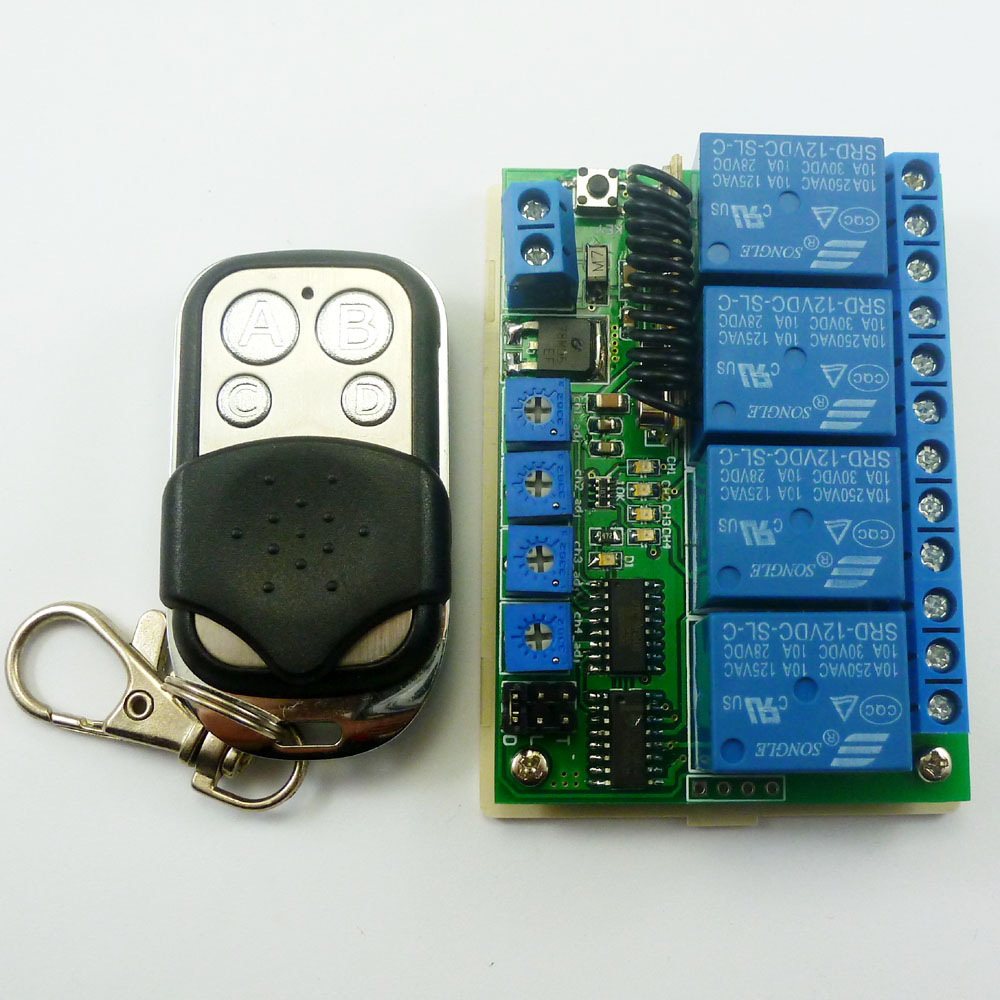

1 PCS 433M DC 12V 4 Channel Multifunction Wireless Controller
1 PCS 433M  4 Button EV1527 Remote Control(USE 12V 27A battery,Batteries not included)
Typical applications:

DC 12V Home lighting system
Garage Door
Elevators
Motor reversing control
Remote control switch
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC 12 DC Motor,RS360




Wiring Diagram 1:
DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 12V





Wiring Diagram 2:



DC 1-110V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED






Wiring Diagram 3:
All kinds of motor reversing control: DC 1-110V or AC 85-265V DC/AC Motor



Technical indicators:

1 Operating voltage : DC 12V

2 Operating Current: Standby current (all relays closed) 15MA, 1 relay open 42MA, 2 relays open 62MA, 3 relays open 94MA, 4 relays open 121MA

3 Operating frequency: 433.92M;


4 Receiver sensitivity : -108dBm




6 Work mode : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch), Delay; Delay adjustable from 0.1 to 100 seconds, 0.1 seconds Resolution.


7 Size(Including housing)75*54*28mm

8 Weight: 77g

9 Relay Maximum load(Recommended<5A):10A/250VAC,10A/125VAC,10A/30VDC, 10A/28VDC ,10A/12VDC




Normally, we would adapter remote control and receiver.

If the item you received has not been adapted Or you need to add accessories, Please follow the instructions below

Learning method and steps:

Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes





Clean code: press the button and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist)





Step 1 (into the learning mode): Press the button (about 1 second), LED off;



Step 2 (adapter channel 1): Then press the first button on the remote control, LED flashes four times off, then learning the first button value



Step 3 (Adaptation Channel 2): Then press the second button on the remote control, LED flashes four times brighter, then learned two key values



Step 4 (Adaptation Channel 3): Then press the third button on the remote control, LED flashes four times brighter, then learned two key values



Step 5 (Adaptation Channel 4): Then press the fourth button on the remote control, LED flashes four times brighter, then learned two key values



Use more details, please click here!










Work mode



Delay mode user guide :

1 In delay mode(Mode 3),with a suitable screwdriver and gently rotating adjustable resistance;Clockwise, increasing delay,Counter-clockwise, the delay is reduced

2 Delay adjustable from 0.1 to 100 seconds, 0.1 seconds Resolution.
Glossary:

NO : Relay normally open contact

COM : Relay common contact

NC : Relay normally closed contact

Open : NO connection COM, NC disconnect COM

Close : NO disconnect COM, NC connection COM

Momentary : Press the Transmitter button A, the receiver Channel 1 is Open, release button A; the receiver Channel 1 is Close, the same as B ,Every Channel is Independent ;

Toggle : Press transmitter button A for 1 time , the receiver Channel 1 is Open, press button A again, the receiver Channel 1 is Close, the same as B. Every Channel is Independent ;

Latched : Press transmitter button A, the receiver Channel 1 is Open, the Channel 2 is Close.

Press transmitter button B, the receiver Channel 2 is Open, the Channel 1 is Close.

Delay : Press the Transmitter button A, the receiver Channel 1 is Open,After a set time delay, the receiver Channel 1 is Close, the same as B ,Every Channel is Independent;

If during the delay, press the button of Transmitter, delay start again; if the delay period, press and hold the button of Transmitter 3-4 seconds, the receiver controller stops the delay, the relay Close



Adapter remote control (learning remote control):

Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes





Clean code: press the button and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist)





Step 1 (into the learning mode): Press the button (about 1 second), LED off;



Step 2 (adapter channel 1): Then press the first button on the remote control, LED flashes four times off, then learning the first button value



Step 3 (Adaptation Channel 2): Then press the second button on the remote control, LED flashes four times brighter, then learned two key values



Step 4 (Adaptation Channel 3): Then press the third button on the remote control, LED flashes four times brighter, then learned two key values



Step 5 (Adaptation Channel 4): Then press the fourth button on the remote control, LED flashes four times brighter, then learned two key values



Power supply : 12V 27A battery replacable .(This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 12mA ;
Oscillation mode: SAW resonator ;
Oscillation resistor : 330K
Modulation mode:ASK OOK ;
Operating frequency:433.92MHz ;
Frequency deviation:±0.2MHz;
Encoding format: Million Group Code ( EV1527 ) ;
Transmit power:10 mW.
Data Rate : 50~60KHZ;
