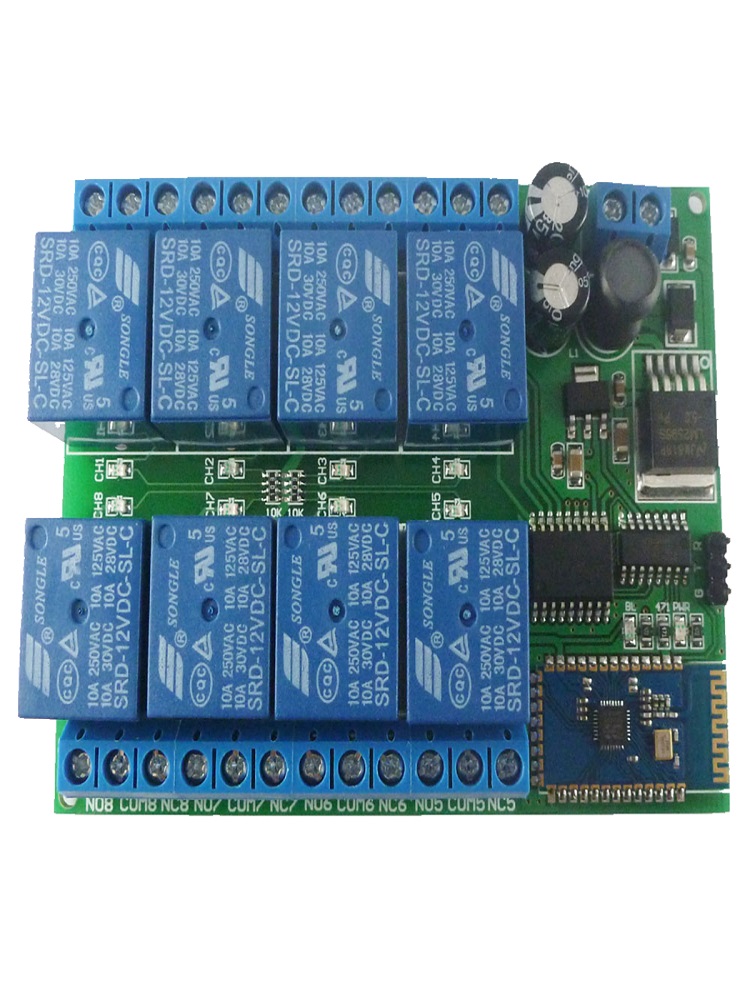

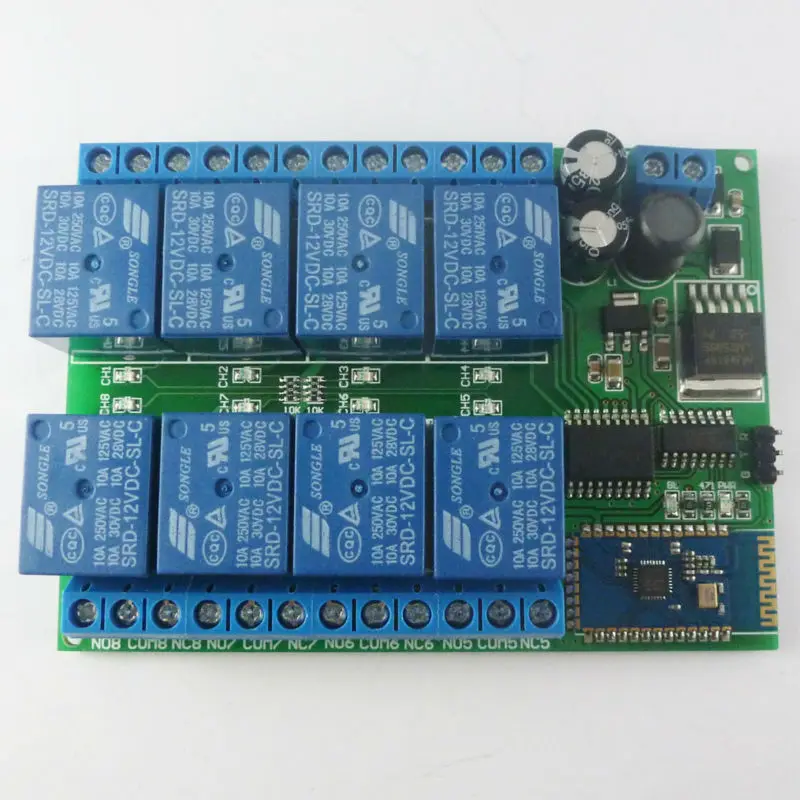

BT21A08 DC 12V 8 CH Android Phone Bluetooth-compatible Control Relay Module For Smart Home LED Lighting system

BT21A08 DC 12V 8 CH Android Phone Bluetooth-compatible Control Relay Module For Smart Home LED Lighting system

  • Model: BT21A08
  • Availability: In stock
  • Weight: 0.125Kg
$23.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name: DC 12V 8 CH Android Phone Bluetooth-compatible Control Relay Module For Smart Home LED Lighting system



Package inlcuded:

1 pcs DC 12V 8 Channel Android Bluetooth Relay Module

Description:

1 Operating voltage: DC 12V

2 Operating Current: Standby current (all relays closed) 15MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 96MA, 4 relays open 123MA,5 relays open 150MA,6 relays open 177MA,
7 relays open 203MA,8 relays open 229MA.

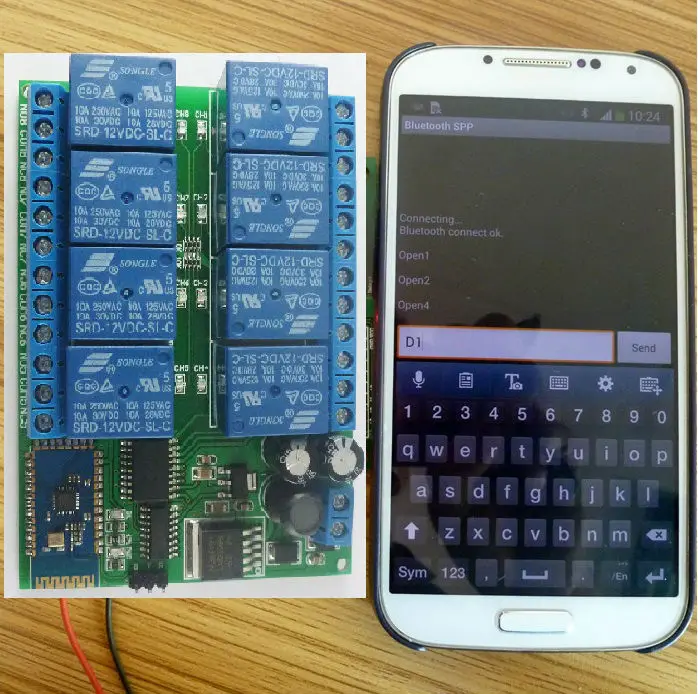

3: send commands via Android Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending commands to control)

4 ''Momentary'' ''Self-locking'' ''Interlock'' ''open'' ''close'' 5 Commands

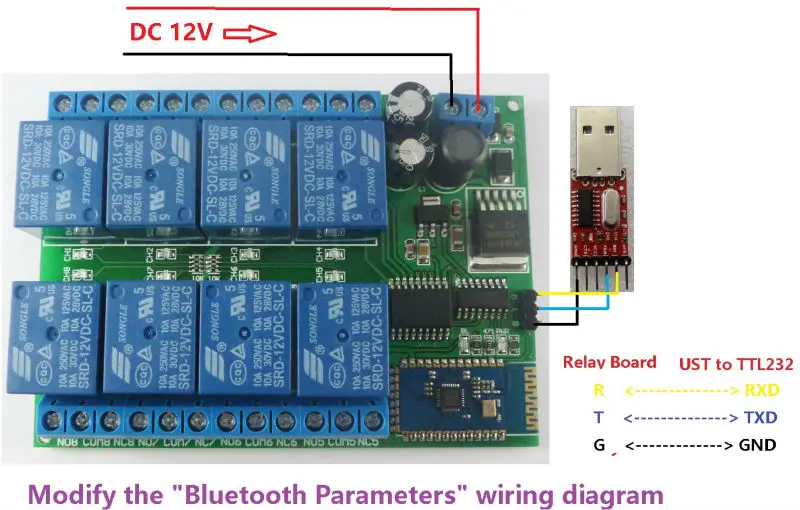

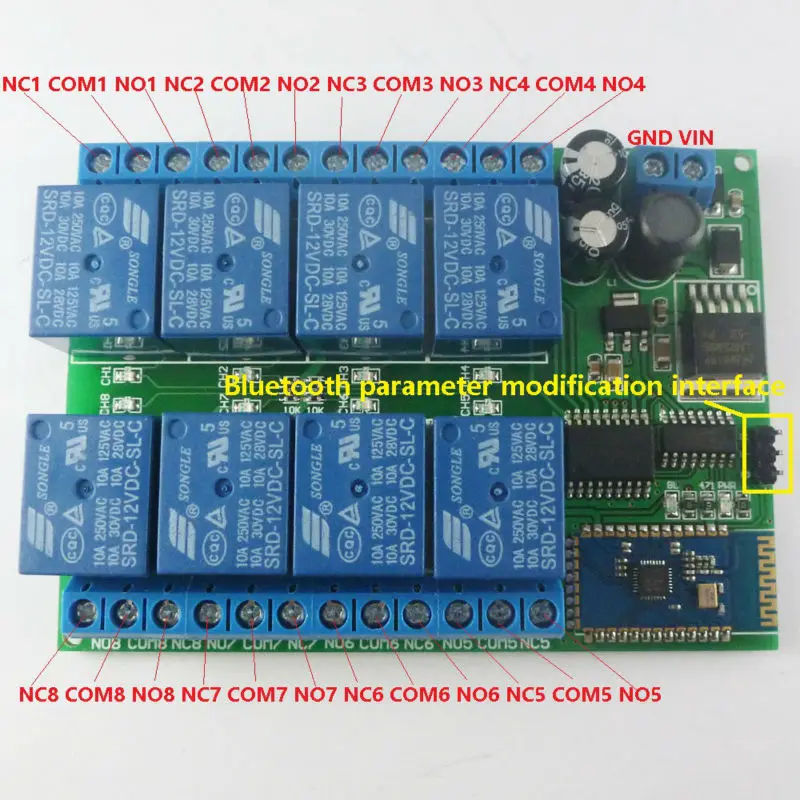

5 You can modify the Bluetooth name and PIN(Access Password) use '' UST to TTL232'',
For details, see file '' Bluetooth parameter modification''

6 size 96*68*19mm

7 Weight : 117g

NOTE:
Only for Android OS, does not support the Apple OS


For more information, please contact me
