Product Name: DC 5V 12V 24V 4CH Bluetooth-compatible Relay 2.4G RF Wireless Remote Control Switch for Apple IOS Android Mobile



Package inlcuded:
1 pcs DC 5-24V 4 Channel Bluetooth 4.0 Relay Module




Description:

1 Operating voltage: power supply 1,DC 6.5-25V; power supply 2,DC 5V

2 Operating Current: Standby current (all relays closed) 13MA, 1 relay open 44MA, 2 relays open 76MA, 3 relays open 107MA, 4 relays open 139MA

3 Bluetooth protocol: Bluetooth Specification V4.0 BLE

4 Based on TI CC2541 chipset, Support android 4.3 or above,phone 4s or above (IOS8 or above) mobile control

5 2.4GHz-2.48GHz unlicensed ISM band

6 send commands via Android/IOS Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending commands to control). It can also be triggered by an external pulse signal.

7 ''Momentary'' ''Self-locking'' ''Interlock'' ''open'' ''close'' 5 Commands

8 External trigger input, opto-isolated switch, low pulse inputs.

9 size (including housing) 115*90*40mm

10 Weight : 150g

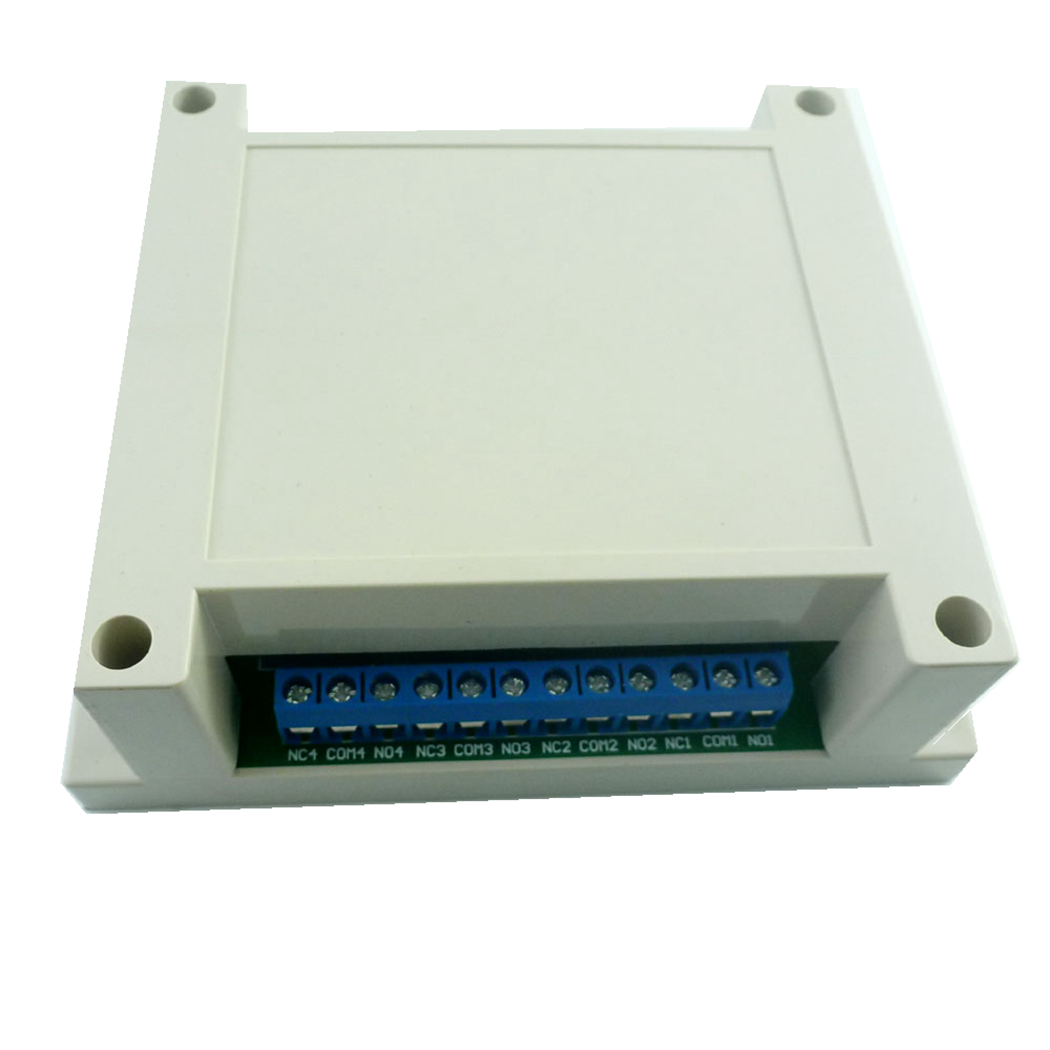

Printing of PCB board is wrong, the correct printing is:

NO4 COM4 NC4 NO3 COM3 NC3 NO2 COM2 NC2 NO1 COM1 NC1


NOTE:

1 phone must support bluetooth 4.0, such as galaxy S4 (android 4.3),phone 4s(IOS8)

2 Bluetooth 4.0 without matching, so when open bluetooth mobile phone cannot search equipment

3 Without password, open software direct connection

4 Baud rate is 9600BPS,can't change the parameters of bluetooth

APP:
Android : Installing ''BluetoothLeGatt'' APP
IOS : In AppStore download ''LightBlue'' software

For more information, please contact me
