CE034 DC 5V 6V 9V 12V 15V 24V Bluetooth-compatible Relay Module Android APP Mobile Phone Remote Control

CE034 DC 5V 6V 9V 12V 15V 24V Bluetooth-compatible Relay Module Android APP Mobile Phone Remote Control

  • Model: CE034
  • Availability: In stock
  • Weight: 0.075Kg
$13.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns
Typical applications:


Home lighting system

Remote control switch

Remote locking

Smart Home / Home Automation

DC 12V LED lighting

Fluorescent lamp

12V DC Motor

Fluorescent lamp

Automotive electronics

Industrial automation and control




1 Power supply is DC 6-25V, ''LOAD'' also DC 6-25V circuit, wiring diagram below.


''LOAD'' may be LED lights, fans, motors and other DC 6-25V equipment







2 Power supply is DC 6-25V, ''LOAD'' is DC 1-48V or AC 85-265V circuit, wiring diagram below.


''LOAD'' may be LED lights, fans, motors and other DC 1-48V or AC 85-265V equipment






3 Power supply is DC5V, ''LOAD'' is DC 1-48V or AC 85-265V circuit, wiring diagram Below.


''LOAD'' may be LED lights, fans, motors and other DC 1-48V or AC 85-265V equipment






4 Power supply is DC 5V, ''LOAD'' is DC 5V circuit, wiring diagram below.


''LOAD'' may be LED lights, fans, mcu Development Boards and other DC 5V equipment






Product Name:DC 5V 6V 9V 12V 15V 24V Bluetooth-compatible Relay Module Android APP Mobile Phone Remote Control




Package inlcuded:

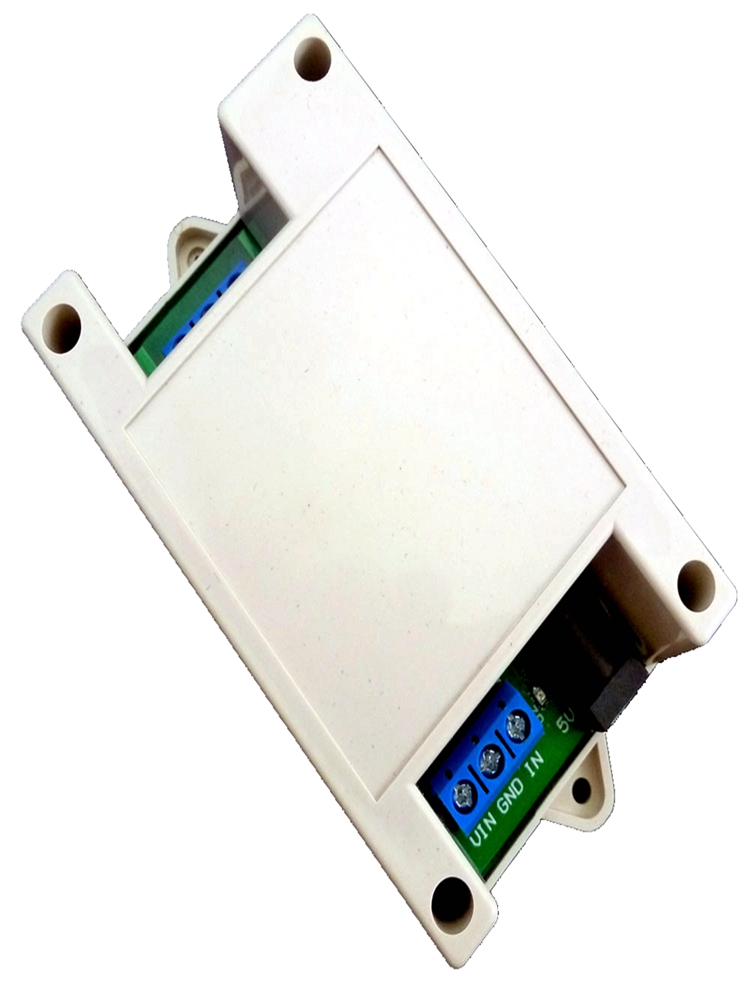

1 PCS DC 5V-25V 1 Ch AndroidBluetooth Relay Module




If you need housing, click here,White,Black.


Description:


1 Operating voltage: power supply 1, DC 6-25V; power supply 2,DC 5V


2 Operating Current: Standby 11MA, Relay Open 45MA (voltage DC 12V)


3 Bluetooth V2.1 + EDR, Class 2


4 2.4GHz-2.48GHz unlicensed ISM band


5 send commands via Android Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending commands to control),It can also be triggered by an external pulse signal.


6 ''Momentary'' ''Self-locking'' ''open'' ''close'' 4 Commands


7 External trigger input, opto-isolated switch, low pulse inputs.


8 size 79 * 47.5 * 20


9 Weight : 34g


10 Relay Maximum load:10A/250VAC ,10A/125VAC,10A /30VDC, 10A /28VDC ,10A /12VDC






Bluetooth relay manual:


NO : Relay normally open contact


COM : Relay common contact


NC : Relay normally closed contact


Momentary : Mobile terminal input ''A0'', the relay is ''open'',and after delay of 1 second the relay is ''Close''.


Self-locking : Mobile terminal input ''A1'', the relay is ''Open'', input ''A1'', the relay is ''Close'', and so on


Open : NO connection COM, NC disconnect COM


Close : NO disconnect COM, NC connection COM




External trigger input: low pulse triggering, pulse width greater than 200 milliseconds.


Two control methods, external trigger signal and Command Control,It can be composed of flexible and diverse control.




CommandS (Format: character, case-insensitive)




































CommandS


Features


Description


A0


''Momentary''


Mobile terminal input ''A0'', the relay is ''open'',and after delay of 1 second the relay is ''Close''.


A1


'' Self-locking ''


Mobile terminal input ''A1'', the relay is ''Open'', input ''A1'', the relay is ''Close'', and so on


A2


'' Open ''


NO connection COM, NC disconnect COM


A3


'' Close ''


NO disconnect COM, NC connection COM


A4


'' Open ''


NO connection COM, NC disconnect COM




Bluetooth APP operations:


Access Password : 1234


Bluetooth Baud rate: 9600BPS
