NDUB22TA 12V DC 3-23V to 12V High-Efficiency 3A Synchronous Buck-Boost Voltage Regulator for Solar Lead-acid Batteries

NDUB22TA 12V DC 3-23V to 12V High-Efficiency 3A Synchronous Buck-Boost Voltage Regulator for Solar Lead-acid Batteries

  • Model: NDUB22TA_12V
  • Availability: In stock
  • Weight: 0.008Kg
$5.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name:DC 3-23V to 3.3V 4.2V 5V 6V 10V 12V High-Efficiency 3A Synchronous Buck-Boost Voltage Regulator for Solar Lead-acid Batteries

Packing list:
1 PCS 2A DC 3V-23V to DC 3.3V 4.2V 5V 6V 10V 12V DC-DC 4-Switch Buck-Boost Converter module(Please select the version you need)




Description:


High Conversion Efficiency 3A 4-Switch Buck-Boost Converter:

Input voltage 3V~23V,output 3.3V/4.2V/5V/6V/10V/12V.

Max 3A Output Current or 4A Input Current.

(Not all input voltages can output maximum current,For details, refer to the table parameters at the bottom).

DC-DC 4-Switch Buck-Boost Converter module working frequency 500KHz.

High conversion efficiency: 88-93%(Ordinary buck-boost is only 50-70%).

Quiescent current: >1MA(Buck-boost quiescent current is relatively high)

Operating Temperature :–40°C to +105°C

Size : 25mm x 18mm x 6.5mm

Weight : about 3g

Full protection features include :
Under-voltage protection (UVP)
Internal Soft Start (SS)
Over-Current Protection (OCP)
Output Short-Circuit Protection (SCP)
Over-Temperature Warning and Shutdown



Attention :
This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself



Applications:

15V 12V 9V 6V 9V TO 3.7V/4,2V lithium battery-powered systems
WIFI Esp8266 ESP32 Module
CCTV PTZ Camera
Smart home / Home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators

Solar Cell Voltage Regulator

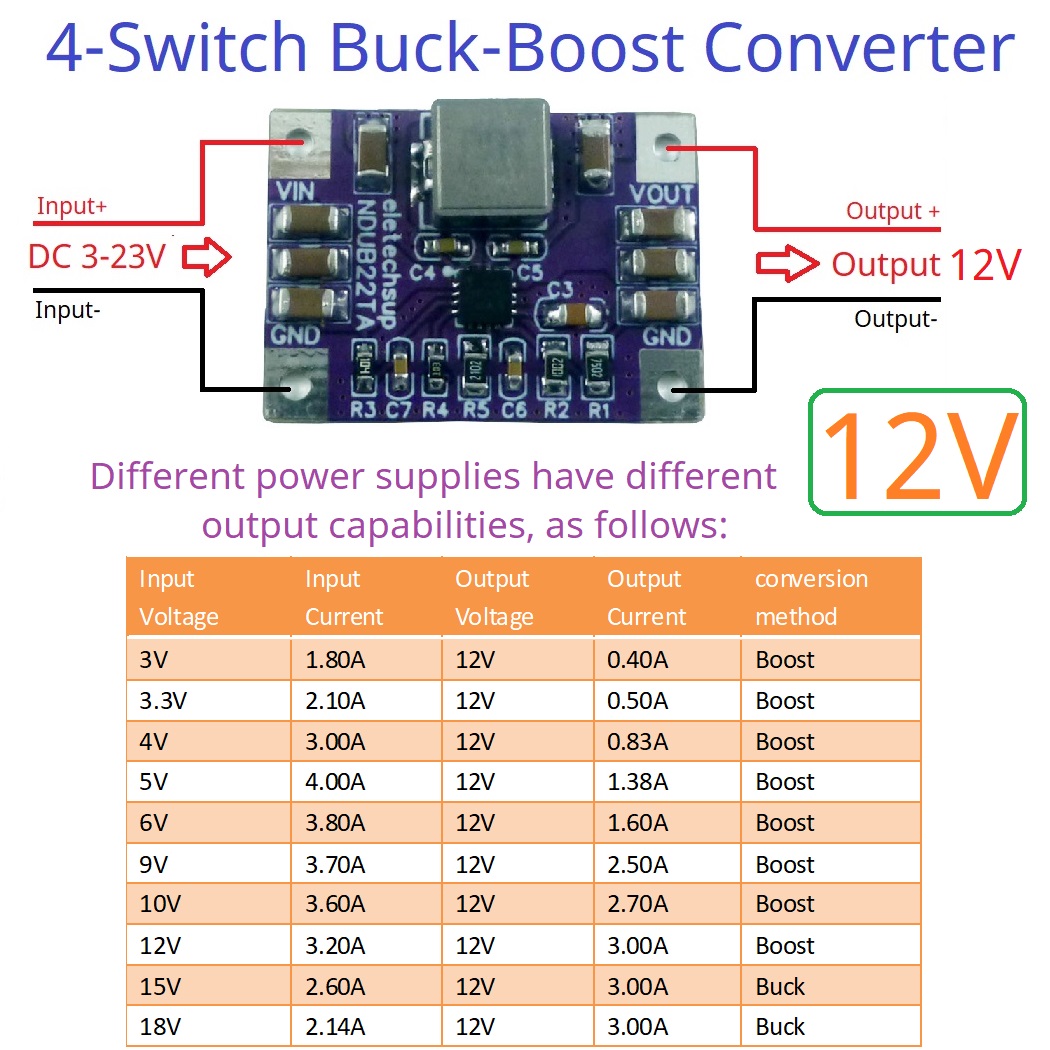

Note!!! Different input voltages correspond to different output currents. Please refer to the table parameters to purchase the version you need:
