1PCS RS485/TTL to CAN Bidirectional Transparent Transmission eletechsup CAN4A02 Module
Description:
Working voltage : DC 12V (DC 6.5-25V)
Working current : 16-17mA
Work Mode: RS485 to CAN bidirectional conversion,RS232(TTL) to CAN bidirectional conversion
Fully compatible with ''ISO 11898-2:2016'' Standard
All parameters are set through DIP switches without any software/command setting
RS485/RS232(TTL) Parameter : Baud Rate(1200 2400 4800 9600 19200 38400 57600 115200BPS),Parity(None Even Odd)
CAN Parameter : Transparent mode(ID/NO ID) ,CAN Baud Rate(100K/250K/500K/1M),CAN Frame Format(Standard/Extended)
Support for data transmission and support for CAN ID reception and transmission.
Size: 72 * 37 * 25mm(Only PCB Board);82 * 41*40mm(with Din Rail Box)
Weight: 18g(Only PCB Board);50g(with Din Rail Box)
For more information, please contact me
Application
CAN BUS to RS485 Bus TTL232
Support all RS485 devices of eletechsup, such as:
10IOA08/R4DCB08/R4D3B16/N4D3E16/N4AIA04
Smart Home,Home Automation ,Wiser Home;
Security Monitoring
Identification system;
PTZ IP Camera
CAR CNC machine tool
Automated Industry
LED Lamp Drivers
Automatic curtain control
DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 37 mm PCB boards
Net weight: 34g
Installation: DIN35 and C45 rail
Notice:
1 The CAN parameters of the two CAN devices must be the same to communicate

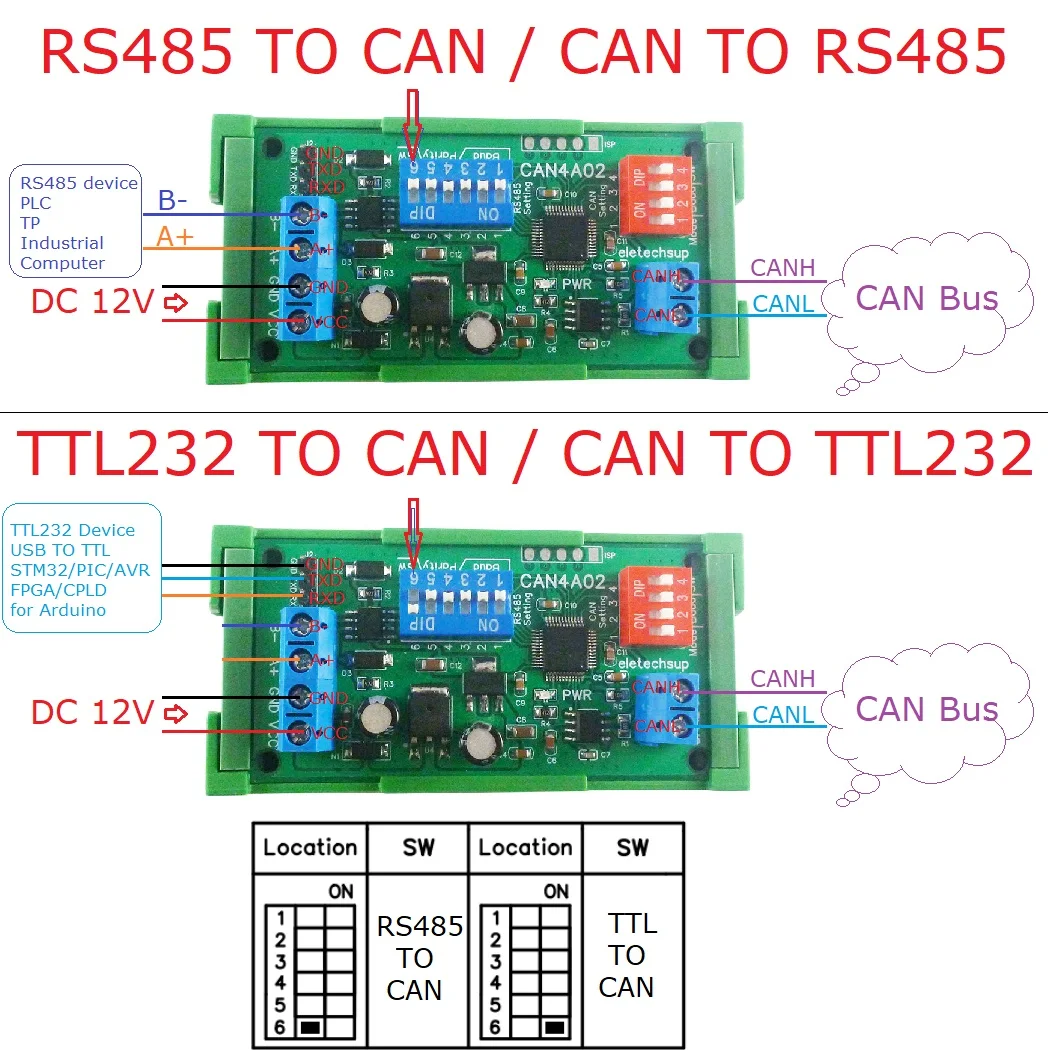

2 RS485/RS232(TTL) can only choose one of the interfaces (DIP switch setting)
CAN4A02 RS485 to CAN bus module is a kind of electronic control equipment which can realize the communication data forwarding among the electronic control devices of the vehicle, so that the vehicle can realize the regional network control system of the electronic control device. It CAN also be used in industry to control RS485 equipment or CAN equipment. The module adopts a 32-bit MCU integrated with CAN controller, which is more powerful and has better performance. It supports CAN2.0A and CAN2.0B protocols and CAN be applied to high-speed and low-speed CAN bus networks at the same time.

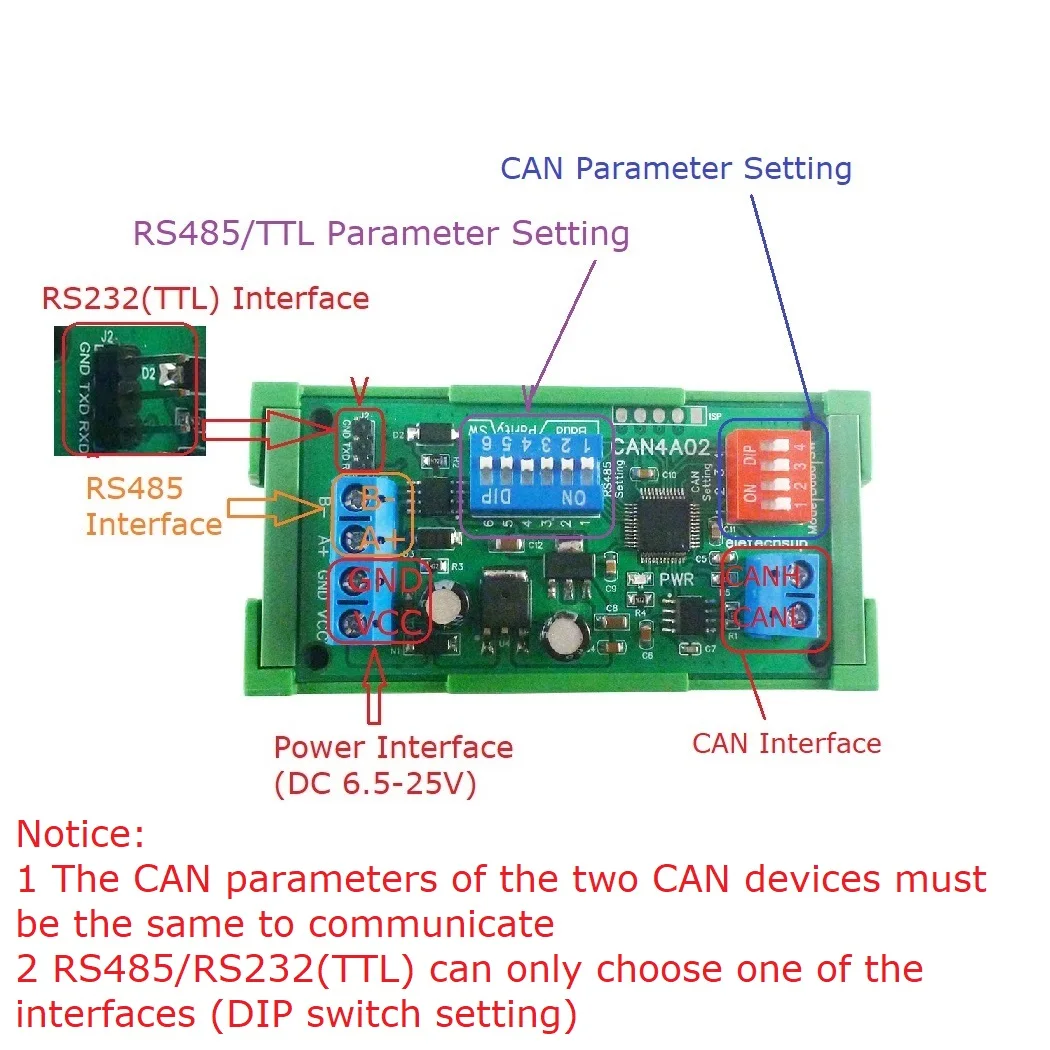

The CAN4A02 RS485 to CAN bus module allows you to set CAN parameters and RS485 (or TTL) parameters by using the DIP switch, simplifying the parameter setting process and facilitating user use. The parameters that CAN be set are the RS485/TTL switch, RS485/TTL check bit, RS485/TTL baud rate, CAN frame format, CAN baud rate, and CAN data transfer mode. For details about how to set the DIP switch, see the following table.
