N4VIA02 1A Multifunctional RS485 Ammeter & Voltmeter 0-30V Voltage & 0-5A Current Measurement Module Modbus RTU

N4VIA02 1A Multifunctional RS485 Ammeter & Voltmeter 0-30V Voltage & 0-5A Current Measurement Module Modbus RTU

  • Model: N4VIA02_1A
  • Availability: In stock
  • Weight: 0.028Kg
$6.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name: Multifunctional RS485 Ammeter & Voltmeter 0-30V Voltage & 0-5A Current Measurement Module Modbus RTU

Package inlcuded:

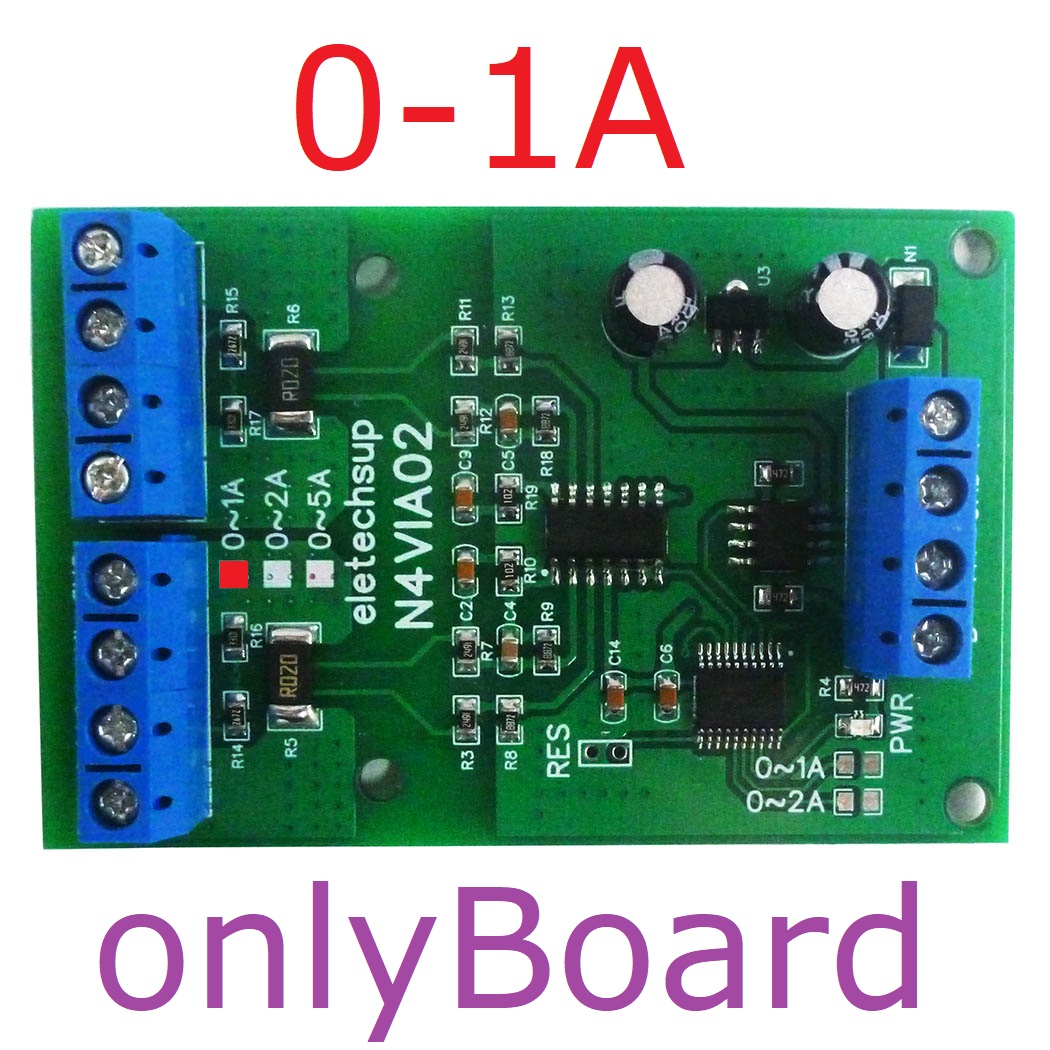

1PCS RS485 0-1A/2A/5A Current and 0-30V voltage collector


Description:
Power supply voltage: DC 8-25V(12V recommended);

Operating current: 8-13MA;

MODBUS RTU protocol: 03 read command, 06/16 write command.

Serial port Baud rate: 1200 2400 9600(default) 19200 38400 57600 115200 ,N/E/O,8,1;

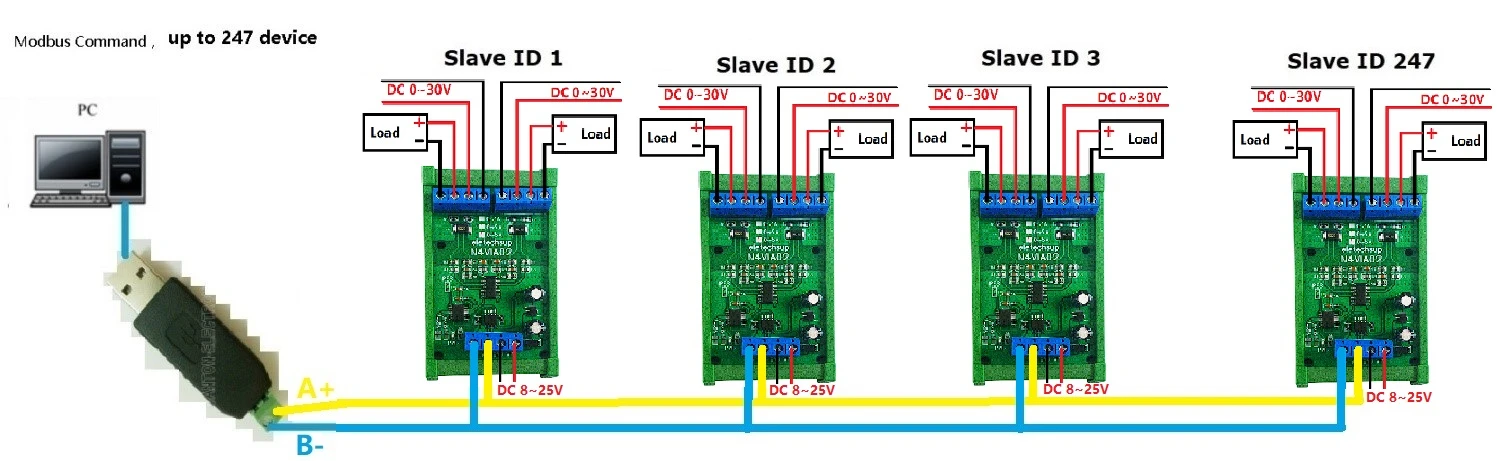

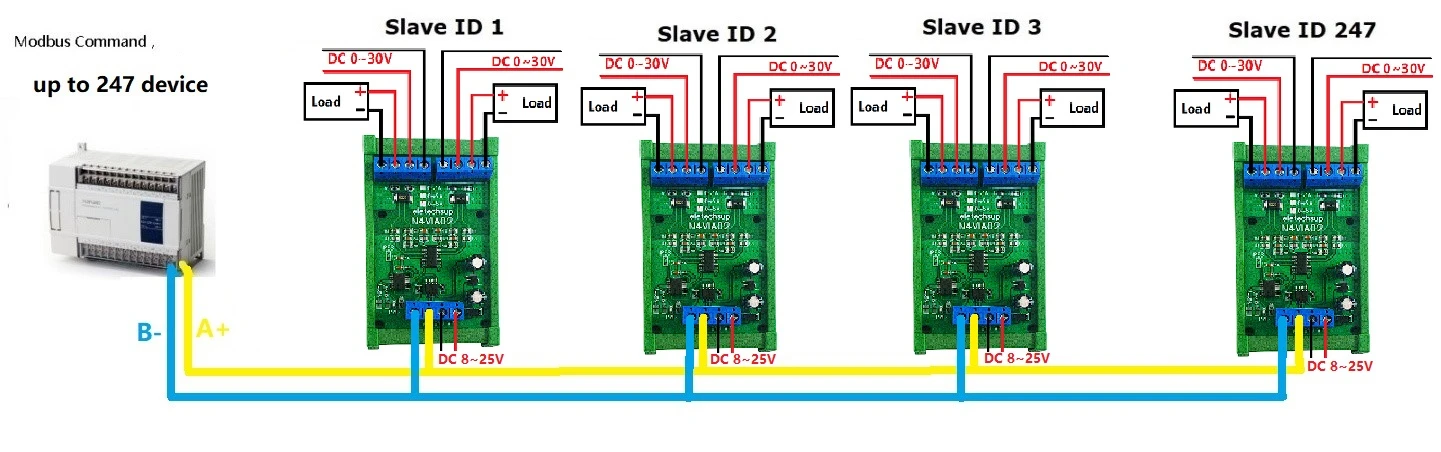

By modifying the RS485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater);

Voltage and current values can be read;

Current measurement range: 0~1A, 0~2A, and 0~5A. It is recommended to select a version with a smaller range within the range that meets the measurement;

Voltage measurement range: 0~30V;

Measurement accuracy: 1%. If the read value is too different from the actual value, recalibrate

Size: 72X 47 X 12MM(only board),87X 50X 37MM(with case)

Weight: 23g(board only),68g(with case)

Note:
This product is used to collect small current signals from time to time. If you need a 4-20MA signal collector, please choose the following products: N4AIA04 N46IB02 N43IC04

Note: The module will restore factory settings and restart automatically after 5 seconds of shorting the RES port.

MODBUS RTU protocol please refer to : '' N4VIA02 Modbus RTU''

For more information, please contact me

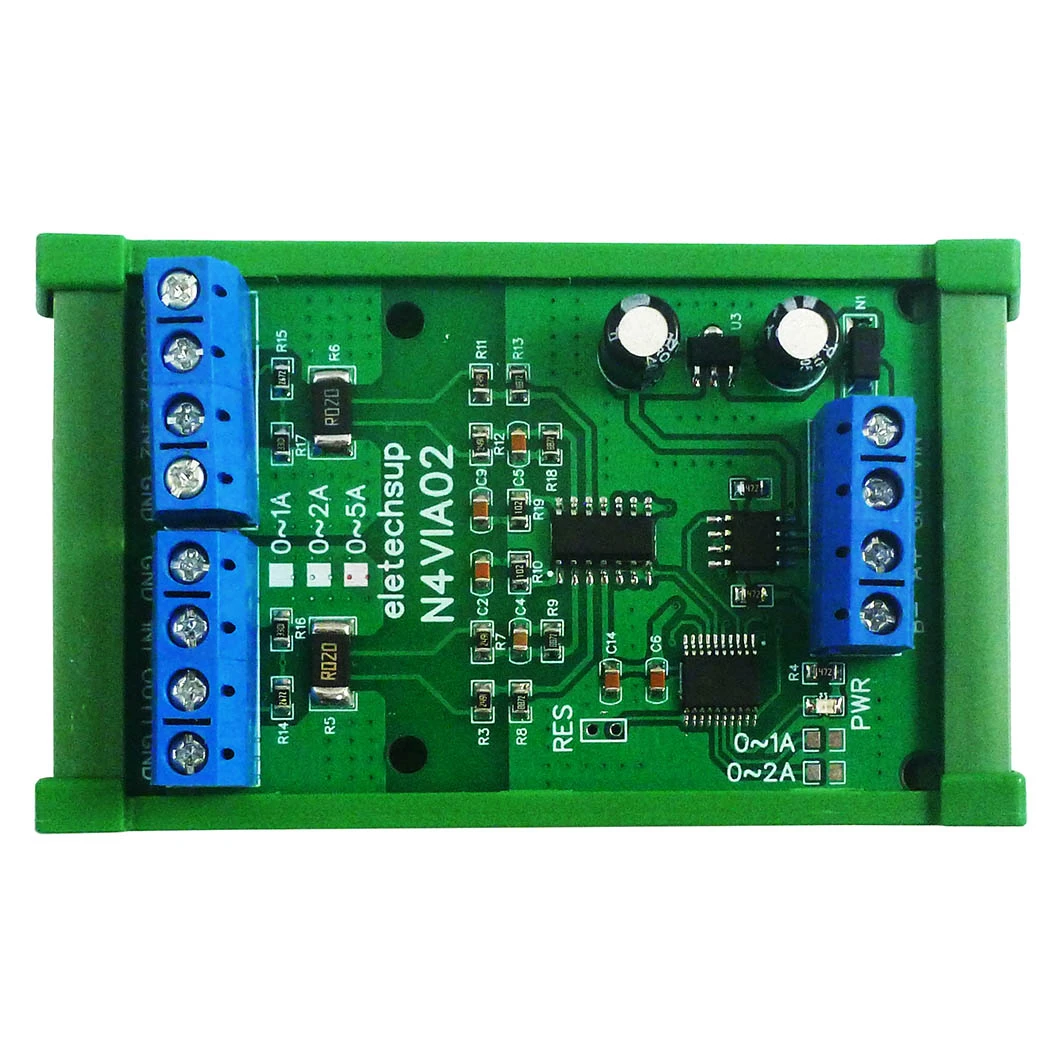

DIN rail Box parameters:

Product model: UM72
Color:
Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 47 mm PCB boards
Net weight: 45g
Installation: DIN35 and C45 rail

Application

PLC IO expansion board

Smart Home,Home Automation ,Wiser Home;

Current and voltage monitoring of industrial control equipment

Security Monitoring

Identification system;

Current and voltage meters

LED Lamp Drivers

Automatic curtain control

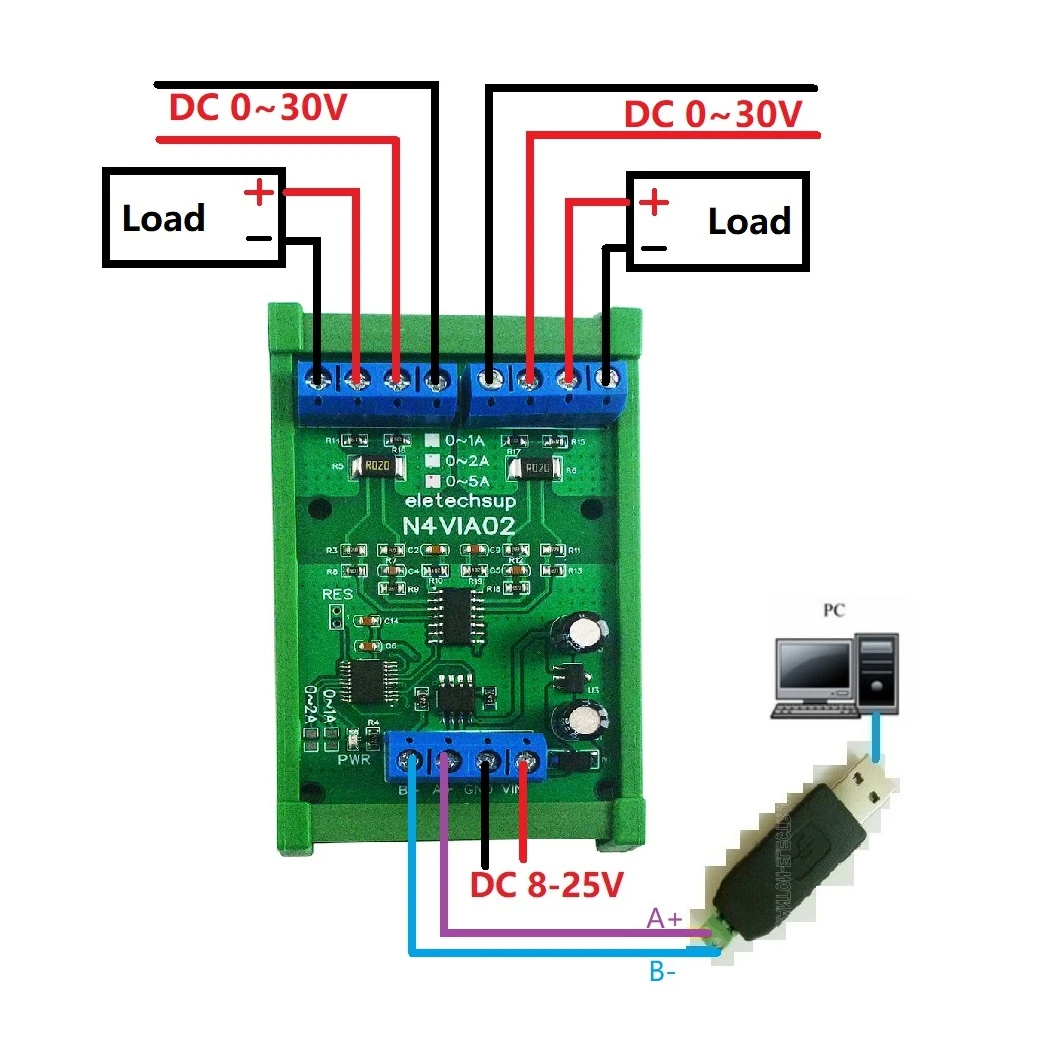

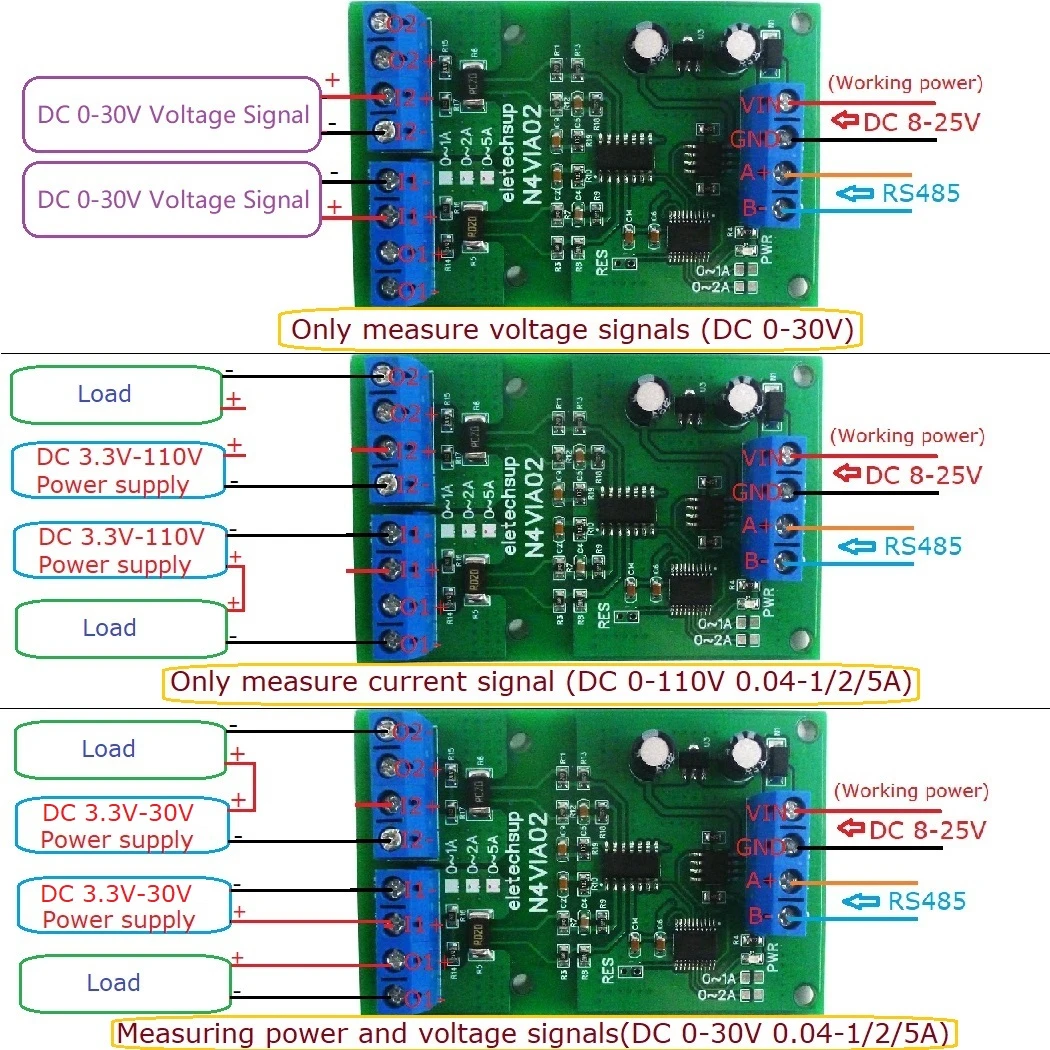

Wiring Diagram:

1 Only measure 0-30V voltage signal

2 Only measure 0.04-1/2/5A current signal (the voltage of current signal can be DC 0-110V)

3 Measure voltage and current signal
