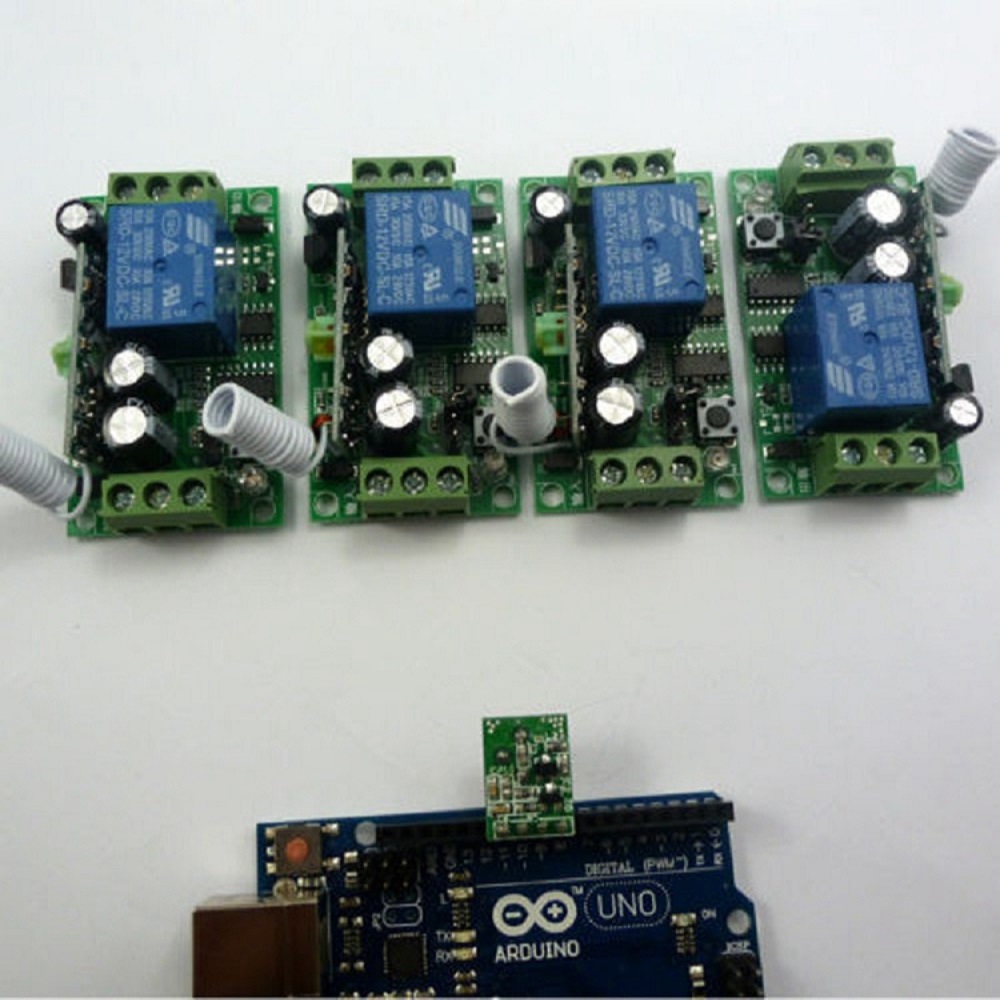

Product Name:4 PCS 1 Channel UART PC USB Wireless Relay Controller Arduino Simulation PT2262,Arduino Kit



Qty:

1 PCS 433M Wireless transmitter module(Without coding);
4 PCS 433M 1 channels relay switch;



Wireless transmitter module connected with Arduino uno(replace PT2262 Remote Keyfob

USE:



Software control:
How to use:send "a" trigger A channel relay,send "b" trigger A channel relay,Etc.


arduino core fragment(complete code through ebay message Request):

//Author: cantone-electonics
//Arduino 1.0
//Arduino uno R3
//Making a wireless remote control with arduino

...

//send:8 Address Bits, 4 Data Bits, Sync bit
void send_data()

void setup() {
// initialize the LED pin as an output:
pinMode(ledPin, OUTPUT);
// initialize the encoder DOUT pin as an output
pinMode(data_out, OUTPUT);

Serial.begin(9600);
}
void loop()
{
...

while(1)
{
//get key from pc serial port
while (Serial.available() > 0)
{
keydata = Serial.read();
receive_flag = 1;
delay(2);
}

if(receive_flag == 1)//if get key,send key
{

receive_flag = 0;

if((keydata == 'a') || (keydata == 'A'))//trigger A channel relay.
{
Temporary[2] = 0xC0;// 0xC0 is A button key
digitalWrite(ledPin, HIGH);//Turn on led
send_data();//send code word
Serial.println(".....trigger A channel relay.....");
}
else if((keydata == 'b') || (keydata == 'B'))//trigger B channel relay.
{
Temporary[2] = 0x30;// 0x30 is B button key
digitalWrite(ledPin, HIGH);//Turn on led
send_data();//send code word
Serial.println(".....trigger B channel relay.....");
}
else if((keydata == 'c') || (keydata == 'C'))//trigger C channel relay.
{
Temporary[2] = 0x0C;// 0x0C is C button key
digitalWrite(ledPin, HIGH);//Turn on led
send_data();//send code word
Serial.println(".....trigger C channel relay.....");

}
else if((keydata == 'd') || (keydata == 'D'))//trigger D channel relay.
{
Temporary[2] = 0x03;// 0x03 is D button key
digitalWrite(ledPin, HIGH);//Turn on led
send_data();//send code word
Serial.println(".....trigger D channel relay.....");
}

...

}
}

Output:





A.singnal Inter-locking (Latch)----connect 2  and 3 ;

B.singnal Self-locking (Toggle) ---- connect 1 and 2 ;

C.singnal Non-locking (Momentary ) ---- All disconnect  ;

·         Toggle : Press->On; Press again->Off ;

·         Latched : Press->On; Press other button->Off ;

·         Momentary : Press and hold->On; Release->Off ;



Wiring Diagram 1:
DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 12V






Wiring Diagram 2:

DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment
