This remote switch allows you to remotely control any 12 Volt DC device. Perfect for controlling any 12V devices such as Lights, Fans, Landscaping Lighting and more. This easy-to-wire kit is perfect for anybody with a basic knowledge of electrical wiring, and can easily be wired to many 12V applications. For PC Modders, the end of result of the Remote Control 12VDC kit is truly impressive and is sure to impress the crowds. For DIYers, the kit will give some magical effect to your projects.

Encoding and Decoding

The popular link is like this: MCU -> Encoder -> Transmitter ------ Receiver -> Decoder -> MCU,
PT2262(Encoder) are optional, their existence is to 1)avoid confusing when multiple RF links in range 2) isolate disturbance.
You can integrate the encoding and decoding work to the MCUs on both side. Whenever there is no 433.92MHz devices around, you may use it as direct cable connection.
Extra transmitter : https://www.ebay.com/itm/SC2262-PT2262-PT2264-433MHZ-ASK-OOK-Encoders-RF-Wireless-Transmitter-Modules/281040355304?rt=nc&_soffid=200&_soffType=SaleAndClearence&_trksid=p5731.m3795

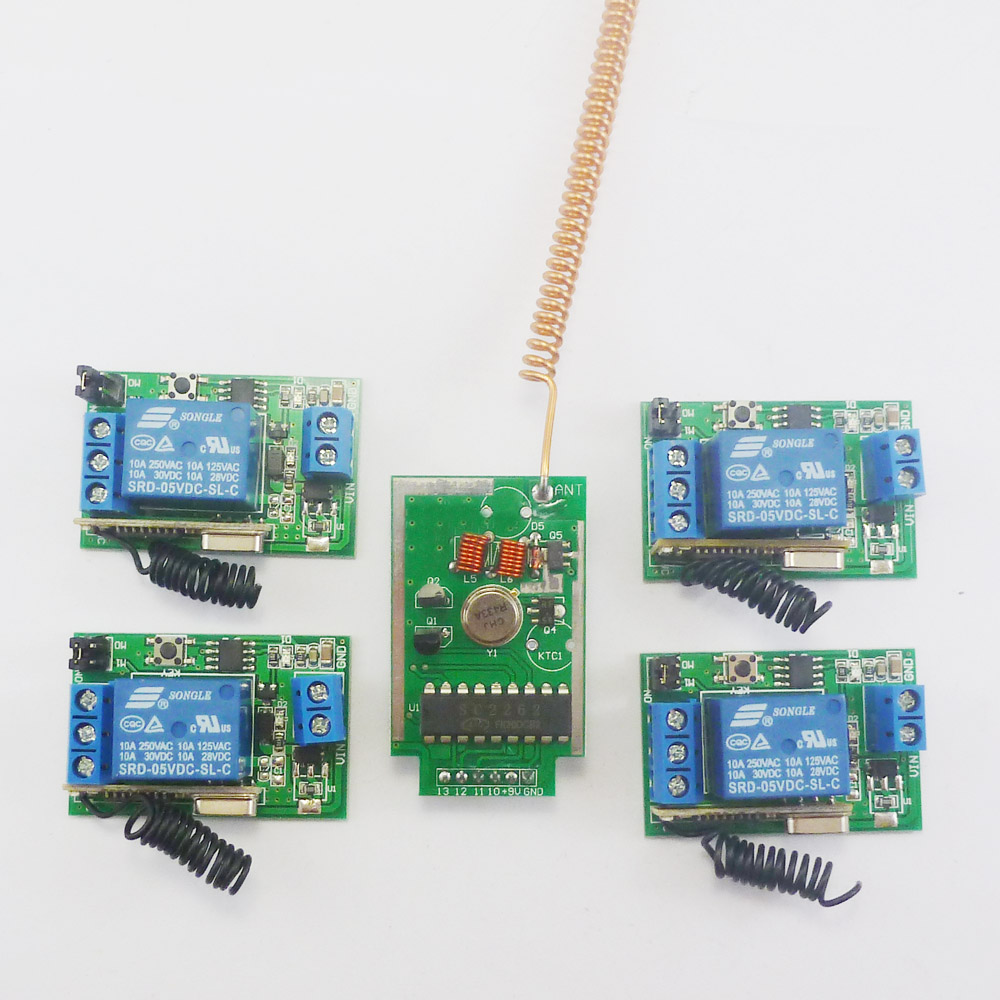

Qty : 1 pcs PT2262 transmitter module and 4 pcs 1 channels relay switch ;



Transmitter :



Model No. TB416 Encoder Transmitter
Function discription Encoder Transmitter modules
Operating voltage
9V DC
Work current
>100mA
Operating frequency 433MHz
modulation Mode ASK/OOK
SAW Frequency stability ±150kHz(max)
Transmitter power >55mW
Data rate ≤10Kbps
Antenns length 24 cm (315 MHz), 18 cm (433.92 MHz)
Dimension 49*31*8mm
Encodeing format SC2262 fixing code (same as PT2264 PT2262 ) ,Work with PT2272 decoder IC
Transmitter distance 1000Meter (open area)




Relay receiver :

Typical applications:

DC 5V Home lighting system
Remote control switch
Smart Home / Home Automation
Garage Door
Fluorescent lamp Illumination
Motorcycle Electromobile
Remote controlled gates
Security Monitoring
LED lighting
Fluorescent lamp
DC 12 DC Motor,RS360







Typical applications:
DC 5V Home lighting system
Remote control switch
Smart Home / Home Automation
Garage Door
Fluorescent lamp Illumination
Motorcycle Electromobile
Remote controlled gates
Security Monitoring
LED lighting
Fluorescent lamp
DC 5 DC Motor,RS360


Wiring Diagram 1:
DC 5V control circuit,Wiring diagram below. "LOAD" may be LED lamp, fans, motors and other DC 5V Electrical equipment





Wiring Diagram 2:

DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 5V load, need another DC 5V power supply). "LOAD" may be LED lamp, fans, motors and other DC AC equipment

Product Name : 5V Delay remote control relay Smart Home Kit 433M Multifunction ON/OFF Switch with Timing Non-locking Self-locking Inter-locking

Packing list:

1 PCS 433M DC 5V one Channel Delay Switch




receiver Features:

1 Operating voltage: DC 5V;

2 Operating Current: relays close, about 11MA; relay open,about 80MA;

3 Operating frequency: 433.92M;

4 Receiver sensitivity : -108dBm

5 Decode : learning code, can be adapted EV1527 / PT2262 and compatible remote control, you can store up to 32 remote control

6 Work mode : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch),Delay; 1-5000 seconds adjustable delay time, minimum step 0.1 seconds

7 Size(Including housing)50*35*22mm

8 Weight(including housing) 30g

9 Relay Maximum load(Recommended<5A):10A/250VAC,10A/125VAC,10A/30VDC, 10A/28VDC,10A/12VDC





Work mode

NO : Relay normally open contact
COM : Relay common contact
NC : Relay normally closed contact
Open : NO connection COM, NC disconnect COM
Close : NO disconnect COM, NC connection COM
Momentary : Press the Transmitter button , the receiver relay is Open, release button;the relay is Close;
Toggle : Press transmitter button for 1 time , the receiver relay is Open, press button again, the relay is Close;
Latched : Press transmitter button A, the receiver relay is Open Press transmitter button B, the receiver relay is Close.
Delay : Press the Transmitter button, the receiver relay Open,After a set time delay, the receiver relay is Close;

If during the delay, press the button of Transmitter, delay start again; if the delay period, press and hold the button of Transmitter 3-4 seconds, the receiver controller stops the delay, the relay Close

Adapter remote control (learning remote control):
Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes

Clean code: press the key and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist)

Step 1 (into the learning mode): Press the key (about 1 second), LED off;
Step 2 (adapter button): Then press the utton on the remote control, LED flashes four times on, then learning the button value

Note:
Only the Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch) mode to a "clear code" and " learning " action
In the "delay" mode can only set the delay time


Delay setting:
Step 1, the mode is set to "delay" mode (jumper cap on the M1 into two rows of pins)
Step 2, press the key until the LED is off
Step 3. Click the key again, LED flashes
Step 4. Click the key again after a period of time, LED light
LED blinking time is the delay time.
