Product Name:DC 9V 12V 24V 16DI-16DO RS485 Modbus RTU Remote IO Board N4D3E16 Switch Input Output Module for Touch Panel PLC Relay LED


Package inlcuded:

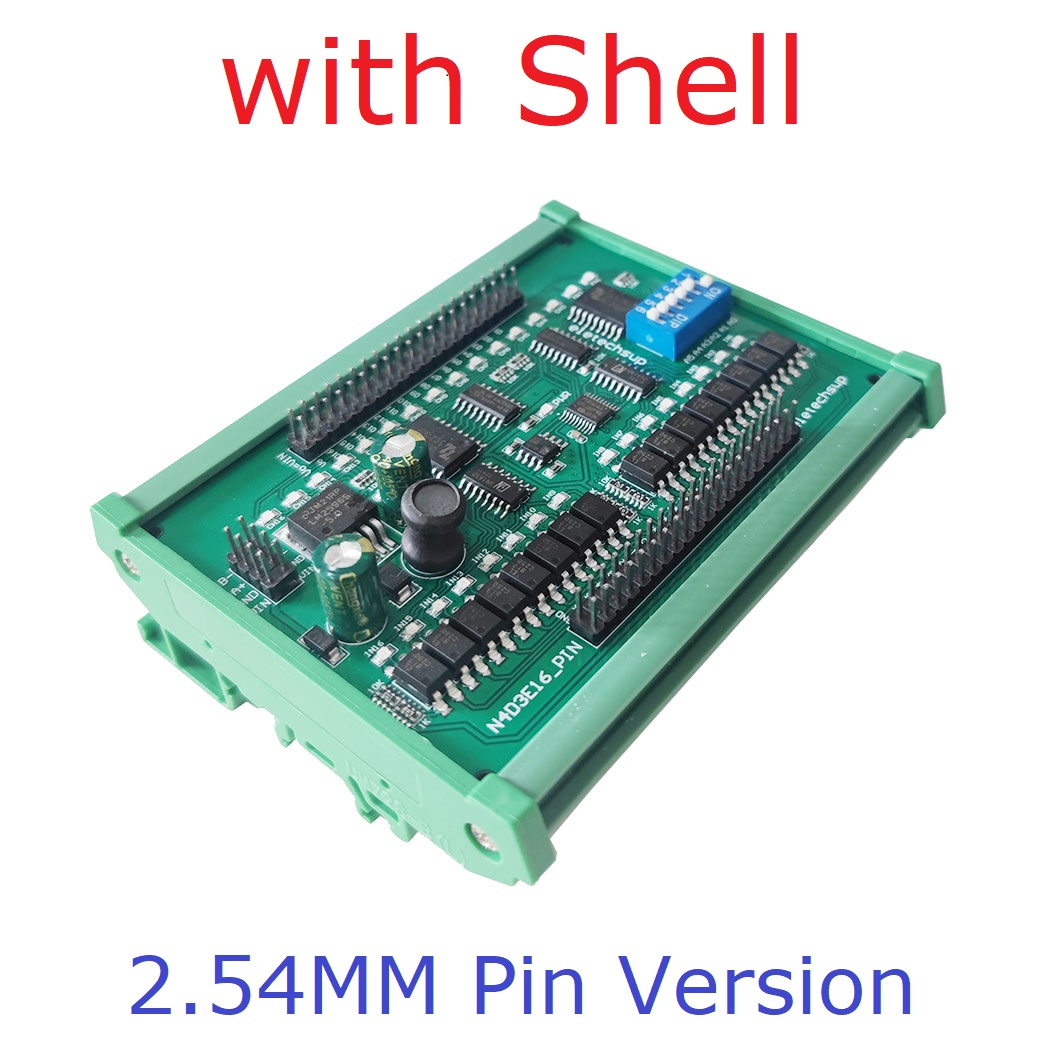

1PCS DC 12V 24V 16DI-16DO RS485 IO Board
(Please select the version you need)


Description:


1: Working voltage: DC 8-30V (9V 12V 24V)

2: Working current: 9-50MA

3: 16 channels photoelectric isolation Input ports (NPN low level active )

4: 16 channels 300MA Darlington output (ULN2803 NPN output)

5: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands


6: 16 inputs can remotely control 16 outputs of another board via RS485 bus (relevant registers must be set)

7: MODBUS RTU command, Support 03 06 function code(Some registers support 16 function codes)

8: Under the ''Delay'' command ,the maximum delay is 255 seconds;

9 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;

10 Under the MODBUS command mode, it can support up to 64 devices in parallel

11 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS

12 Size: 100 * 72 * 20mm(Only PCB Board);120 * 88* 42mm(with Din Rail Box)

13 Weight: 60g(Only PCB Board);140g(with Din Rail Box)

14 Maximum load: the maximum load current of each channel is 300MA


For more information, please contact me


DIN rail Box parameters:

Product model: UM72
Color: green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 100 mm PCB boards
Net weight: 72g
Installation: DIN35 and C45 rail












Application


PLC IO expansion board
Smart Home,Home Automation ,Wiser Home;
PTZ Camera
Security Monitoring
Identification system;
IP Camera
LED Lamp Drivers
Automatic curtain control
Switch value remote transmission


Application 1: Control 16-channel switch output through RS485 bus






Application 2: Read 16-channel switch input via RS485 bus






Application 3: 16-channel input remote control 16-channel output
