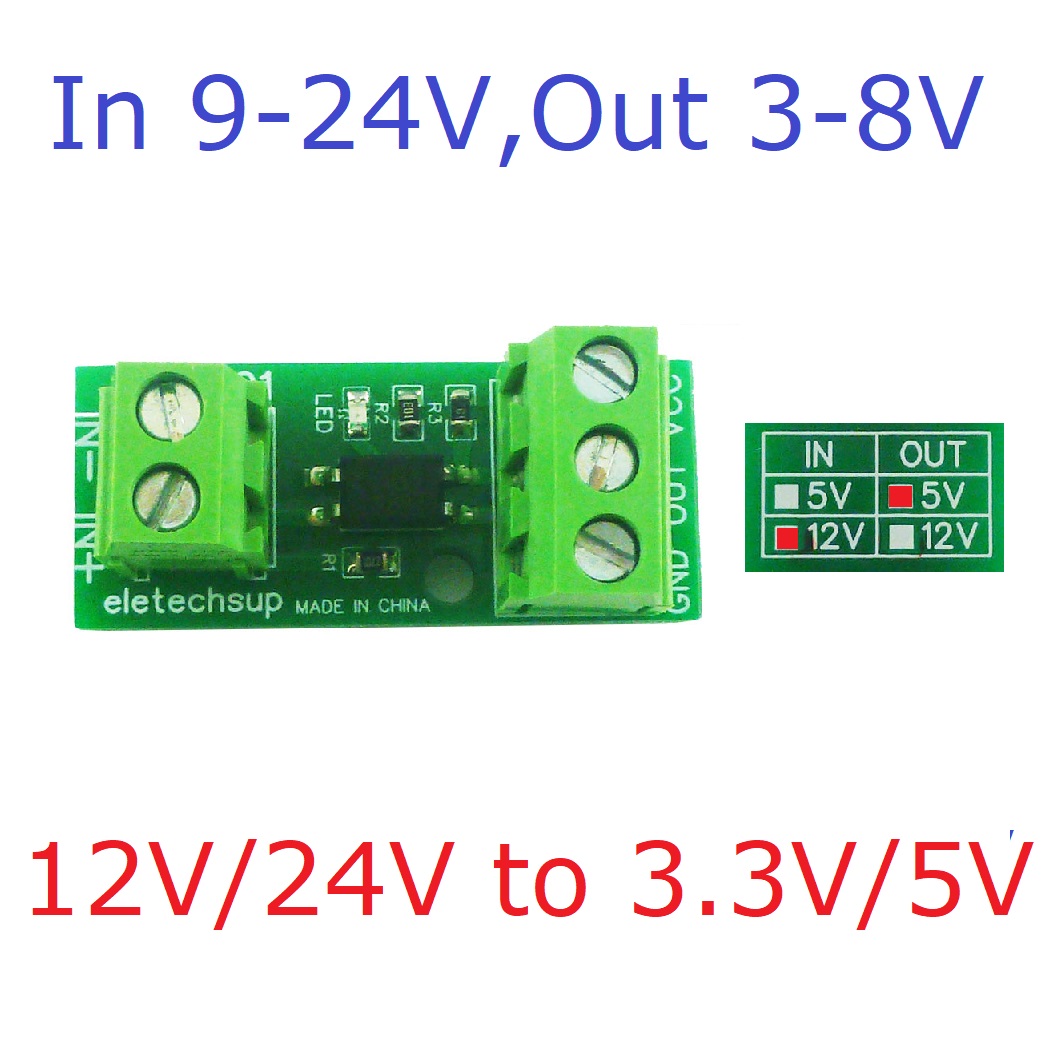

OP11A01 In 9-24V Out 3-8V 3-24V NPN PNP Signal Mutual Converter Logic Level Isolator for PLC RS485 Digital IO Module

OP11A01 In 9-24V Out 3-8V 3-24V NPN PNP Signal Mutual Converter Logic Level Isolator for PLC RS485 Digital IO Module

  • Model: OP11A01_12V_5V
  • Availability: In stock
  • Weight: 0.01Kg
$1.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns
Packing list:

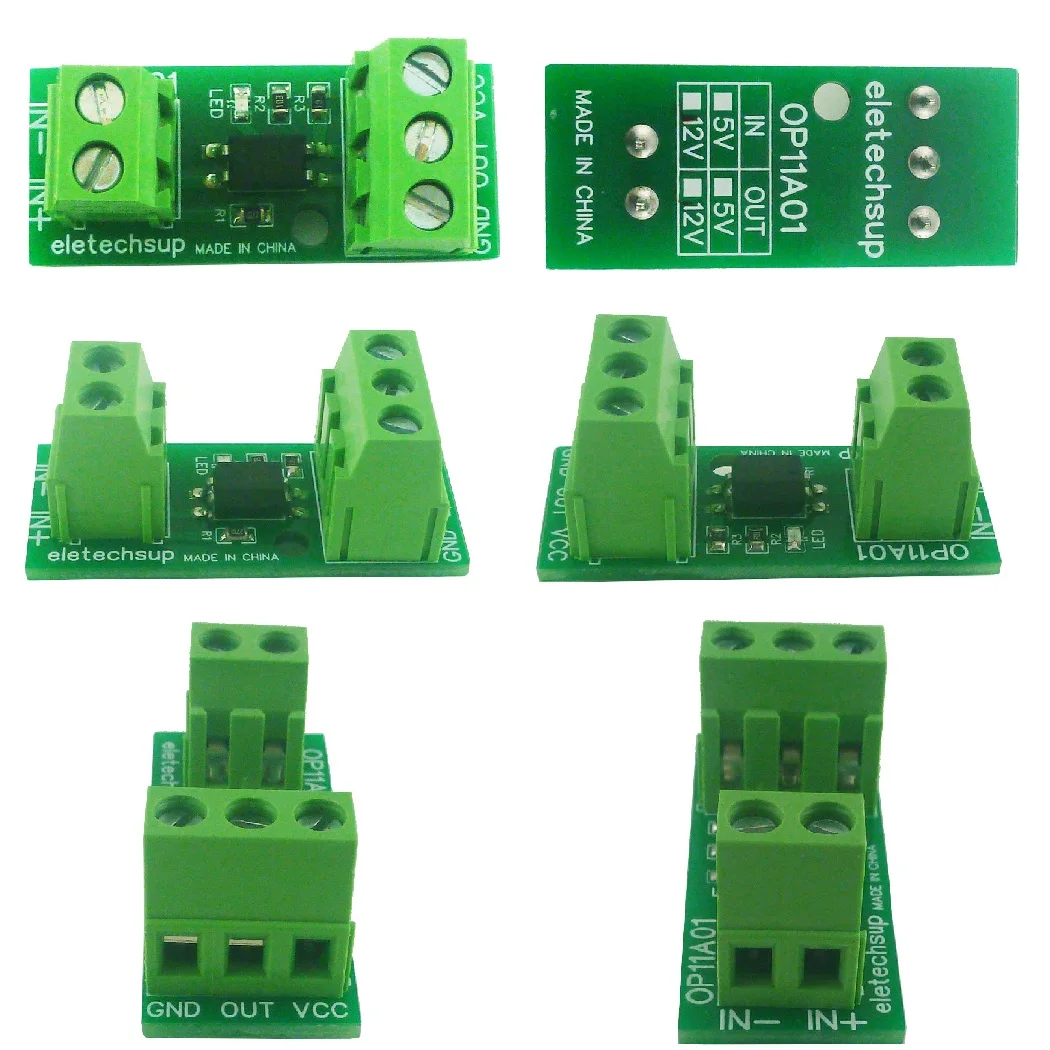

1 PCS 1CH DC 3-24V NPN PNP Signal Mutual Converter Module




Description:
This is a one-channel photoelectric isolation module, which can realize NPN/PNP mutual conversion, and can realize any level conversion of 3-24V. It is a reliable MCU PLC input and output port isolation module.

Input level : 3-8V/9-12V two versions
Output level: 3-8V/9-12V two versions
Working current: 3-8V out version 4-7MA; 9-24V out version 6-12MA
Input signal type: NPN/PNP
Output signal type: NPN/PNP
Input signal current: 3-8V version 4-15MA; 9-24V version 3-9MA
Output signal current: 3-8V version 1-3MA; 9-24V version 2-5MA
Isolation voltage: 3000V
Signal frequency: <10KHz
Working temperature: -40-110 degrees Celsius

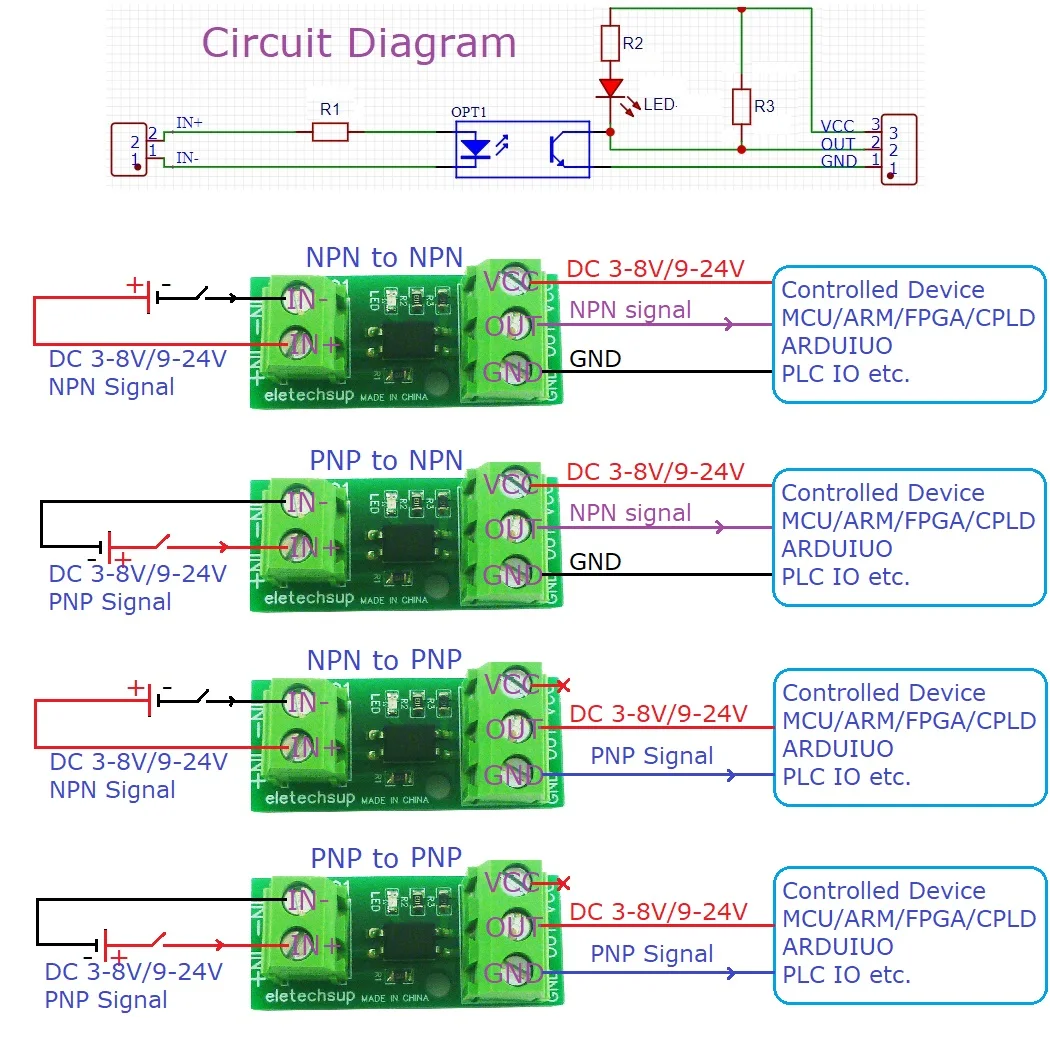

Conversion type: NPN to NPN; NPN to PNP; PNP to NPN; PNP to PNP
Size: 40*17*18MM
Weight: 8.2 grams
