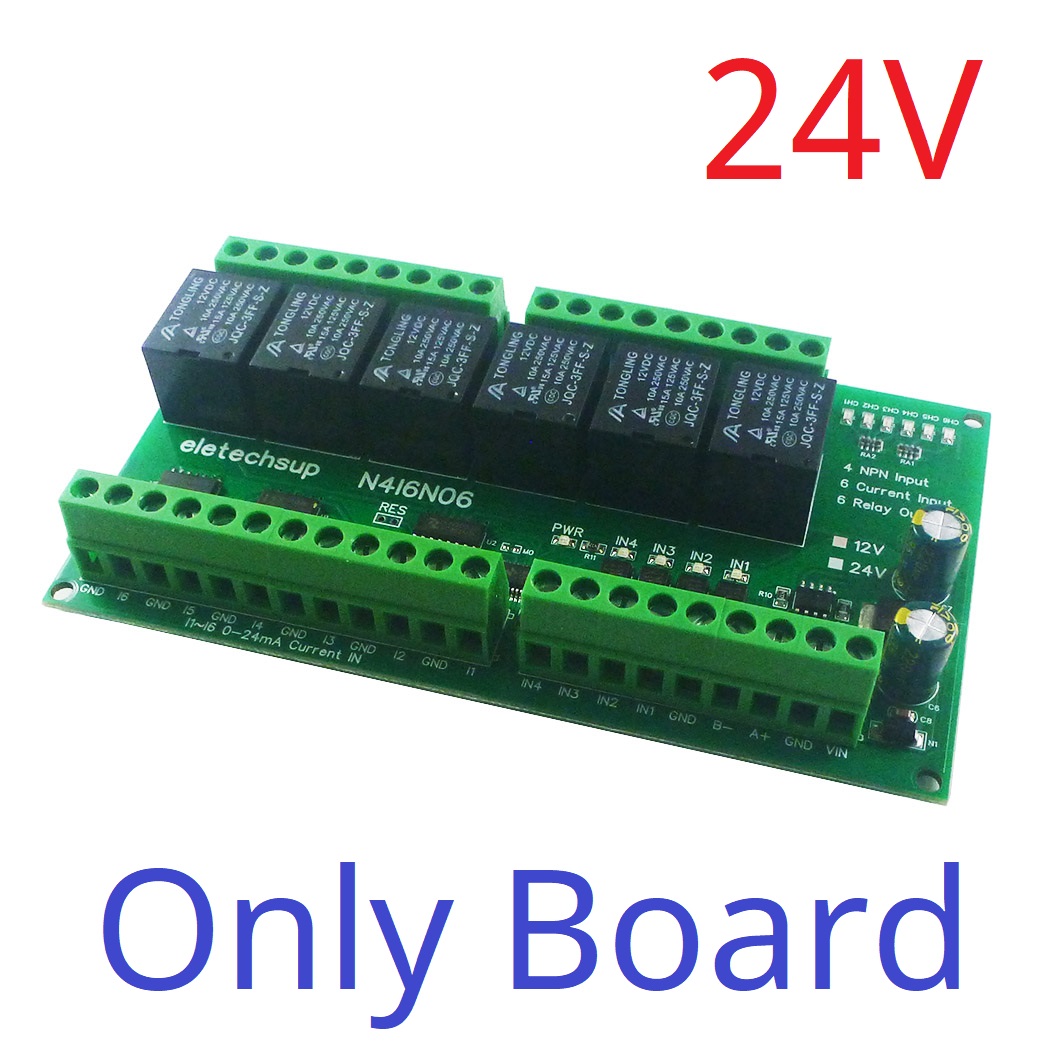

Features:
1 Working voltage: DC 12V (12V version); 24V (24V version)
2 Working current: standby 10MA, 1 relay ON 39MA, 2 relays ON 68MA, 3 relays ON 93MA, 4 relays ON 121MA,5 relays ON 150MA,6 relays ON 180MA
3 6-channel 0-20MA/4-20MA electric current analog input, 4-channel NPN photoelectric isolation switch input, 6-channel 10A relay switch output
4 Support standard Modbus RTU command, function code: write 05/06/15/16 read 01/02/03/04
5 With hardware restore factory settings function, with TVS anti-surge protection
6 In MODBUS command mode, it can support up to 64 devices in parallel
7 The default baud rate is 9600BPS, the baud rate can be selected by command 2400 4800 19200 38400 57600 115200BPS
8 You can choose the parity mode is no parity, even parity and odd parity
9 You can set the data sending return time, the maximum can be set to 1000ms
10 size 92 * 72 * 12mm (circuit board) 95 * 82*40mm (with rail box):
11 Weight: 93 grams (circuit board); 167 grams (with rail box)
12 Maximum load: 10A/250VAC, 10A/125VAC, 10A /30VDC, 10A /28VDC, 10A /12VDC
For more information, please contact me
DIN rail Box parameters:
Product model: UM72
Color:Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 126mm PCB boards
Net weight: 90g
Installation: DIN35 and C45 rail
Wiring Diagram:
6CH 0/4-20MA current analog input
4CH NPN photoelectric isolation switch input
6CH 10A relay switching output
