Function:

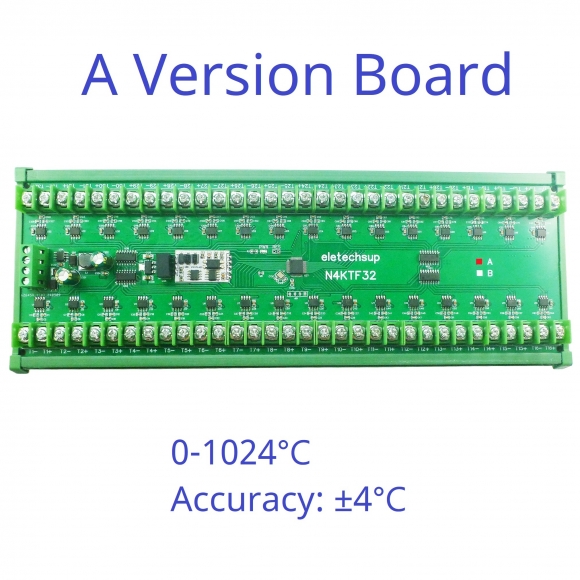

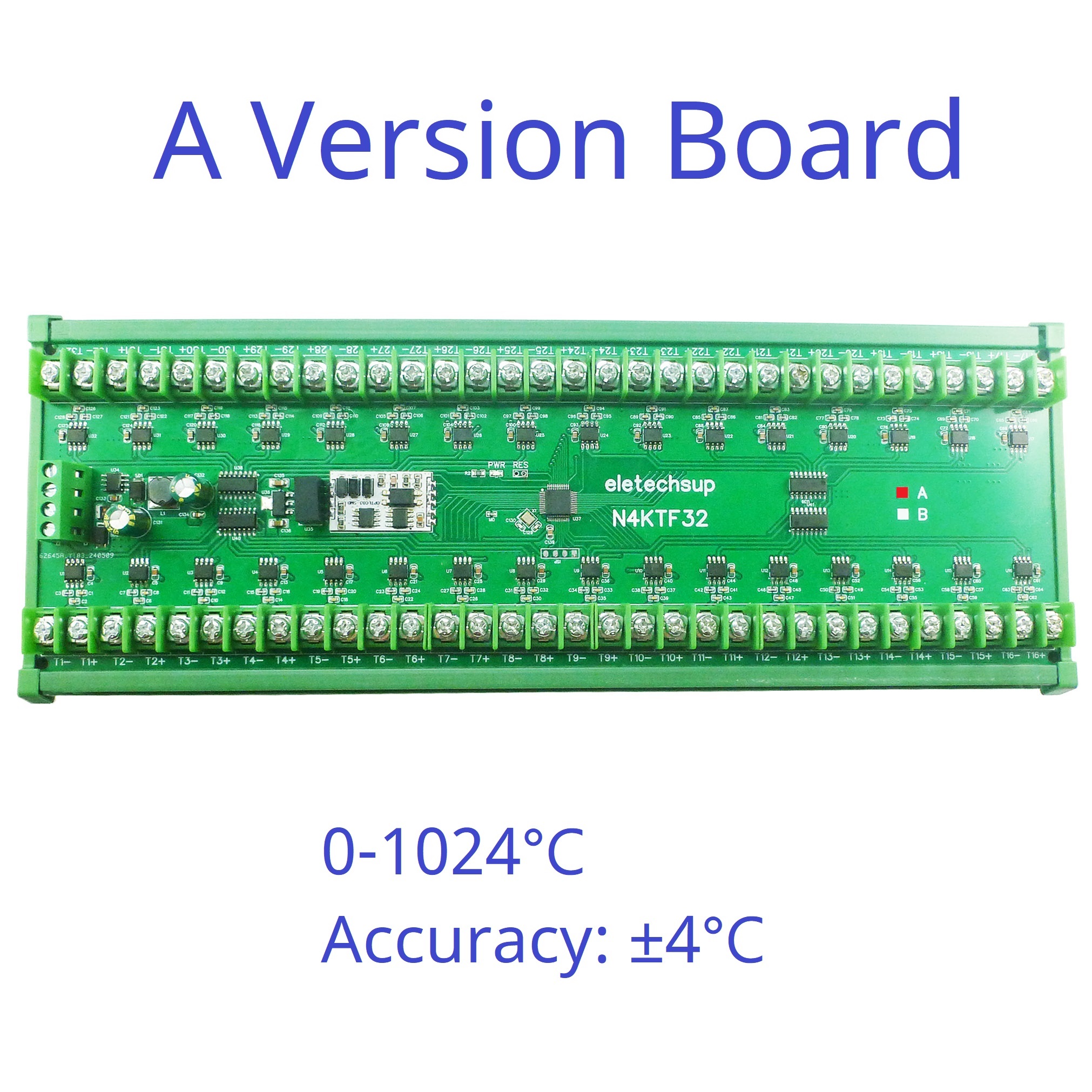

A version module:
Power supply : DC 7-25V (Recommended 12V 24V)
Working current: 20-30MA
Temperature measurement channel: 32
Temperature measurement chip: MAX6675ISA+
Temperature measurement range: 0-1024℃
Resolution: 12 bits, 0.25℃ resolution
Accuracy: The thermocouple has an accuracy of ±4℃( 0℃ to +700℃),Accuracy is poor.
MODBUS RTU protocol, 03/04 read command, 06/16 write command.
RS485 bus interface, Default baud rate 9600BPS
Compatible sensor: K-type thermocouple
Dimensions: 285 X 106 X 40MM(With DIN Housing)
Weight: 430grams(With DIN Housing)
B version module:
Power supply : DC 7-25V (Recommended 12V 24V)
Working current: 20-30MA
Temperature measurement channel: 32
Temperature measurement chip: MAX31855KASA+
Temperature measurement range: -200℃ to +1350℃
Resolution: 14 bits, 0.25°C resolution
Accuracy: The thermocouple has an accuracy of ±2℃( -200℃to +700℃),Accuracy is relatively good.
MODBUS RTU protocol, 03/04 read command, 06/16 write command.
RS485 bus interface, default baud rate 9600BPS
Compatible sensor: K-type thermocouple
Dimensions: 285 X 106 X 40MM(With DIN Housing)
Weight: 430grams(With DIN Housing)

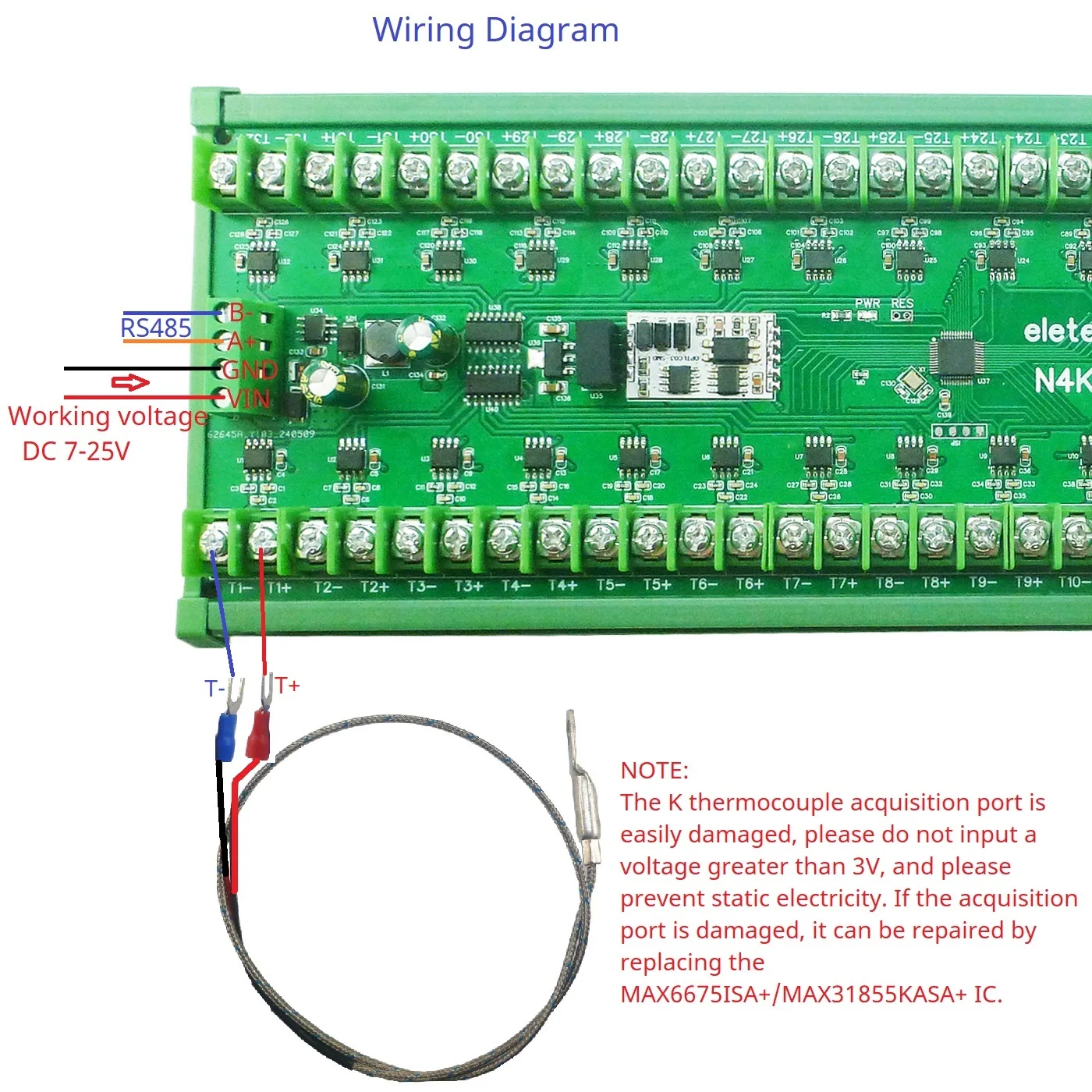

NOTE!!!
The K thermocouple acquisition port is easily damaged, please do not input a voltage greater than 3V, and please prevent static electricity. If the acquisition port is damaged, it can be repaired by replacing the MAX6675ISA+/MAX31855KASA+ IC.
How to use:1 Connect the power port to the power supply (DC 12V recommended)
2 Connect to RS485 bus
3 Connect the K thermocouple probe
4 Power-on test

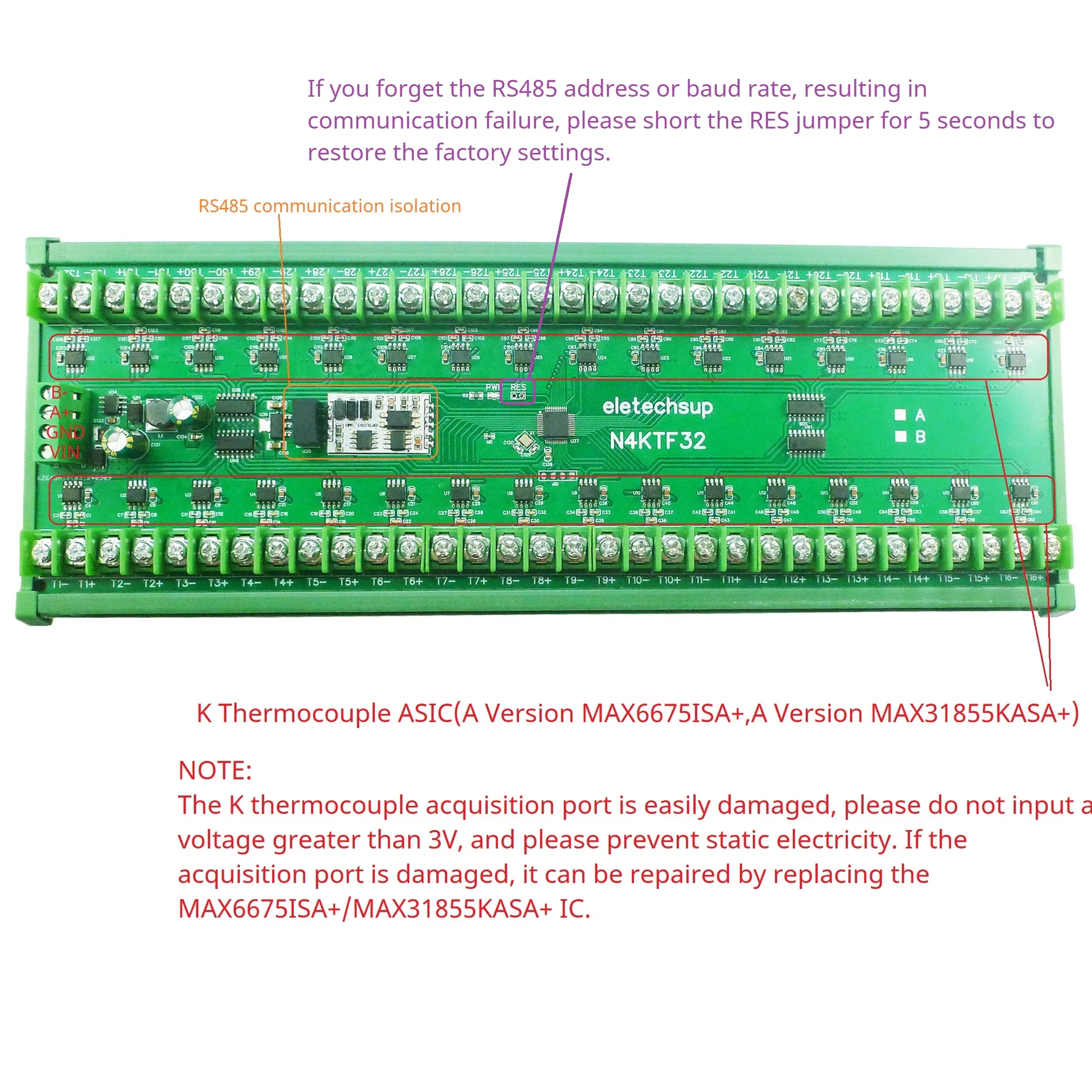

Note: The module will restore factory settings and automatically restart after the RES port is short-circuited for 5 seconds.

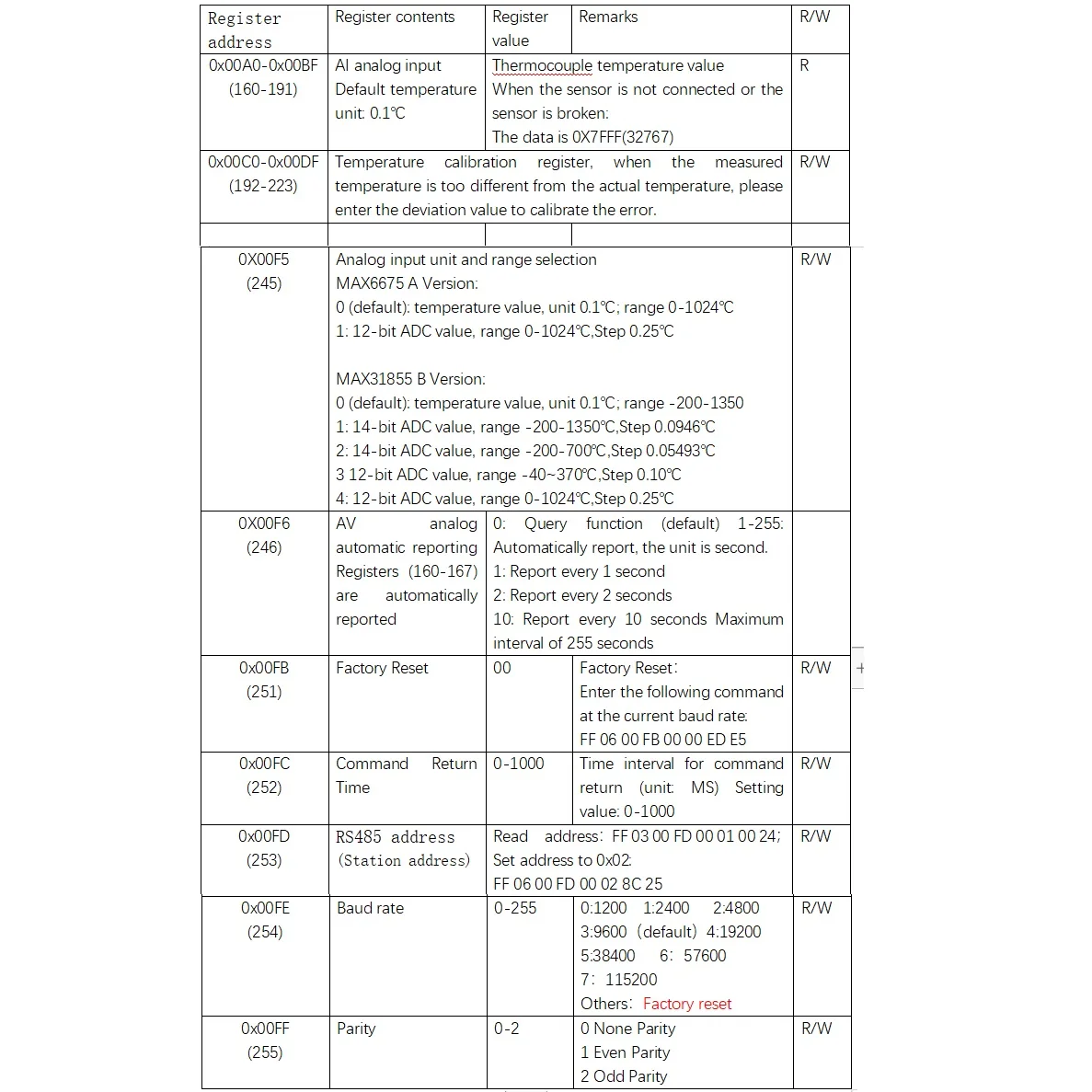

For protocol details, please refer to the ''N4KTF32 Modbus RTU Protocol''
