Product Name: ​ ​10 PCS Mini DC-DC 0.9-5V to DC 5V Step-UP Boost Voltage Converter Module for Breadboard Raspberry Pi LED LCD Motor



Packing list:

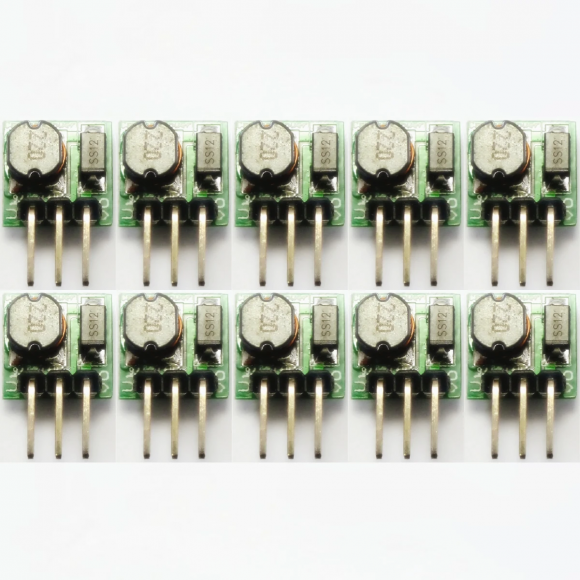

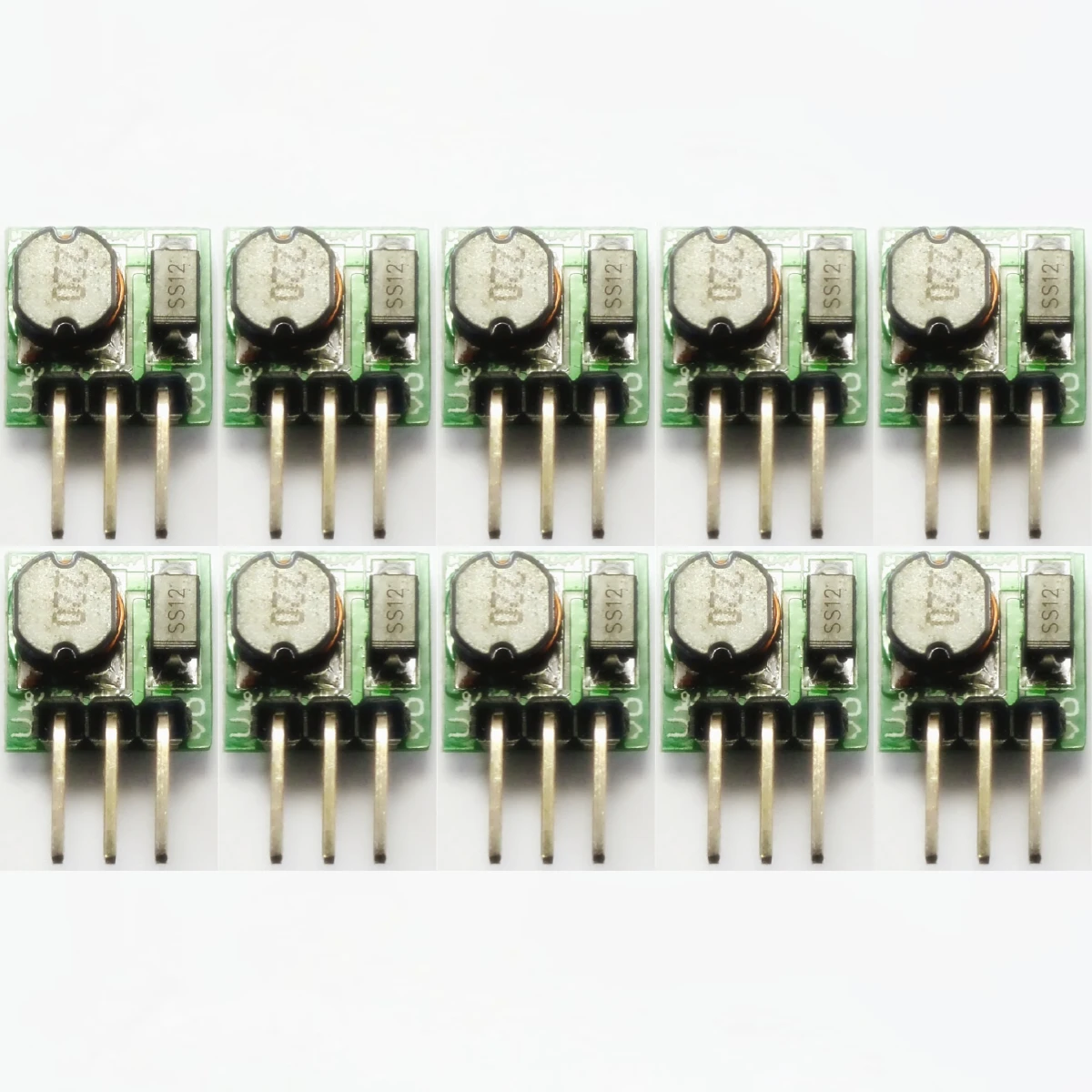

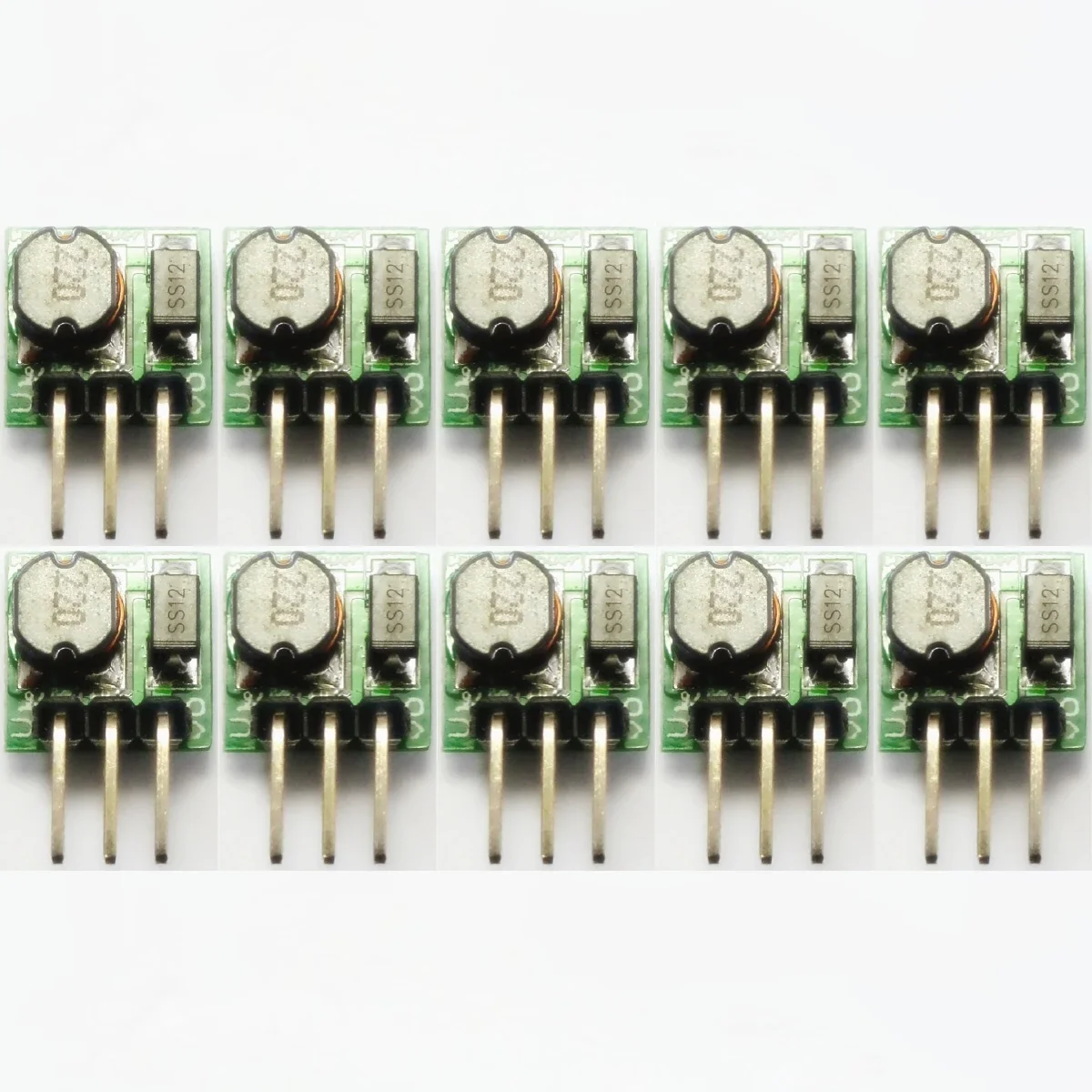

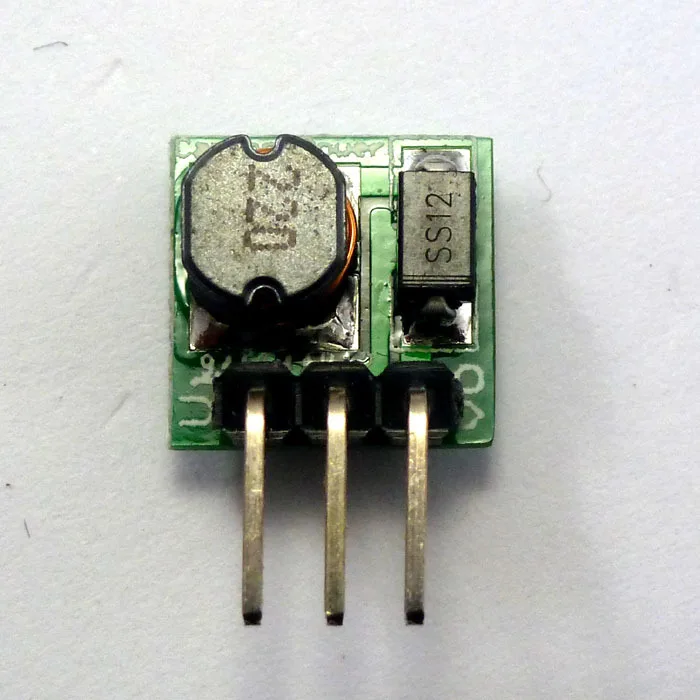

​10 PCS DC-DC 0.9V-5V TO 5V Step-UP Boost Voltage Converter Board




Description:

​Input voltage 0.9 ~ 5V, output 5V
​Maximum output current: 500 MA,

Start Voltage 0.9V, Output Current 10MA

​INPUT 1-1.5V, OUTPUT 5V 50-110MA;
​INPUT 1.5-2V, OUTPUT 5V 110-160MA;
​INPUT 2-3V, OUTPUT 5V 160-400MA;
INPUT above 3V, OUTPUT 5V 400-500MA;

DC-DC Boost module working frequency 150KHZ. efficiency <85%(Recommended high efficiency version).
2.54mm pin pitch, Arduiuo Breadboard friendly.
​Operating ambient temperature : -25~+85 Degrees Celsius ​ ​ ​ ​ ​Excluding Pin Size 11mm x 10.5mm x 7.5mm(Very small)
Weight : about 1.2g(Very light)




Applications:


Battery powered equipment
Wireless Module,NRF24L01 CC1101 CC2500 etc.
Development Board,FPGA/CPLD STM32
Ardiuno_uno mega2560 Breadboard Raspberry Pi
5V LED Lighting
​5V Low-power motor drive
Wireless communication equipment
​banana pi
Audio equipment

Attention :



This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range ​ ​2 Output power can not be greater than the maximum load for a long time ​ ​3 Input power must be greater than the output power, because the power consumption of the module itself
