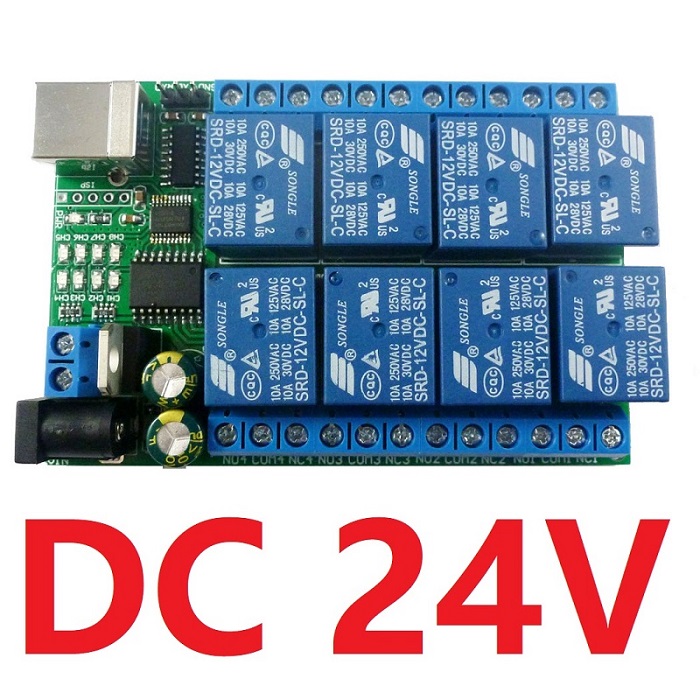

Package inlcuded:
2: (DC12V)Standby current (all relays closed) 12MA, 1 relay open 40MA, 2 relays open 67MA, 3 relays open 95MA,4 relays open 121MA,5 relays open 147MA,6 relays open 173MA, 7 relays open 198MA,8 relays open 223MA
3 UART serial port protocol, support two interfaces, USB_B female interface (CH340 chip), RS232 interface (TTL level)
4 USB interface supports Windows, Linux and MAX operating systems
5: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''All Relays Open'' ''All Relays Close'' 8 Commands
6 Two kinds of commands: AT command and 8-byte command, the two commands are automatically recognized, no need to switch.
7: Under the ''Delay'' command ,the maximum delay is 9999 seconds(Only AT command)
8 Size: 90 * 62 * 19.5mm
9 Weight: 115 g
10 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
Remote control, remote measurement system;
Wireless meter;
Access control;
Identification system;
Data collection;
IT household appliance;
Intelligence household appliance;
Baby monitoring system;
1 DC5V/12V24V control circuit,Wiring diagram below. ''LOAD'' may be camera,LED lights, fans, motors and other DC5V/12V24V equipment
