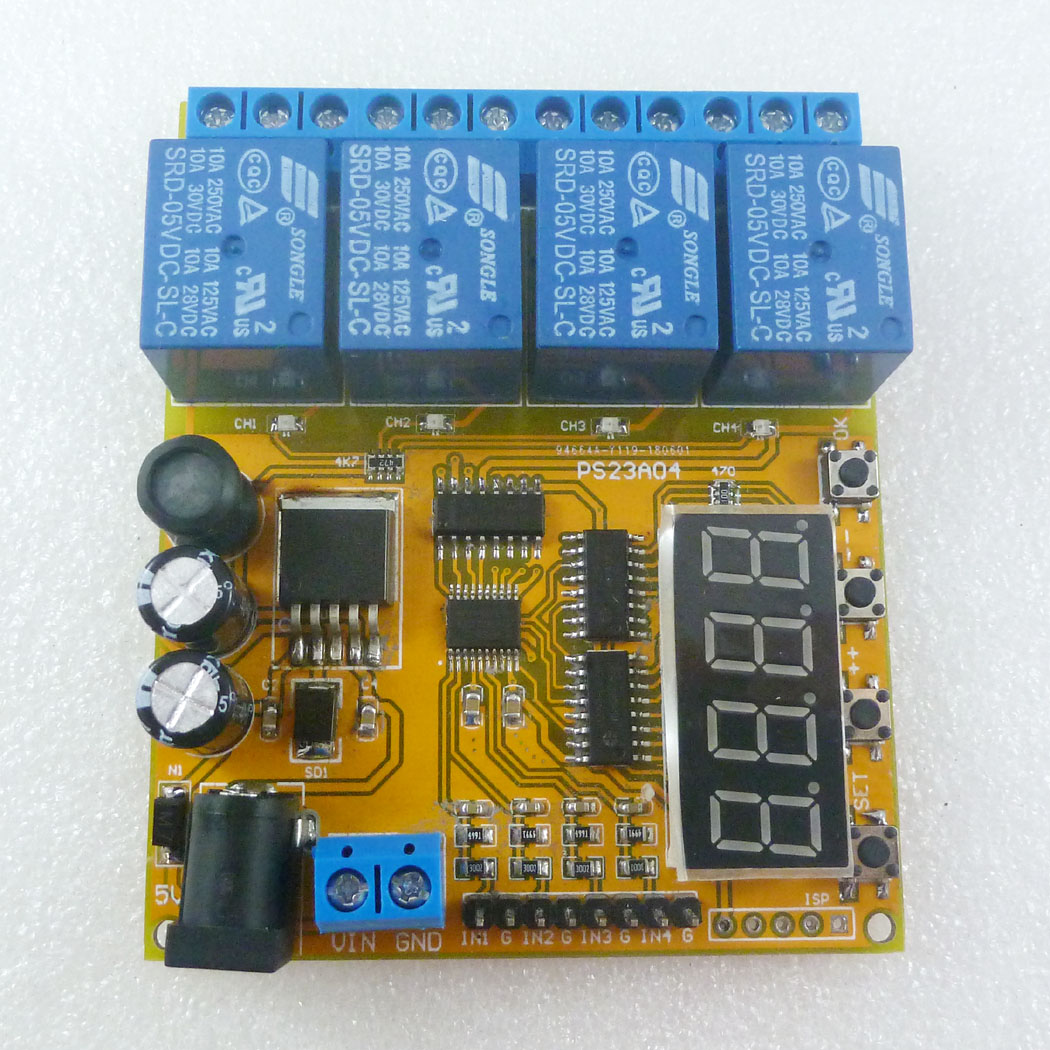

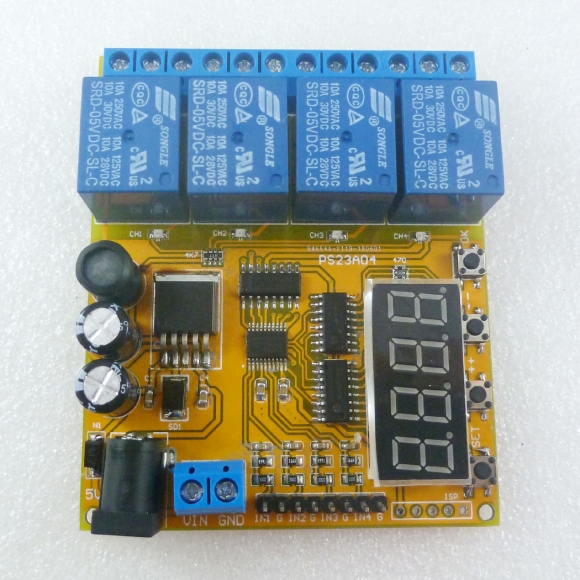

PS23A04 5V 12V 24V 4CH Multifunction Voltage Control Relay lithium Lead-acid Battery Charge And Discharge Protector

PS23A04 5V 12V 24V 4CH Multifunction Voltage Control Relay lithium Lead-acid Battery Charge And Discharge Protector

  • Model: PS23A04
  • Availability: In stock
  • Weight: 0.085Kg
$22.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns



Product Name:5V 12V 24V 4CH Multifunction Voltage Control Relay lithium Lead-acid Battery Charge And Discharge Protector

Package inlcuded:

1 PCS DC 5 12 24V 4 channel Multifunction voltage control relay board
Product Features:


1 Working power supply: dual power supply (two power supplies can not be powered at the same time): Power Supply 1 DC 7-25V; Power Supply 2 DC 5V (Power Supply 1 voltage has been calibrated, if you want to use Power Supply 2, please calibrate the voltage again)



2 Working current (DC 12V) Standby Current (all relays are off) 16MA, 1 relay ''open'' 50MA, 2 relays ''open'' 82MA, 3 relays ''open'' 115MA, 4 relays ''open'' 150MA



3 Measurement voltage: DC 0-25V; 1 0-25V analog control relay, 2 protection 1-25V battery charge, 3 protection 1-25V battery discharge, 4 4 channel 0-25V voltmeter. The battery refers to a lead-acid battery, a lithium battery, etc. that can be charged.



4 4-channel analog measurement and control, each channel's parameters are set independently, power-down save, measurement accuracy 0.1V.



5 Size: 80*66*18mm



6 Weight: about 76 grams



Note:



1 There are two power supply interfaces. Please do not use two power supplies at the same time. It is recommended to use only one power supply interfaces.



2 The maximum voltage that the analog input interface(IN1/IN2/IN3/IN4) can withstand is 30V. Please do not use it under overvoltage.



3 If the measured voltage is not accurate, please follow the ''PS23A04 Voltage calibration'' manual and the video calibration voltage.



Please contact us for more instructions.

Typical applications:

1 Classic wiring, 0-25V voltage control relay

2 1-25V battery (lead acid battery, lithium battery) charging protection
3 1-25V battery (lead acid battery, lithium battery) discharge protection













Please contact us for more details.



Product Name:5V 12V 24V 4CH Multifunction Voltage Control Relay lithium Lead-acid Battery Charge And Discharge Protector

Package inlcuded:

1 PCS DC 5 12 24V 4 channel Multifunction voltage control relay board
Product Features:


1 Working power supply: dual power supply (two power supplies can not be powered at the same time): Power Supply 1 DC 7-25V; Power Supply 2 DC 5V (Power Supply 1 voltage has been calibrated, if you want to use Power Supply 2, please calibrate the voltage again)



2 Working current (DC 12V) Standby Current (all relays are off) 16MA, 1 relay ''open'' 50MA, 2 relays ''open'' 82MA, 3 relays ''open'' 115MA, 4 relays ''open'' 150MA



3 Measurement voltage: DC 0-25V; 1 0-25V analog control relay, 2 protection 1-25V battery charge, 3 protection 1-25V battery discharge, 4 4 channel 0-25V voltmeter. The battery refers to a lead-acid battery, a lithium battery, etc. that can be charged.



4 4-channel analog measurement and control, each channel's parameters are set independently, power-down save, measurement accuracy 0.1V.



5 Size: 80*66*18mm



6 Weight: about 76 grams



Note:



1 There are two power supply interfaces. Please do not use two power supplies at the same time. It is recommended to use only one power supply interfaces.



2 The maximum voltage that the analog input interface(IN1/IN2/IN3/IN4) can withstand is 30V. Please do not use it under overvoltage.



3 If the measured voltage is not accurate, please follow the ''PS23A04 Voltage calibration'' manual and the video calibration voltage.



Please contact us for more instructions.

Typical applications:

1 Classic wiring, 0-25V voltage control relay

2 1-25V battery (lead acid battery, lithium battery) charging protection
3 1-25V battery (lead acid battery, lithium battery) discharge protection













Please contact us for more details.
