R4D3C32 24V C45 Rail Box DC 32ch DIN35 RS485 Modbus RTU Relay Board 485 Bus Remote Control Switch for LED Motor PLC PTZ Camera Smart

R4D3C32 24V C45 Rail Box DC 32ch DIN35 RS485 Modbus RTU Relay Board 485 Bus Remote Control Switch for LED Motor PLC PTZ Camera Smart

  • Model: R4D3C32_24V
  • Availability: In stock
  • Weight: 0.48Kg
$80.40
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns

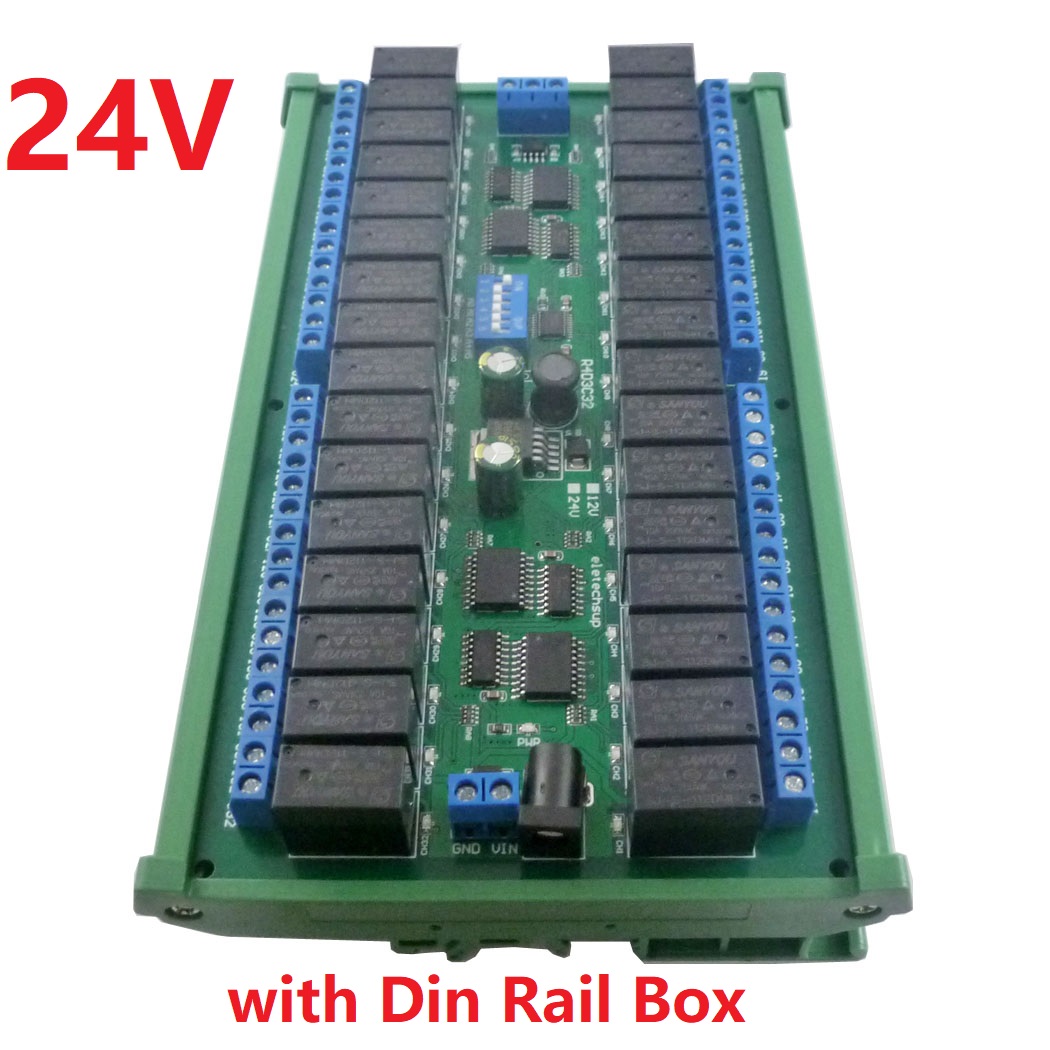

Product Name: DC12V 24V 32CH DIN35 C45 Rail Box Modbus RTU RS485 Bus Relay Module UART Serial Port For PLC LED Motor Smart Home PTZ Camera


Package inlcuded:
1 x DC 12V/24V 32 Channels Rail RS485 Modbus RTU Relay Module


Description:

1: 12V (12V version)/24V (24V version).

2: (12V version) Standby current (all relays closed) 8MA, all 32 relay open 1050mA

3: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands

4: MODBUS RTU command

5: Under the ''Delay'' command ,the maximum delay is 255 seconds

6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter.

7 Under the MODBUS command mode, it can support up to 64 devices in parallel

8 Size: 195 * 115 * 43mm(with DIN Rail Box)

9 Weight: 475g(with DIN Rail Box)

10 Maximum load: 10A / 250VAC, 10A / 125VAC

DIN rail Box parameters(DIN Rail Box Version):
Product model: UM100
Color: green
Width: suitable for PCB board width UM100(100mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 190 mm PCB boards
Net weight: 170g
Installation: DIN35 and C45 rail

For more information, please contact me

Application

Automated industry PLC
Smart Home,Home Automation ,Wiser Home;
IP PTC Camera
Security Monitoring
Identification system;
Motor FW & BW
​LED Home lighting
Door Lock
diy electronic

Typical applications:

MODBUS RTU command mode (HEX), you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control








Wiring Diagram:



1 DC 12V/24V control circuit,Wiring diagram below. ''LOAD'' may be camera,LED lights, fans, motors and other DC 12V/24V equipment





2 DC 1-110V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V/24V load, need another DC 12V power supply). ''LOAD'' may be LED lights, fans, motors Lights, fluorescent lights, solar water heaters and other DC AC equipmen





Test Software(We offer a demo video):
Serial HyperTerminal:

Modbus Poll
