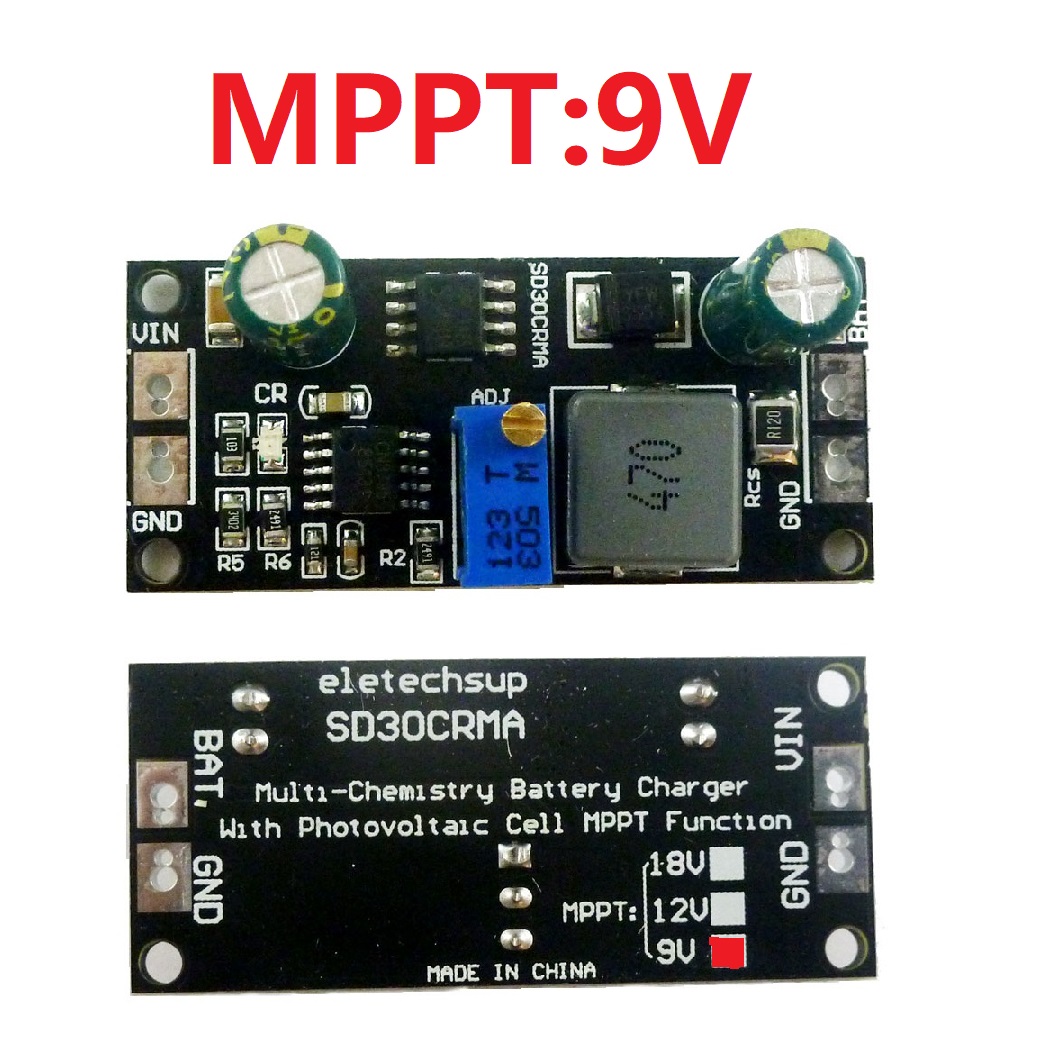

SD30CRMA 9V MPPT Controller 1A 3.2V 3.7V 3.8V 7.4V 11.1V 14.8V Lithium Battery Charger Module For 9V Solar Panels

SD30CRMA 9V MPPT Controller 1A 3.2V 3.7V 3.8V 7.4V 11.1V 14.8V Lithium Battery Charger Module For 9V Solar Panels

  • Model: SD30CRMA_9V
  • Availability: In stock
  • Weight: 0.009Kg
$6.56
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name: MPPT Controller 1A 3.2V 3.7V 3.8V 7.4V 11.1V 14.8V Lithium Battery Charger Module For 9V 12V 18V Solar Panels

Packing list:

1 PCS SD30CRMA MPPT Solar Controller1A 3.7-18.5V Lithium Battery Charger




Description:

1A 3.2-18.5V Multipurpose Battery Charger with With Photovoltaic Cell MPPT Function

Complete Charge Controller for Singleor Multi-cell Lithium ion, LiFePO4 or
Lithium Titanate Batteries

MPPT is 18V : Input DC 18-28V,Output DC 1.2-17V Adjustable(3.6V 4.2V 4.3V 4.35V 8.4V 12.6V 16.8V)
MPPT is 12V : Input DC 12-28V,Output DC 1.2-11V Adjustable(3.6V 4.2V 4.3V 4.35V 8.4V)
MPPT is 9V : Input DC 9-28V,Output DC 1.2-8V Adjustable(3.6V 4.2V 4.3V 4.35V 7.2V)
MPPT Disable(Change R5 to 12KΩ,it is recommended to buy DD28CRTA) :
Input DC 7-28V,Output DC 1.2-21V Adjustable(3.6V 4.2V 4.3V 4.35V 8.4V 12.6V 16.8V 21V)

The maximum charge current / output current is 1A, but you can change the current by changing the value of the Rcs resistor.

Can be used as Voltage Source when Battery is Absent

Automatic Conditioning of Deeply Discharged Batteries

Automatic Recharge

Led indicator : ''CR'' LED is charge status indicator


Battery Overvoltage Protection

Operating Ambient Temperature-40℃ to +85℃

Size : 45 x 20 x 15mm
Weight : 7.3g

If you need a chip brochure please contact me


Applications:

18V 12V 9V Solar battery charging
Car battery charging
Mobile Loadspeaker
Electric Bicycle Charger
UPS
Portable Industrial and Medical Equipment
Standalone Battery Chargers
Hand-held Equipment
Battery-Backup Systems
Portable Industrial and Medical Equipment
Standalone Chargers for Lithium ion,
LiFePO4 or Lithium Titanate Batteries
